Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Electrical Diagrams >> NVG 236-NP8 >> Transfer Case Encoder Motor and Shift Control Module

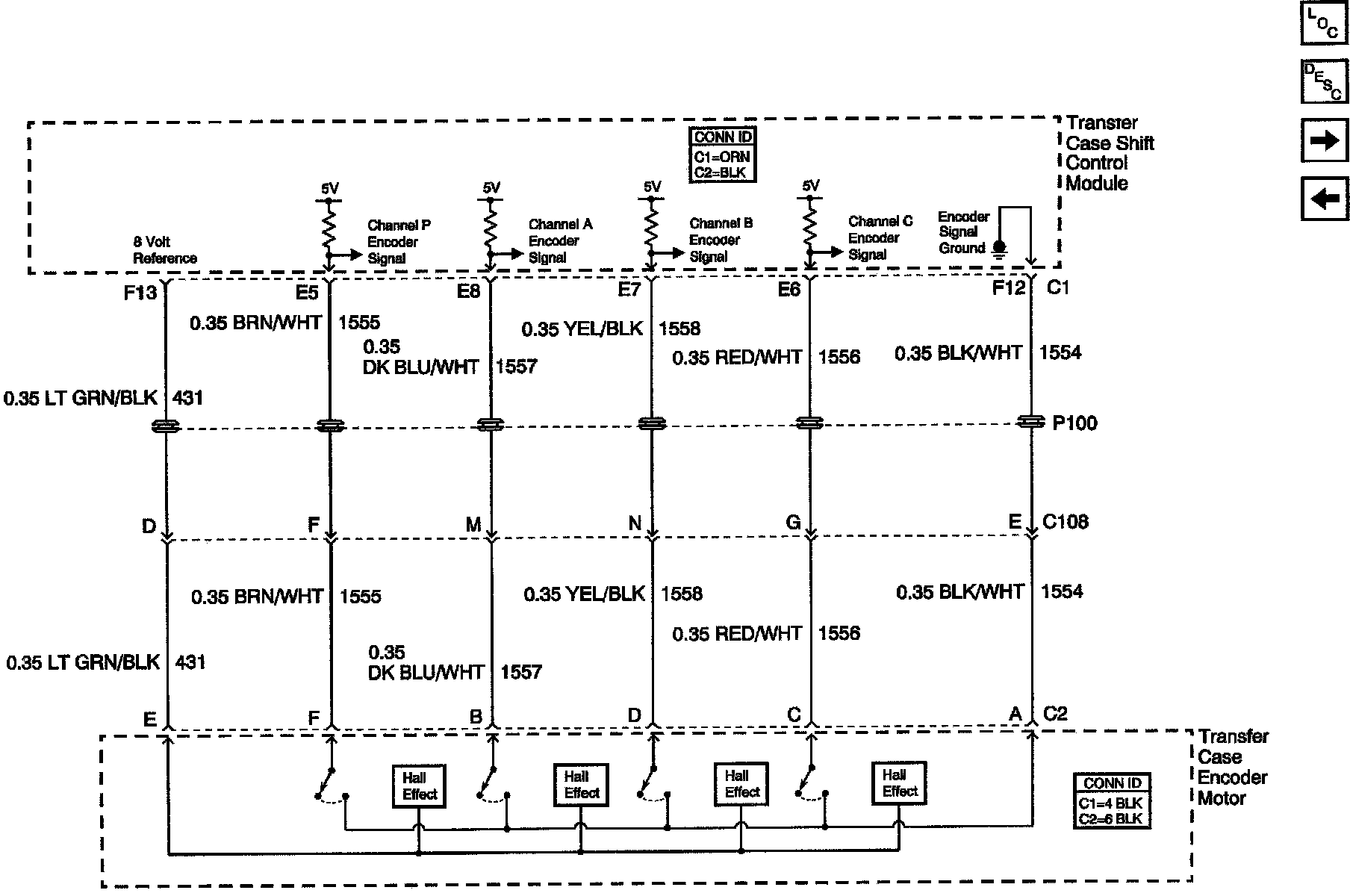

Transfer Case Encoder Motor and Shift Control Module
