Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

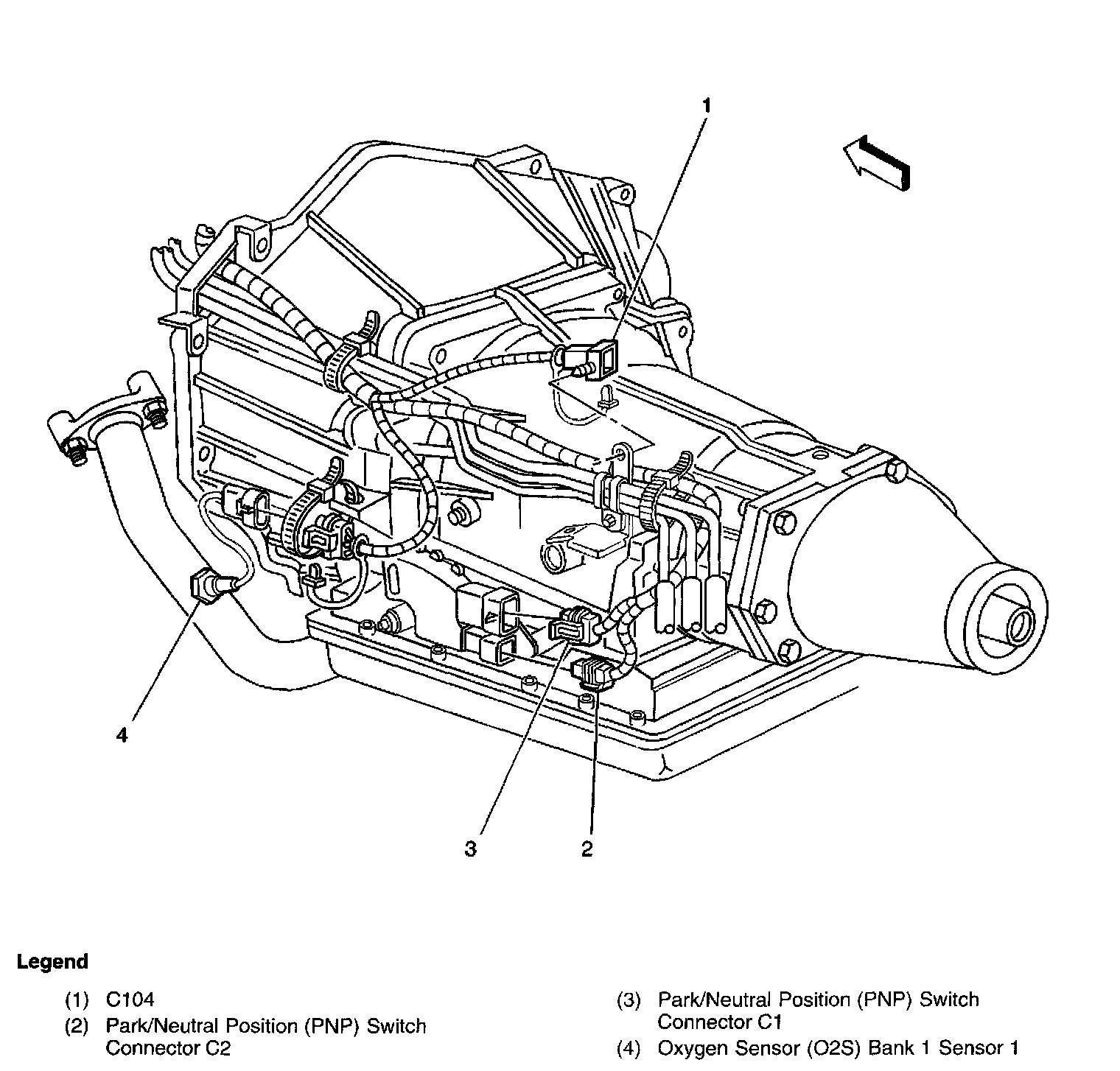

Park/Neutral Position (PNP) Switch (w/ A/T) (4.3L Shown, 2.2L Similar:
