Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Interrupt Connector/Switch >> Locations

Power Interrupt Connector/Switch: Locations

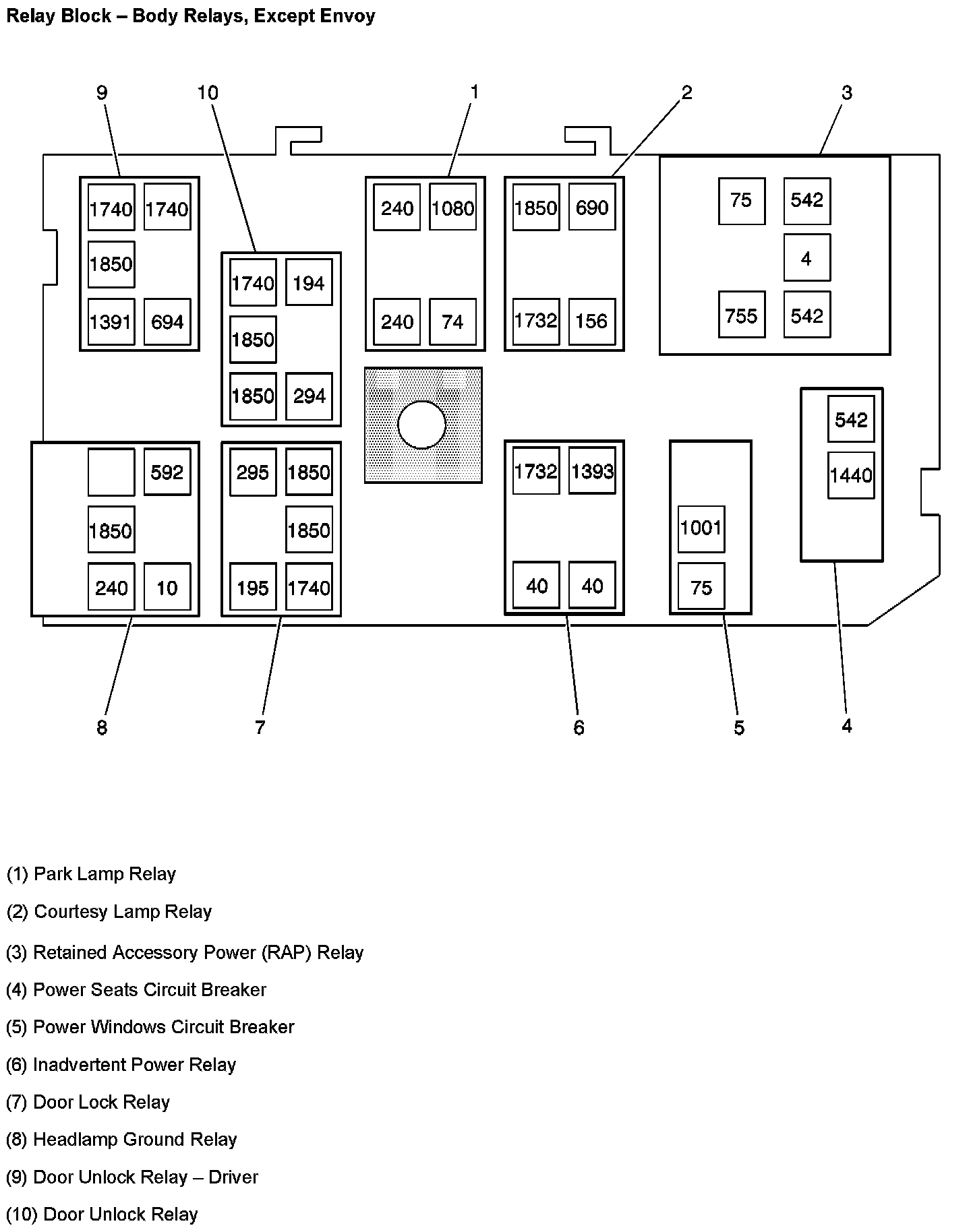

Relay Block - Body Relays, Except Envoy:
