Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Steering Column - Standard - Column Shift

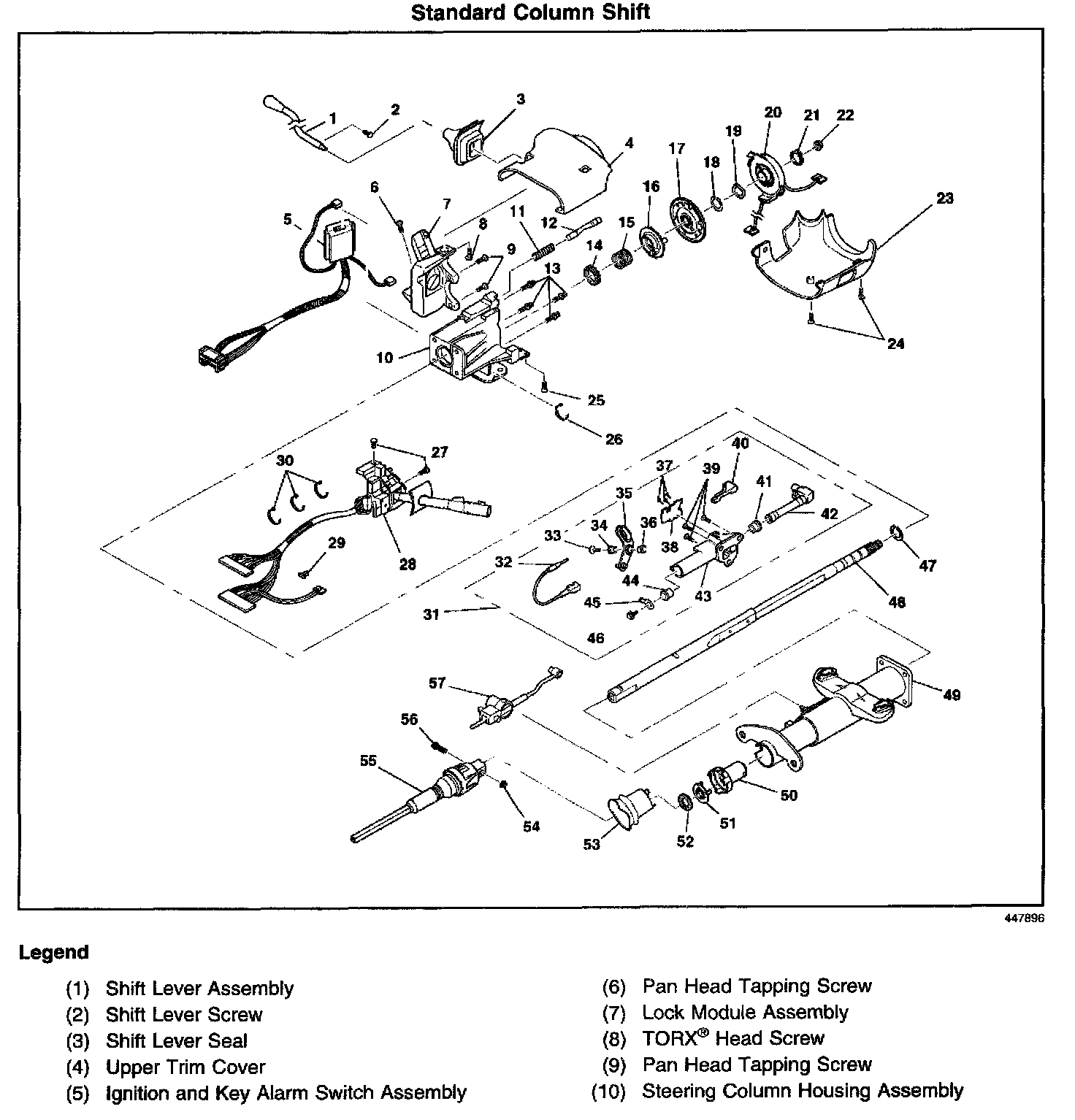

Steering Column - Standard - Column Shift

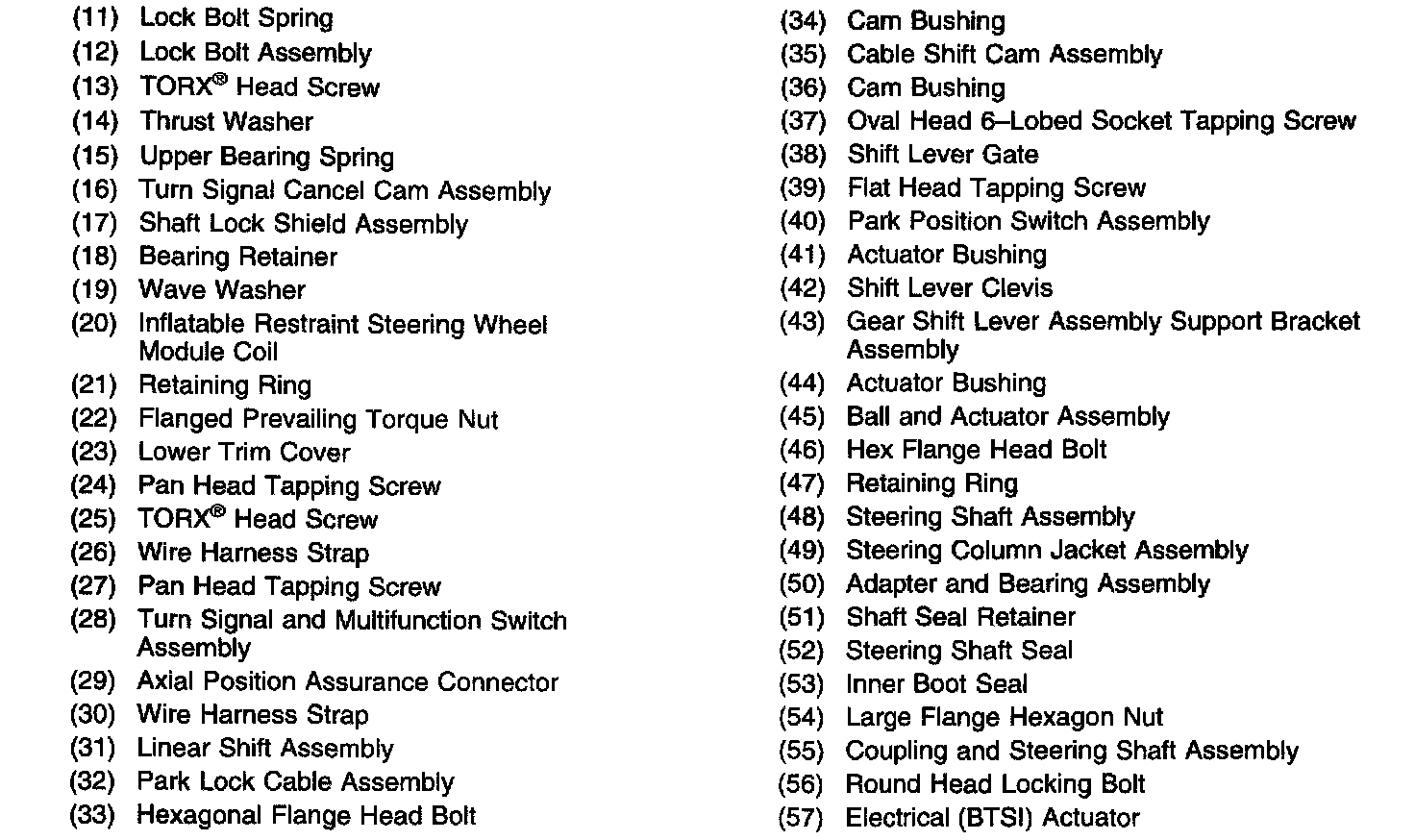

Locations View Part 1:



Locations View Part 2:
