Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Oil Pump Assembly

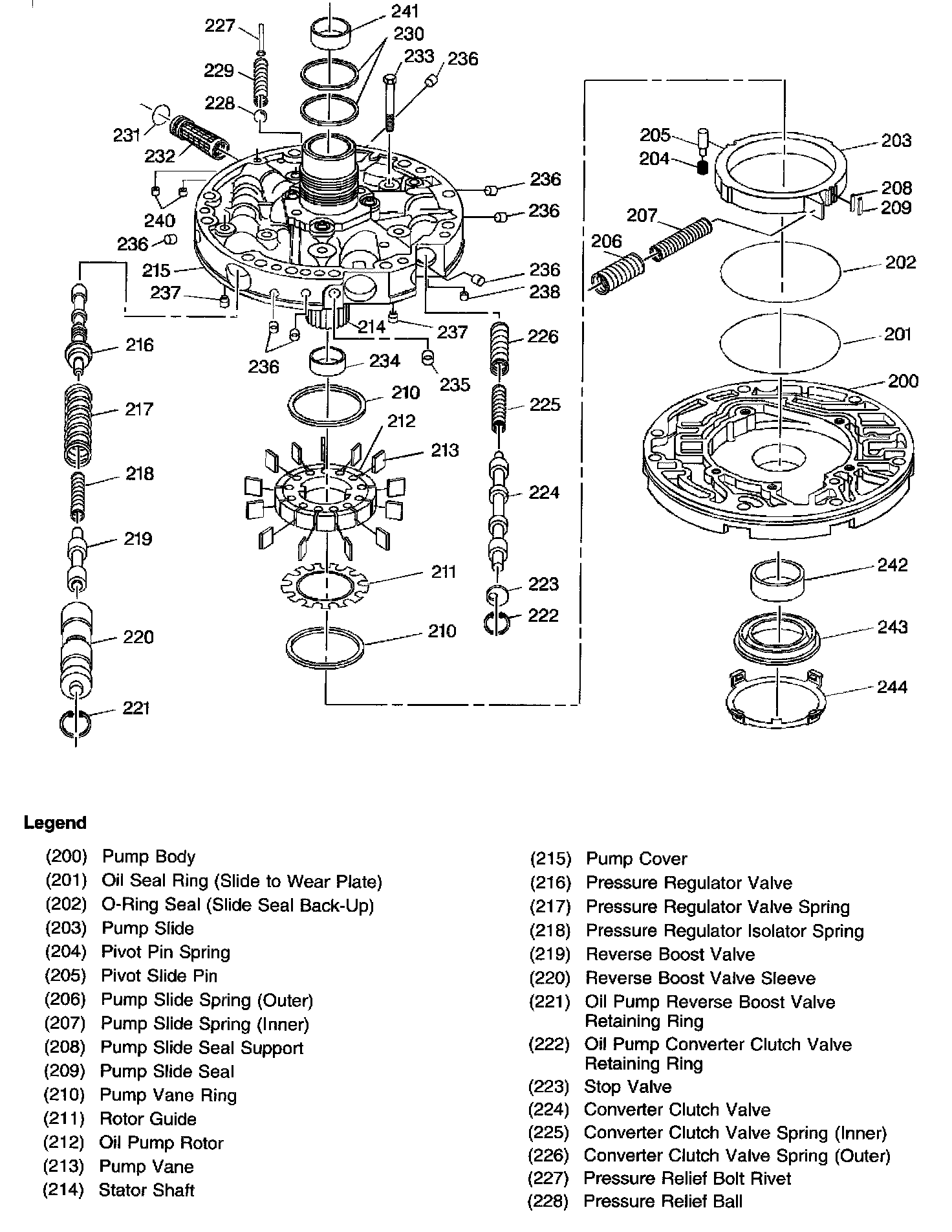

Oil Pump Assembly

Part 2 Of 2:



Part 1 Of 2:
