GMC
>>
2003
>>
Envoy 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

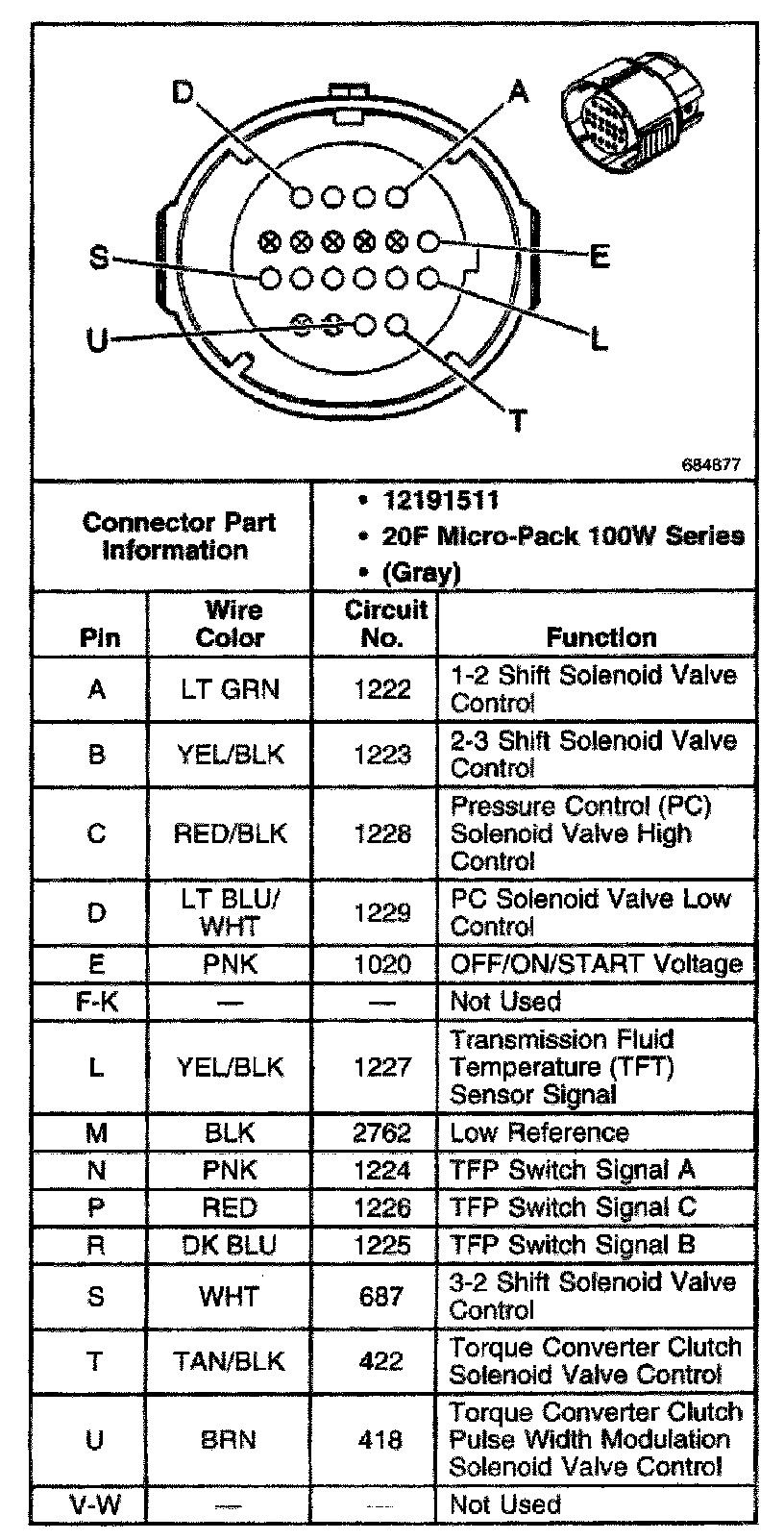

AT Inline 20-Way Connector, Engine Side:

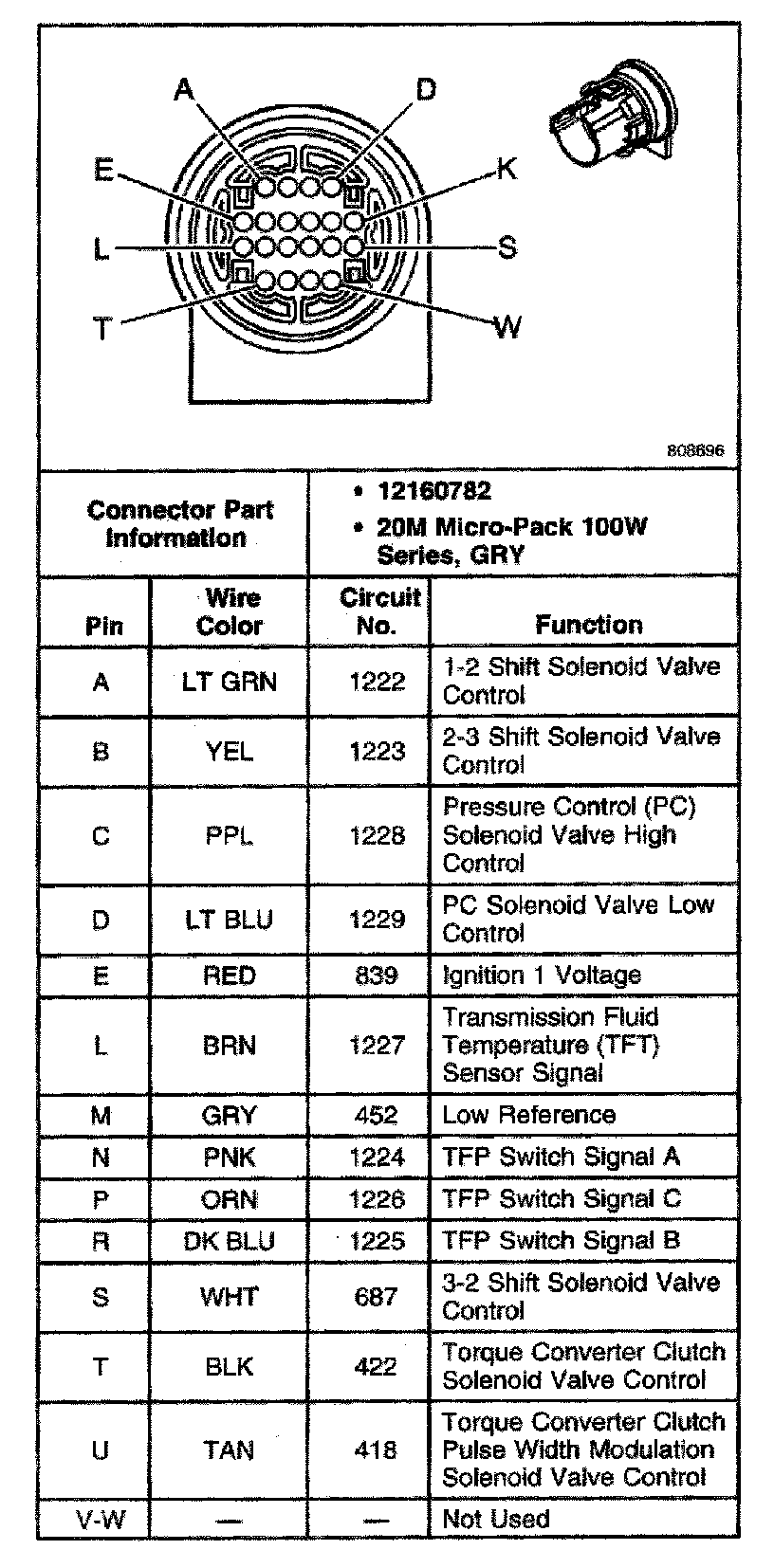

AT Inline 20-Way Connector, Transmission Side:
