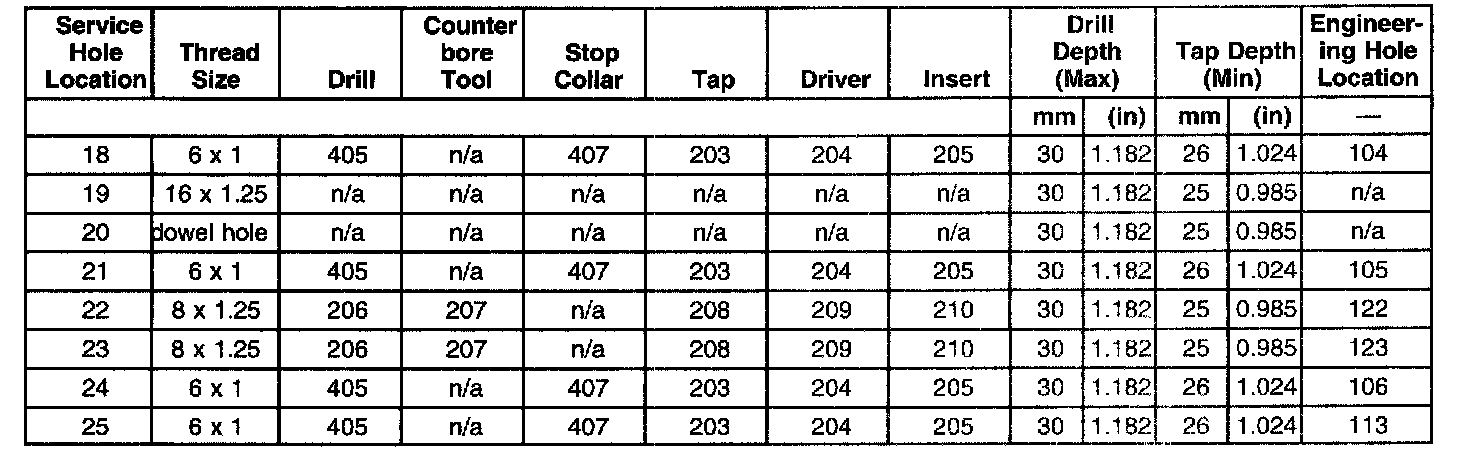

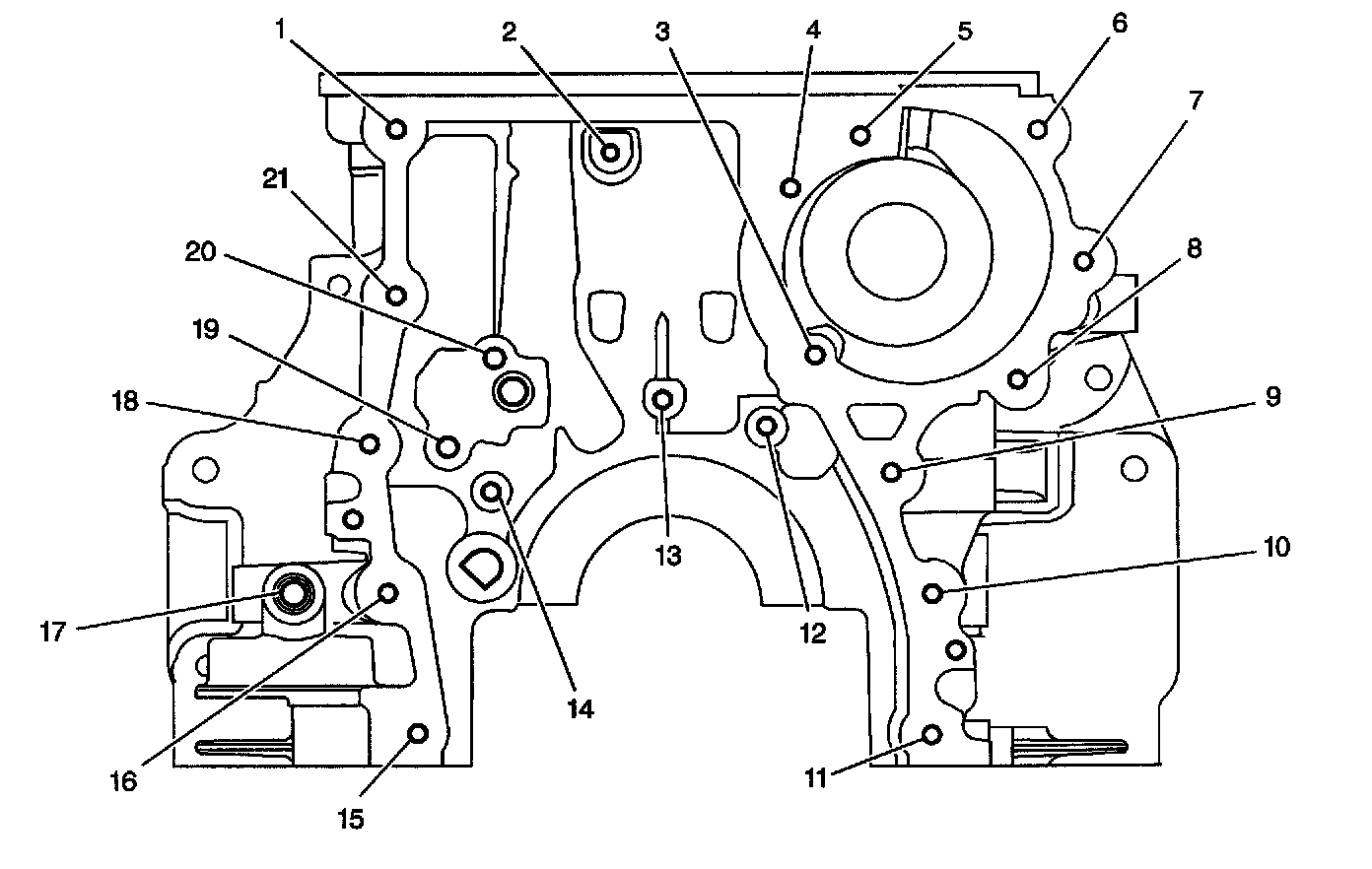

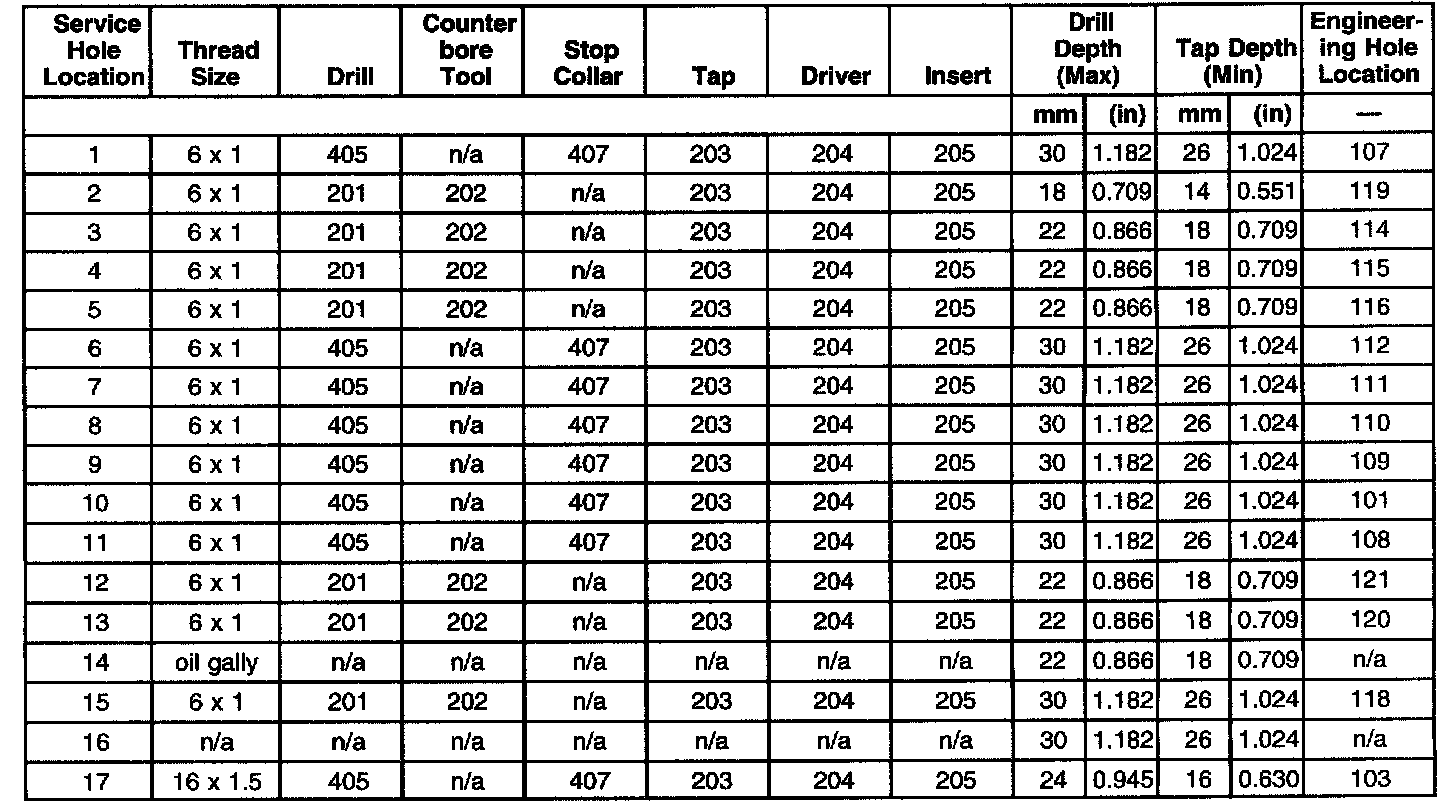

Home >> GMC >> 2003 >> Envoy 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Specifications >> Thread Repair Specifications >> Engine Block - Front View
