GMC
>>
2002
>>
Safari Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>

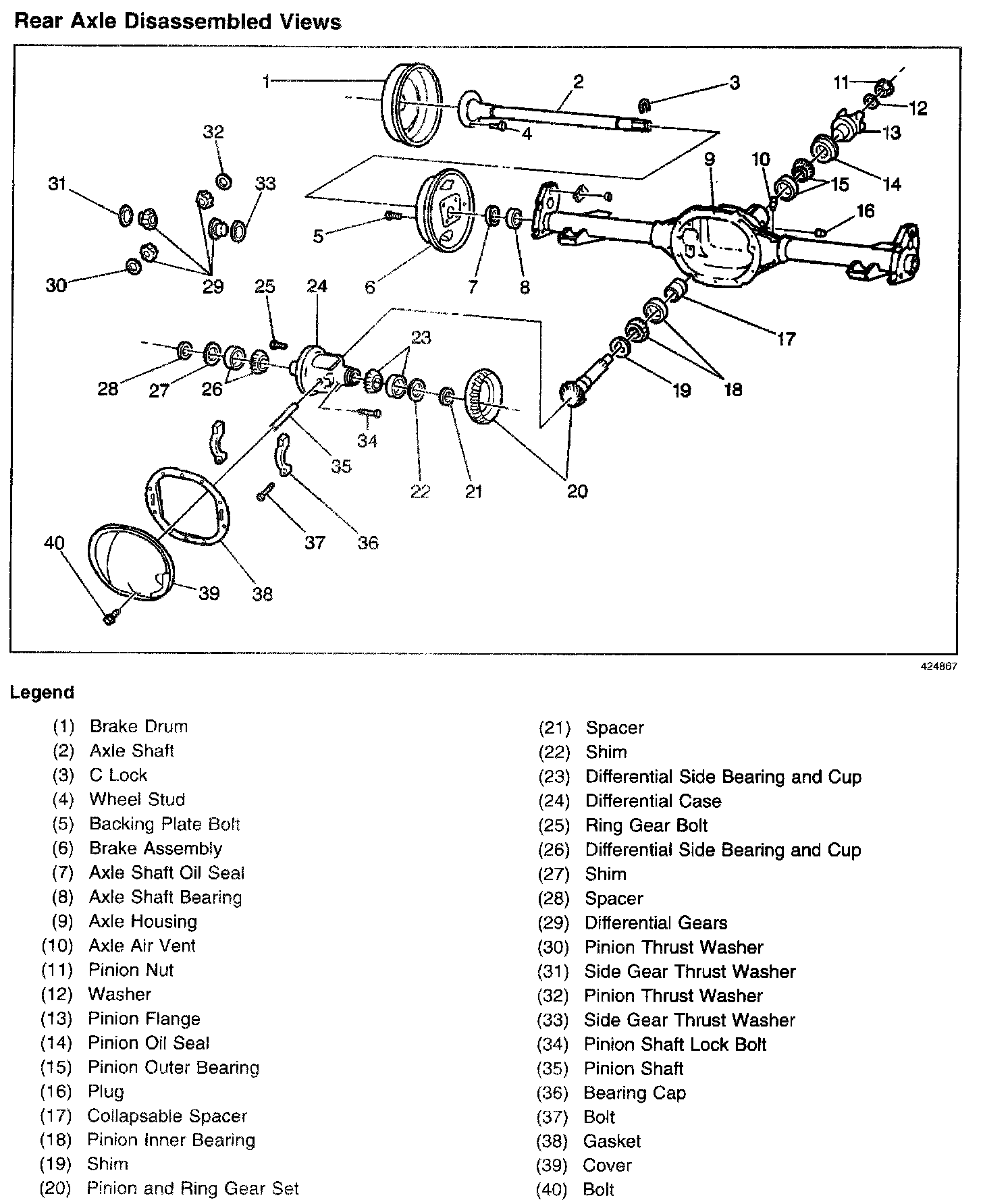

Rear Axle Disassembled Views
Rear Axle Disassembled Views
Locations View:
