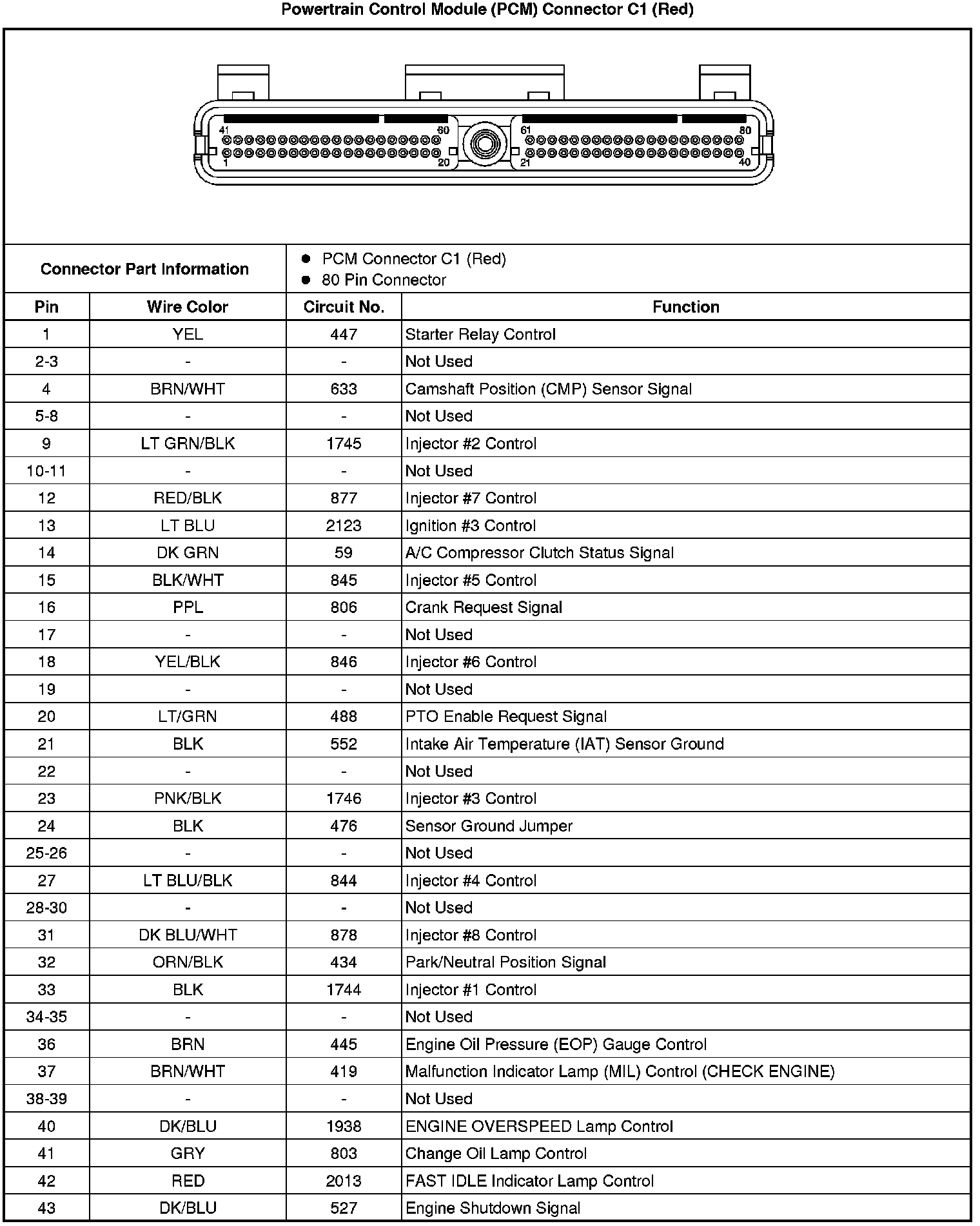

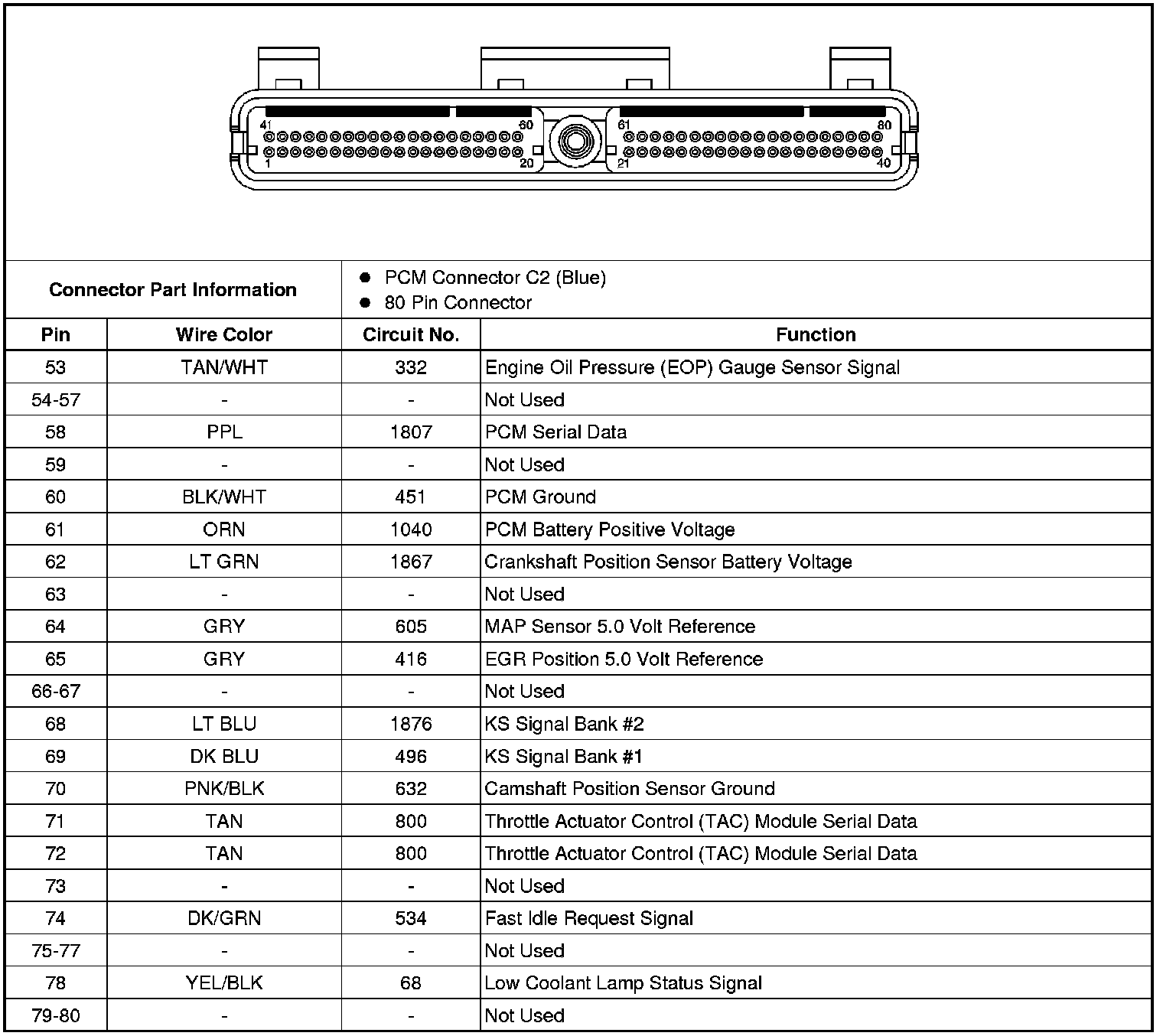

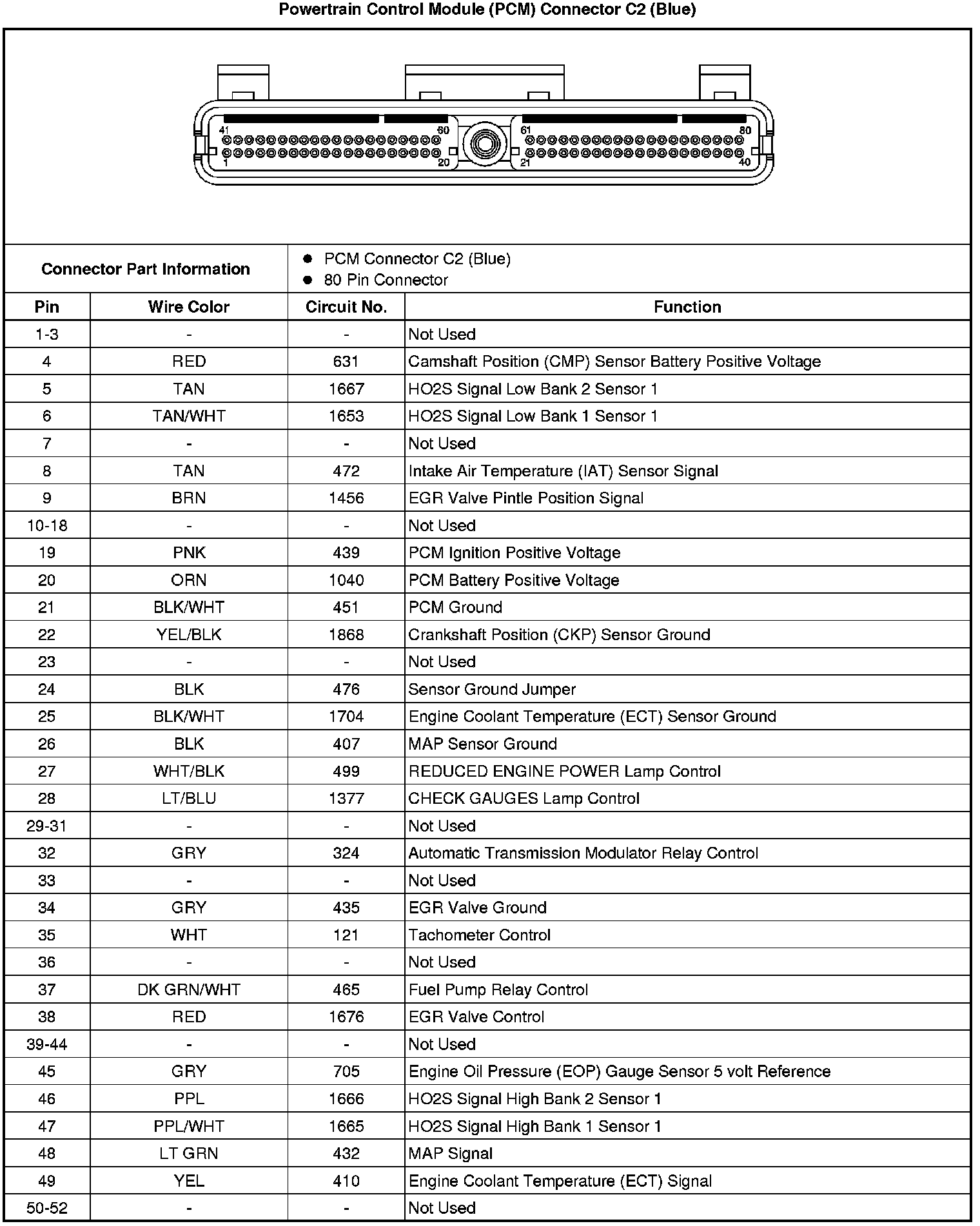

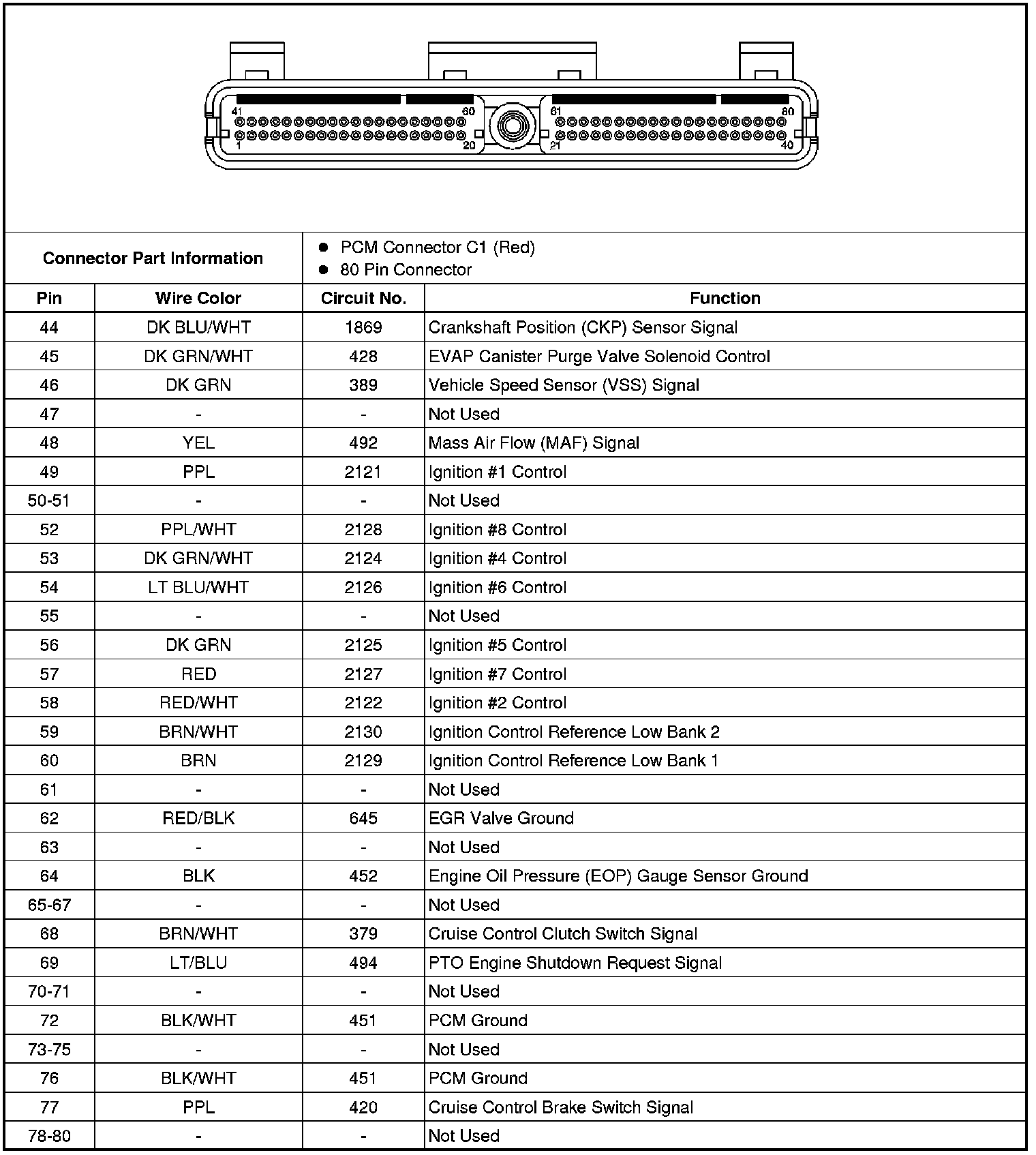

Powertrain Control Module Connector End Views
Powertrain Control Module Connector End Views
Powertrain Control Module Connector End Views
