GMC
>>
2000
>>
C 6500 TopKick V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

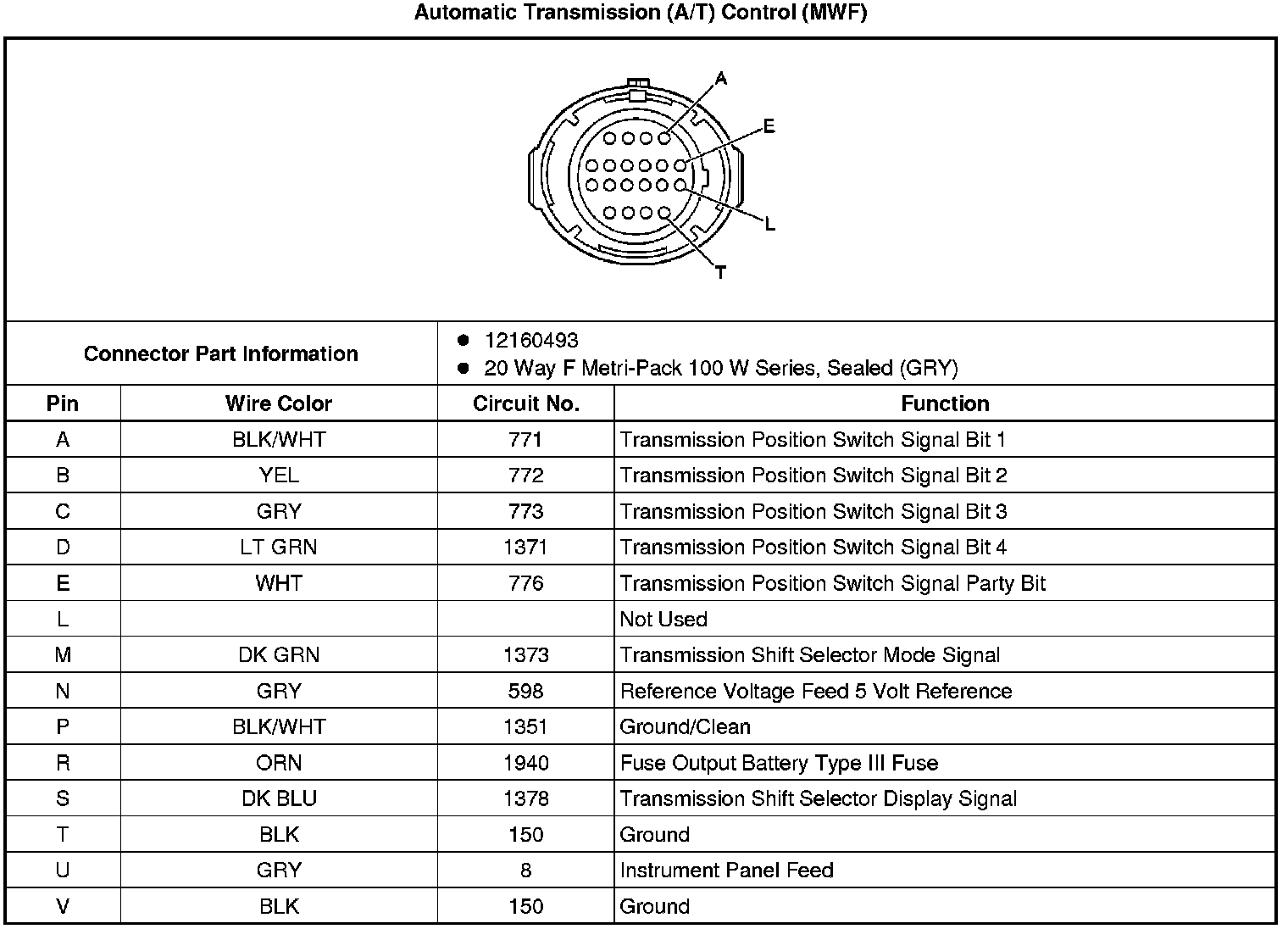

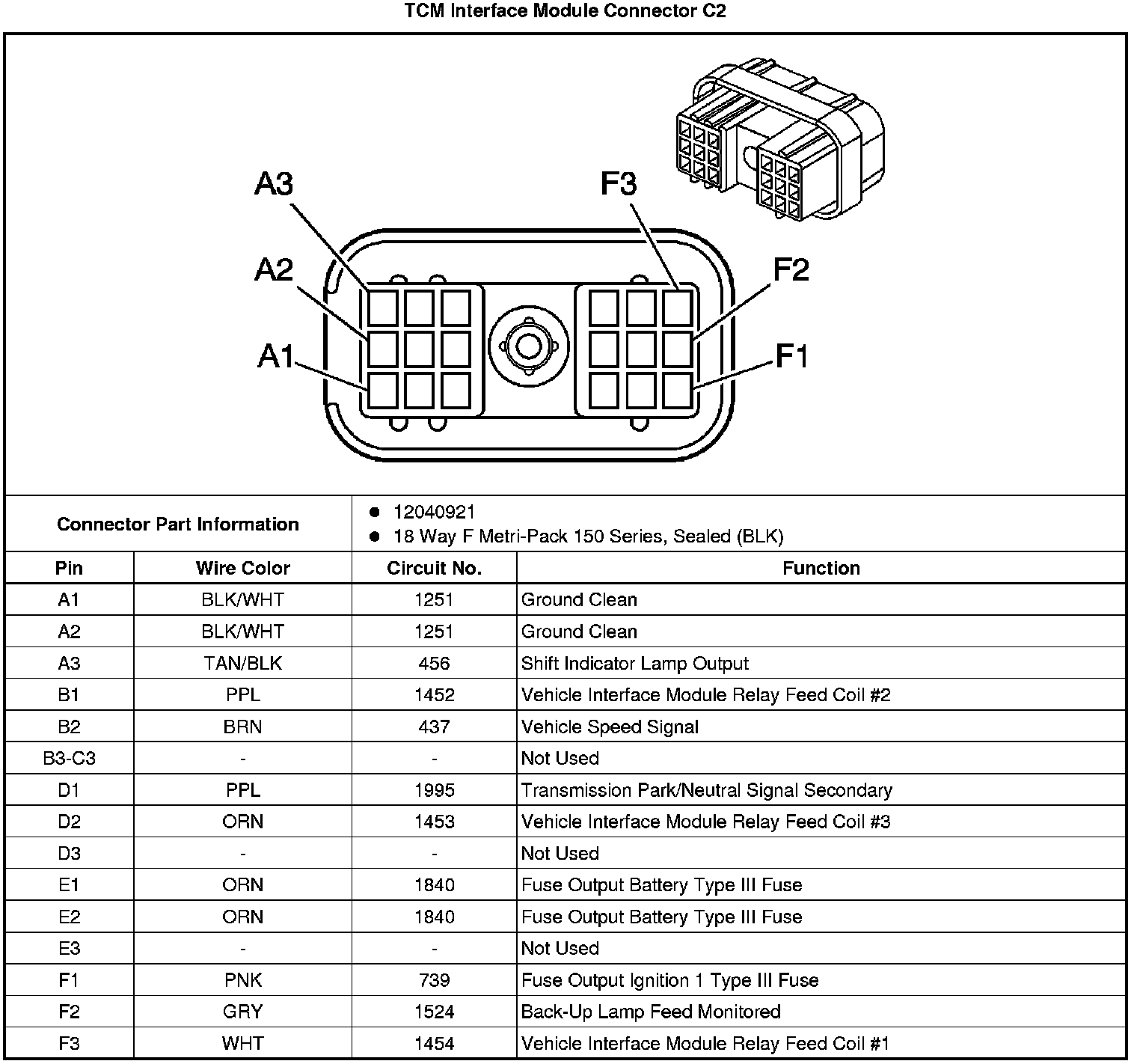

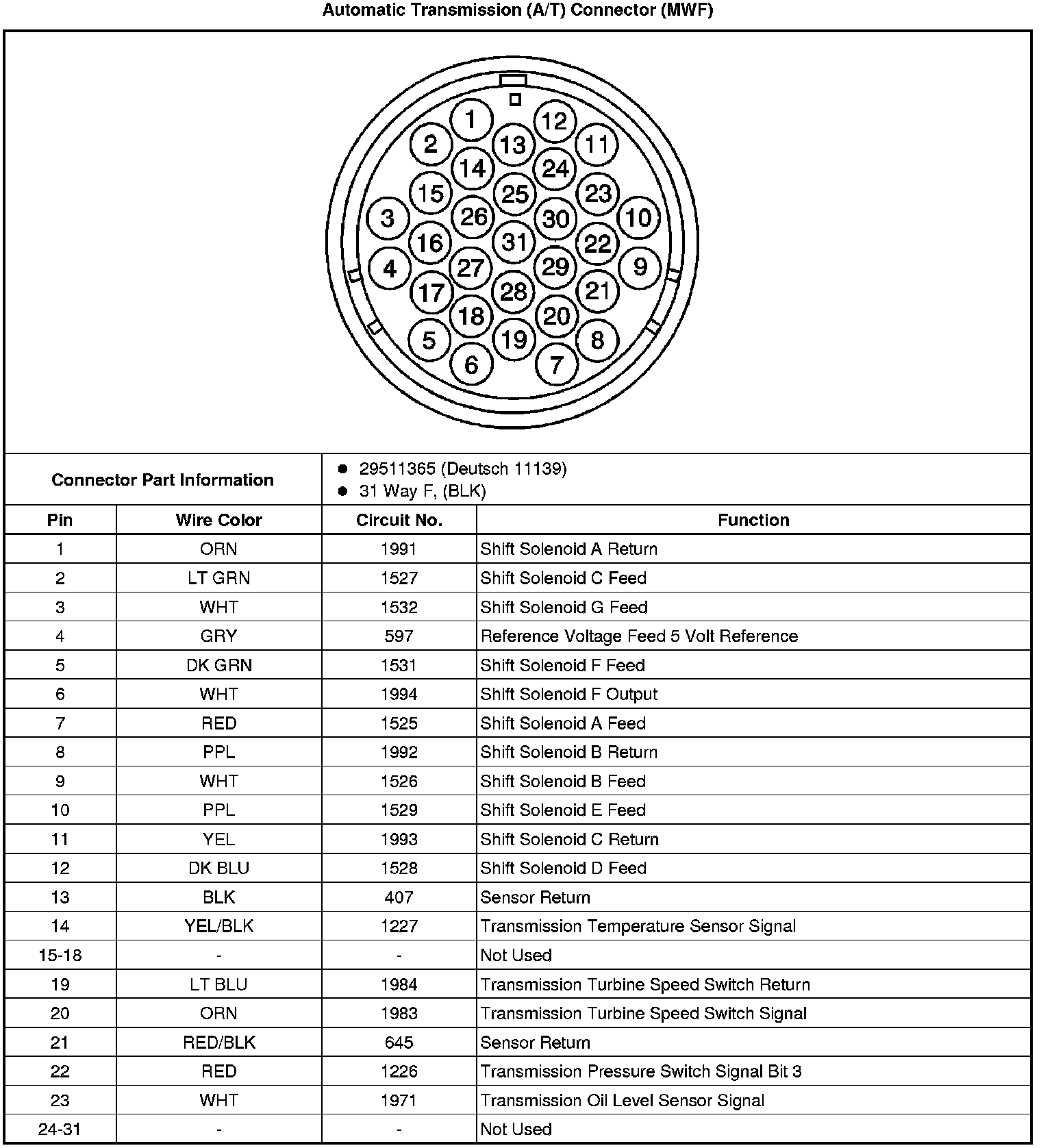

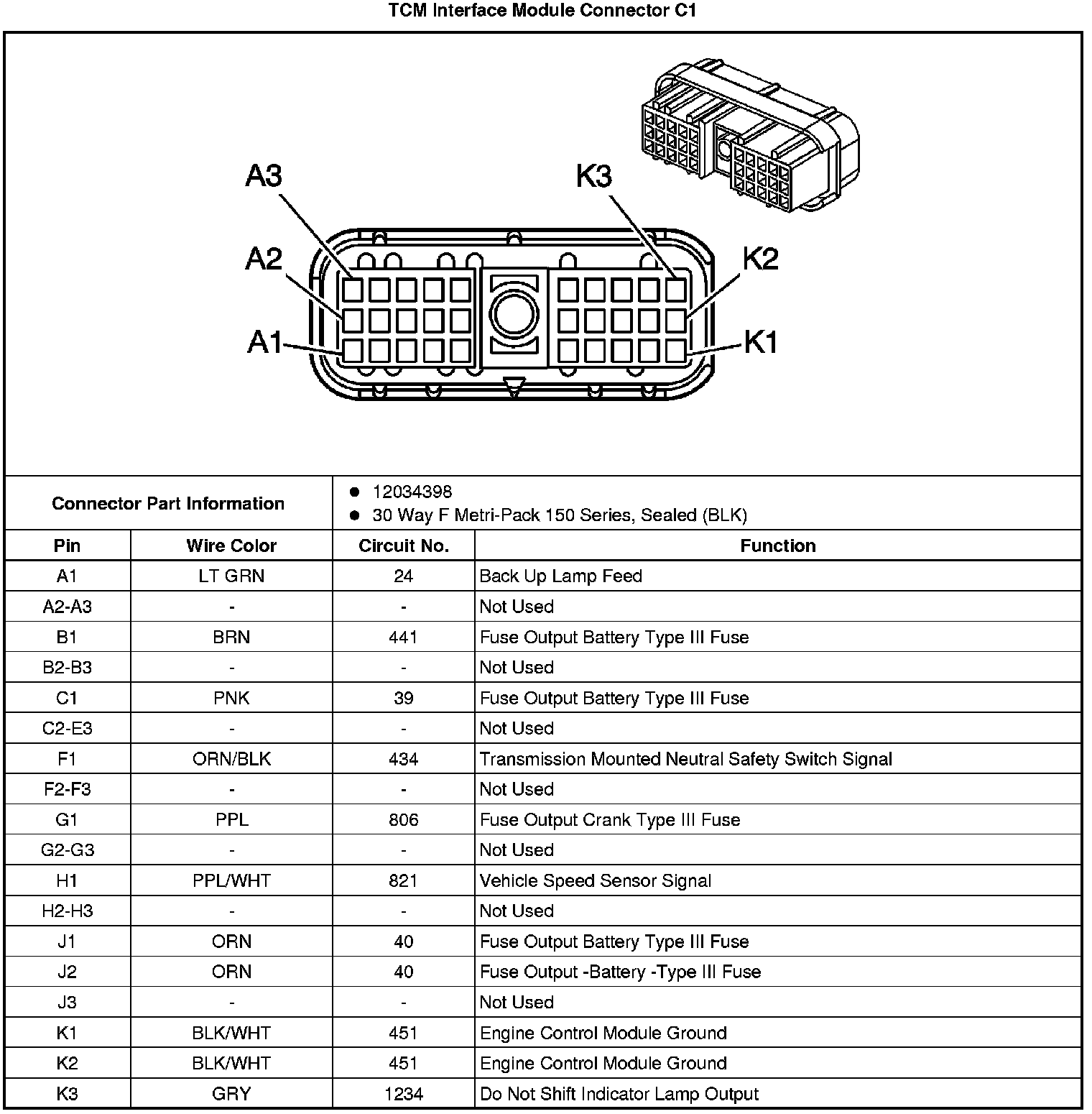

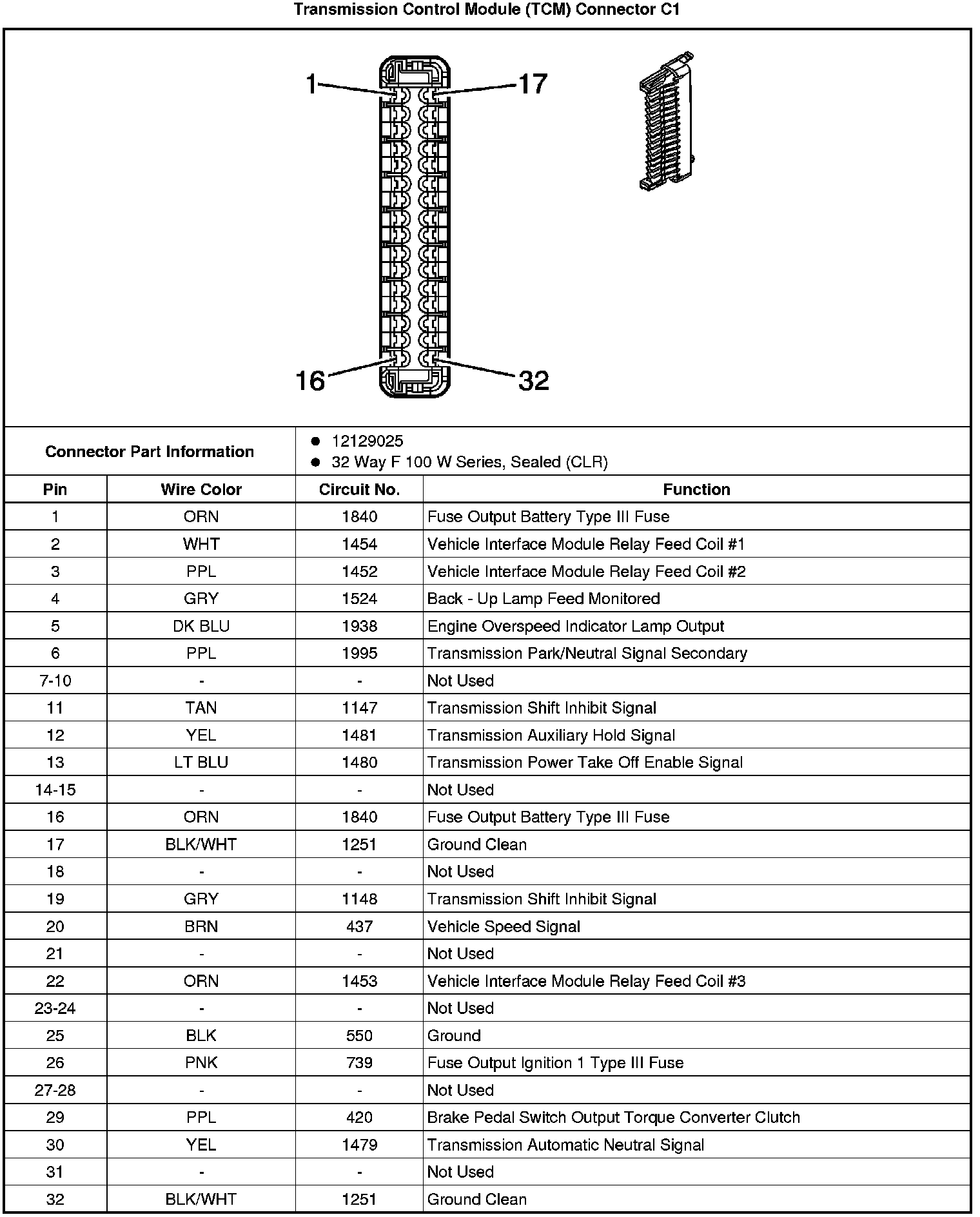

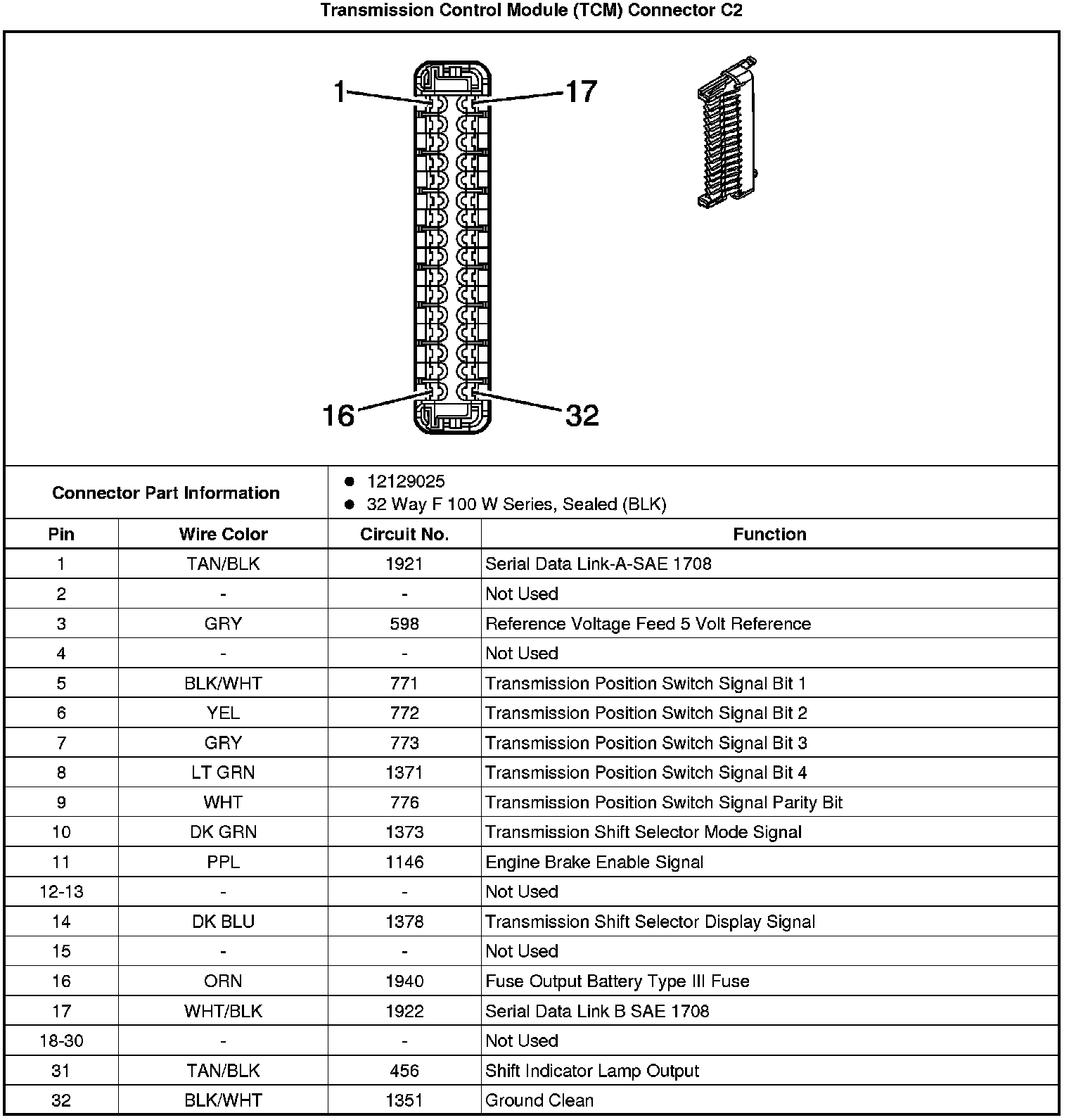

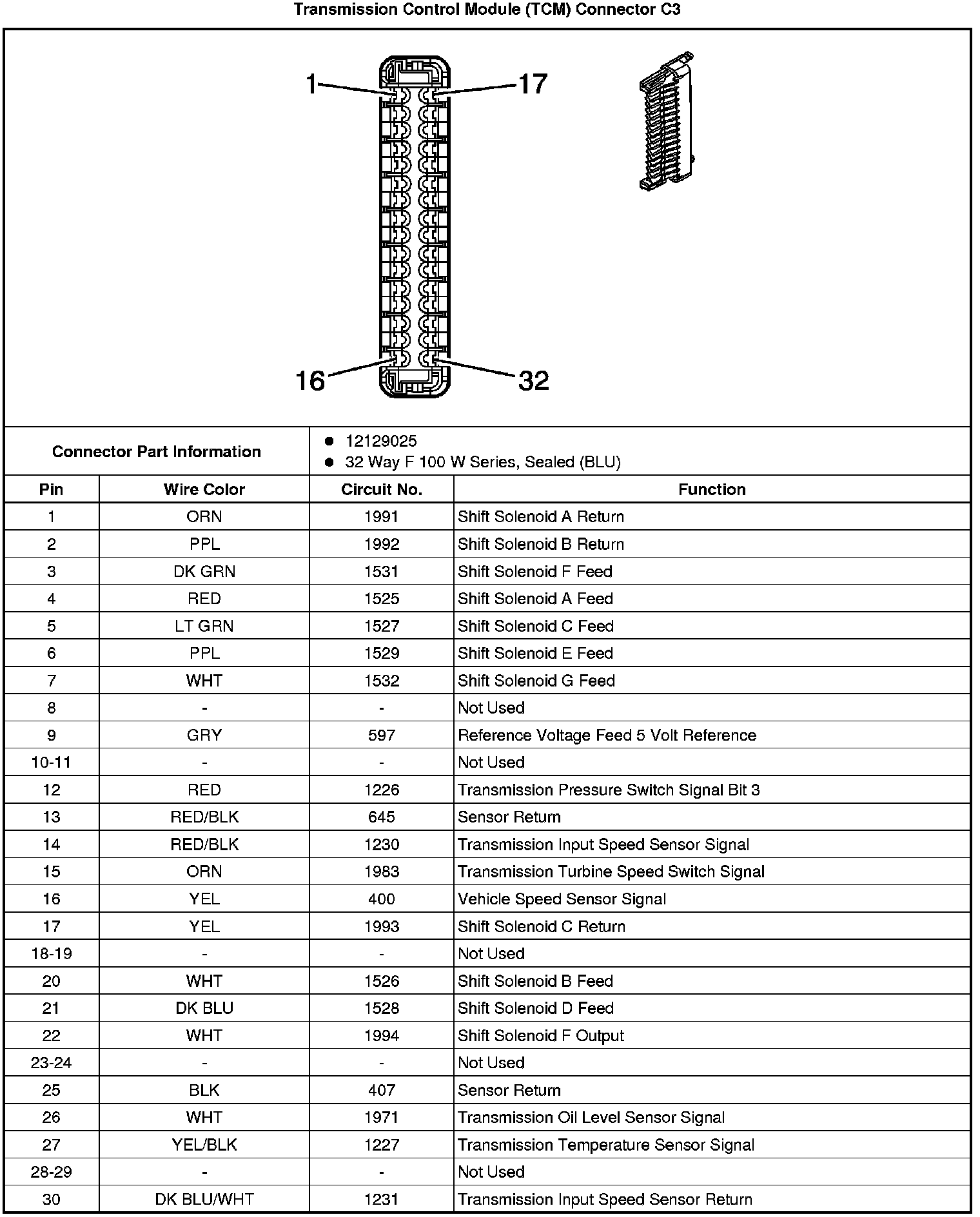

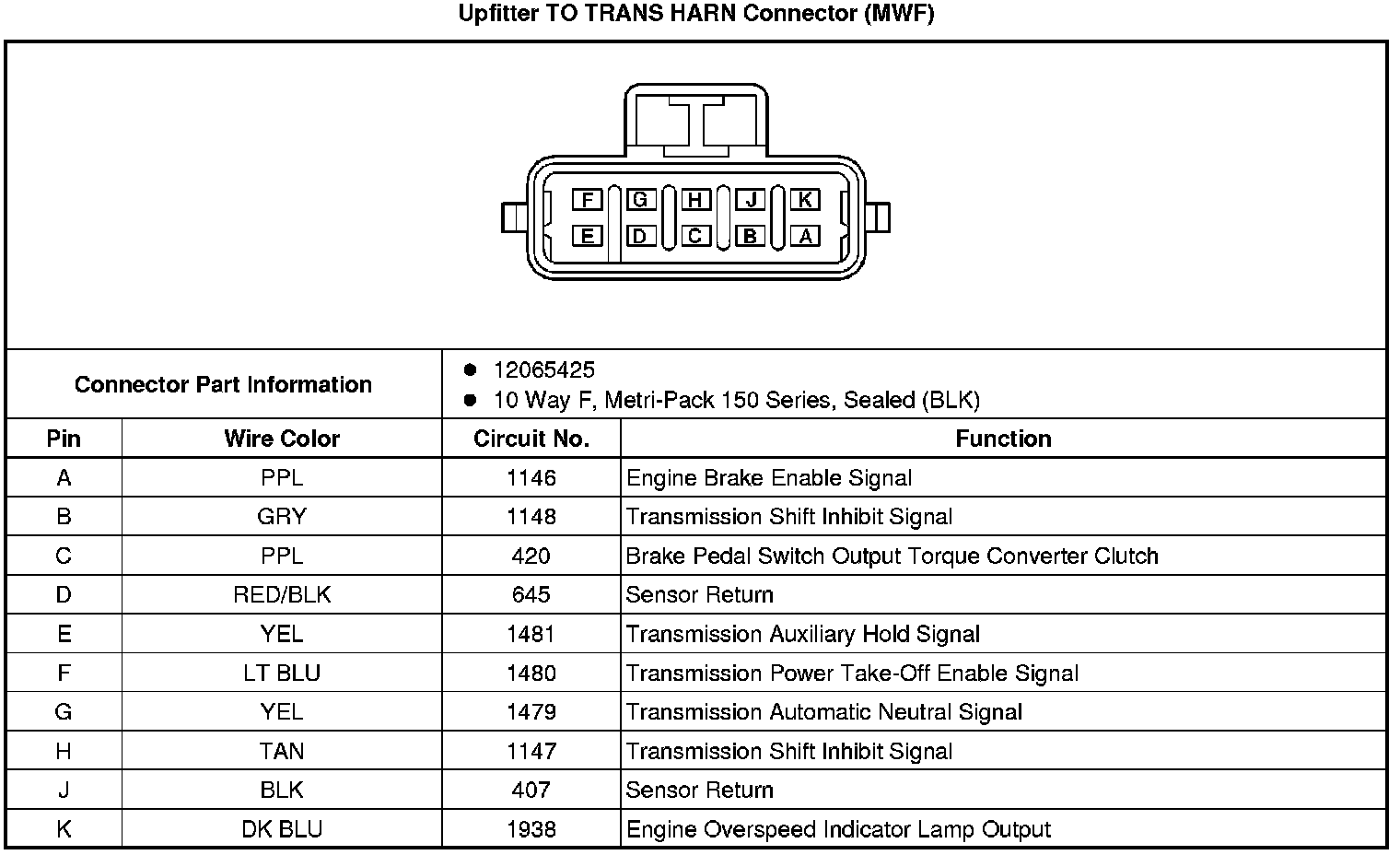

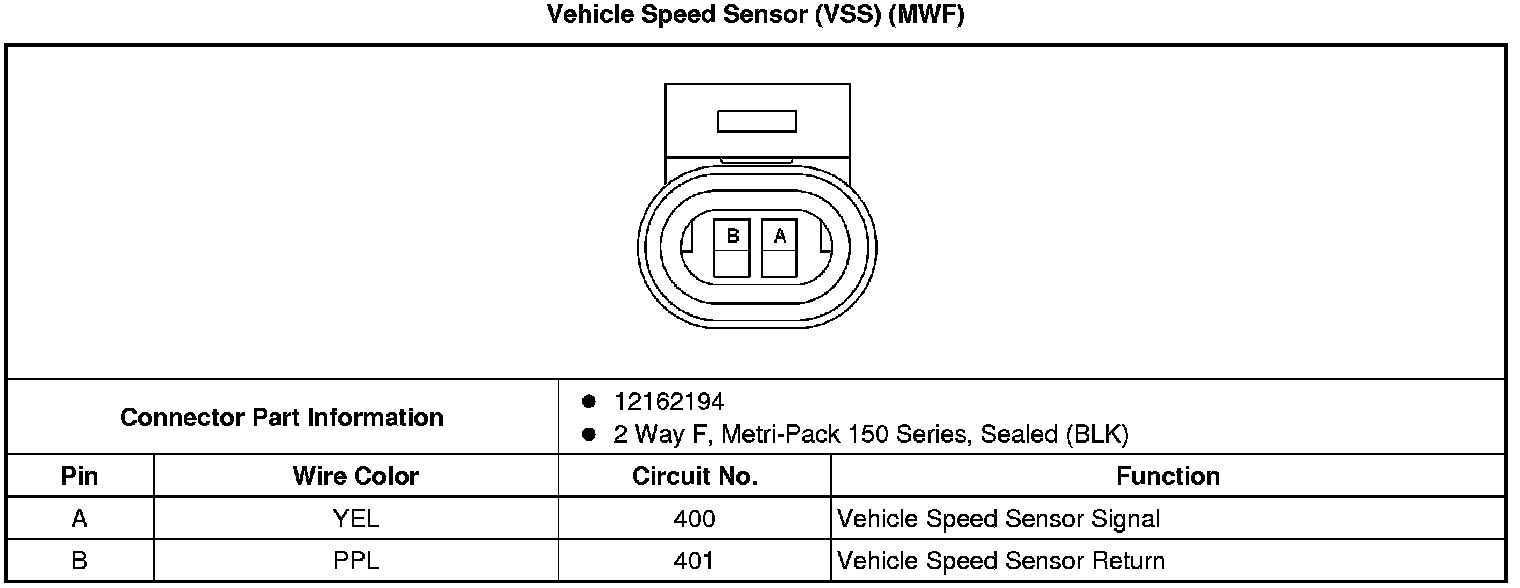

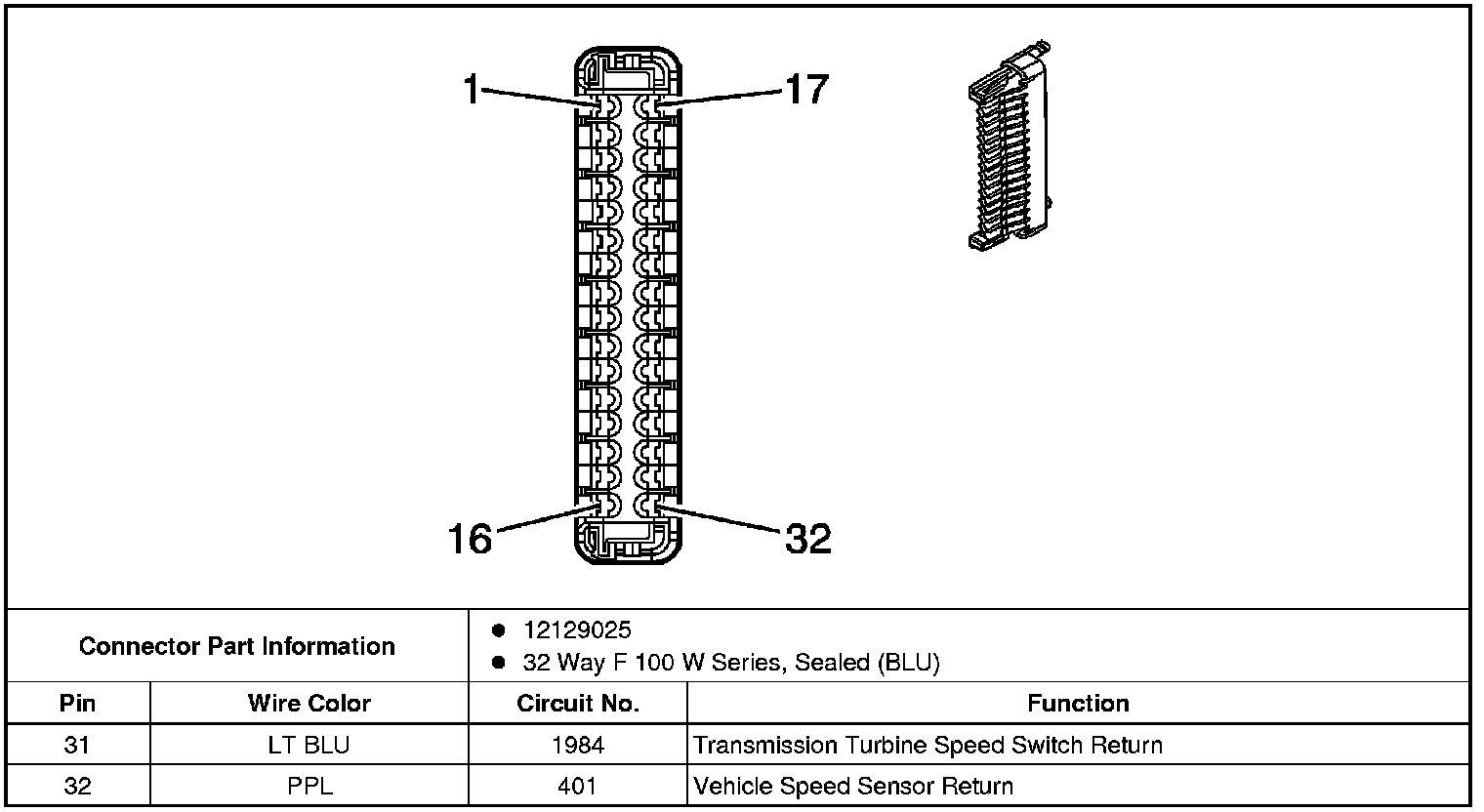

Transmission Controls Connector End Views
