Home >> GMC >> 1999 >> Safari Van AWD V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Temperature Sensor >> Diagrams

Engine Temperature Sensor: Diagrams

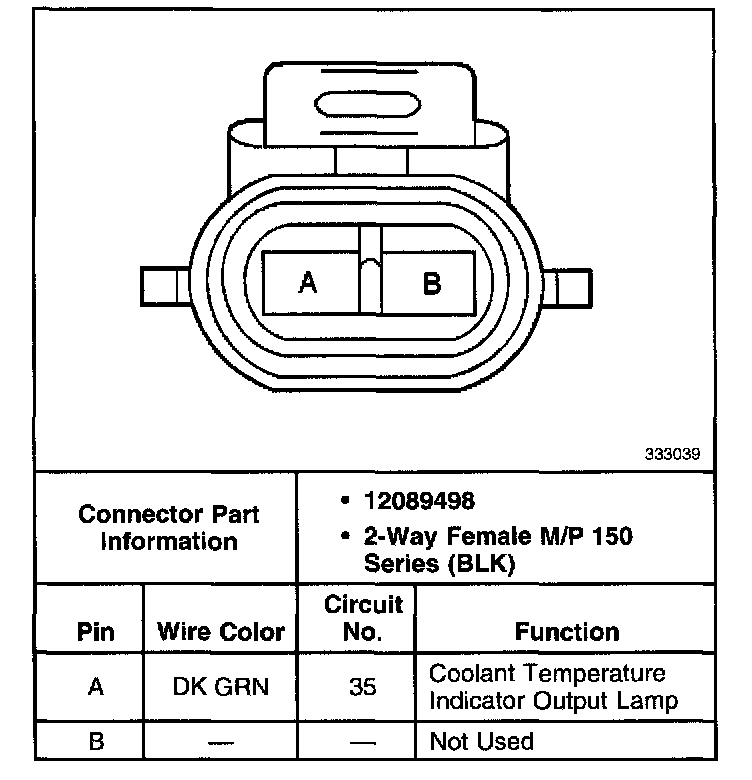

Engine Coolant Temperature Gauge Sensor Connector:
