Power Door Lock Control Module: Locations

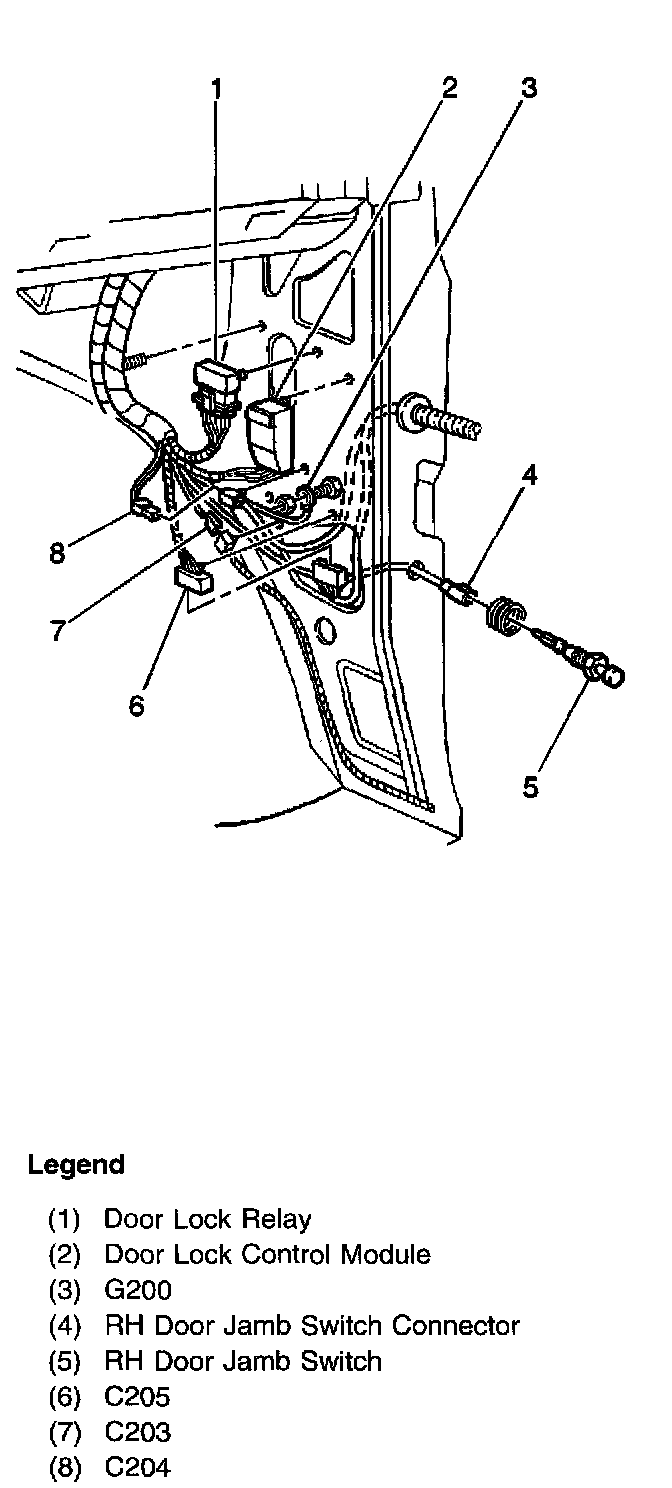

RH Kick Panel Wiring (Electrical):

RH Kick Panel Wiring (Electrical):

On the right front of the kick panel
