Front Overhead

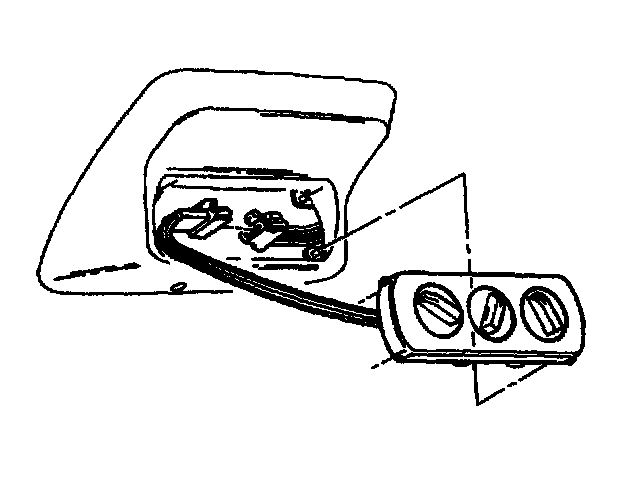

Front Overhead Auxiliary Control Switch (Suburban):

Remove or Disconnect

1. Negative battery cable.
2. Overhead console.
3. Electrical harness from control assembly.
4. Control assembly from overhead console.

Install or Connect

1. Control assembly to overhead console.
2. Electrical harness to control assembly.
3. Overhead console.
4. Negative battery cable.
- Check circuit operation.
