Some

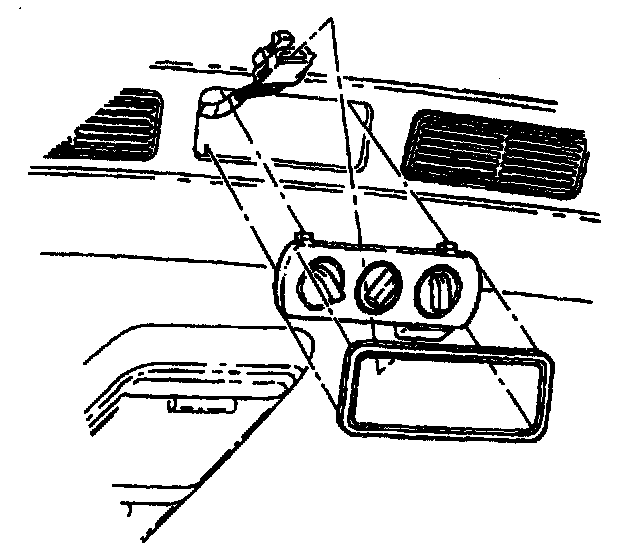

Center Overhead Auxiliary Control Switch:






Remove or Disconnect

1. Bezel.
2. Control assembly from roof panel.
3. Electrical harness from control assembly.

Install or Connect

1. Electrical harness to control assembly
2. Control assembly to roof panel.
3. Bezel.
- Check circuit operation.
