Heating System Only

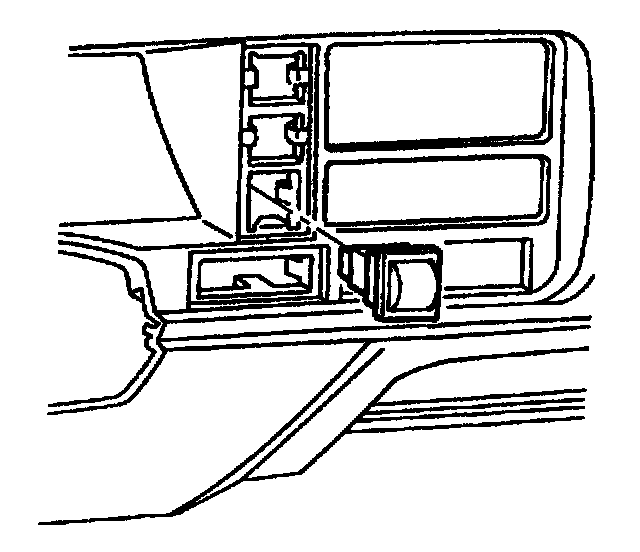

Auxiliary Heater Control Switch:

Remove or Disconnect

1. Instrument cluster trim.
2. Electrical connectors.
3. Control switch from instrument cluster trim.

Install or Connect

1. Control switch to instrument cluster trim.
2. Electrical connectors.
3. Instrument cluster trim.
- Check circuit operation.
