Home >> GMC >> 1998 >> Yukon 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Auxiliary Heater and A/C Control Logic Module >> General

General

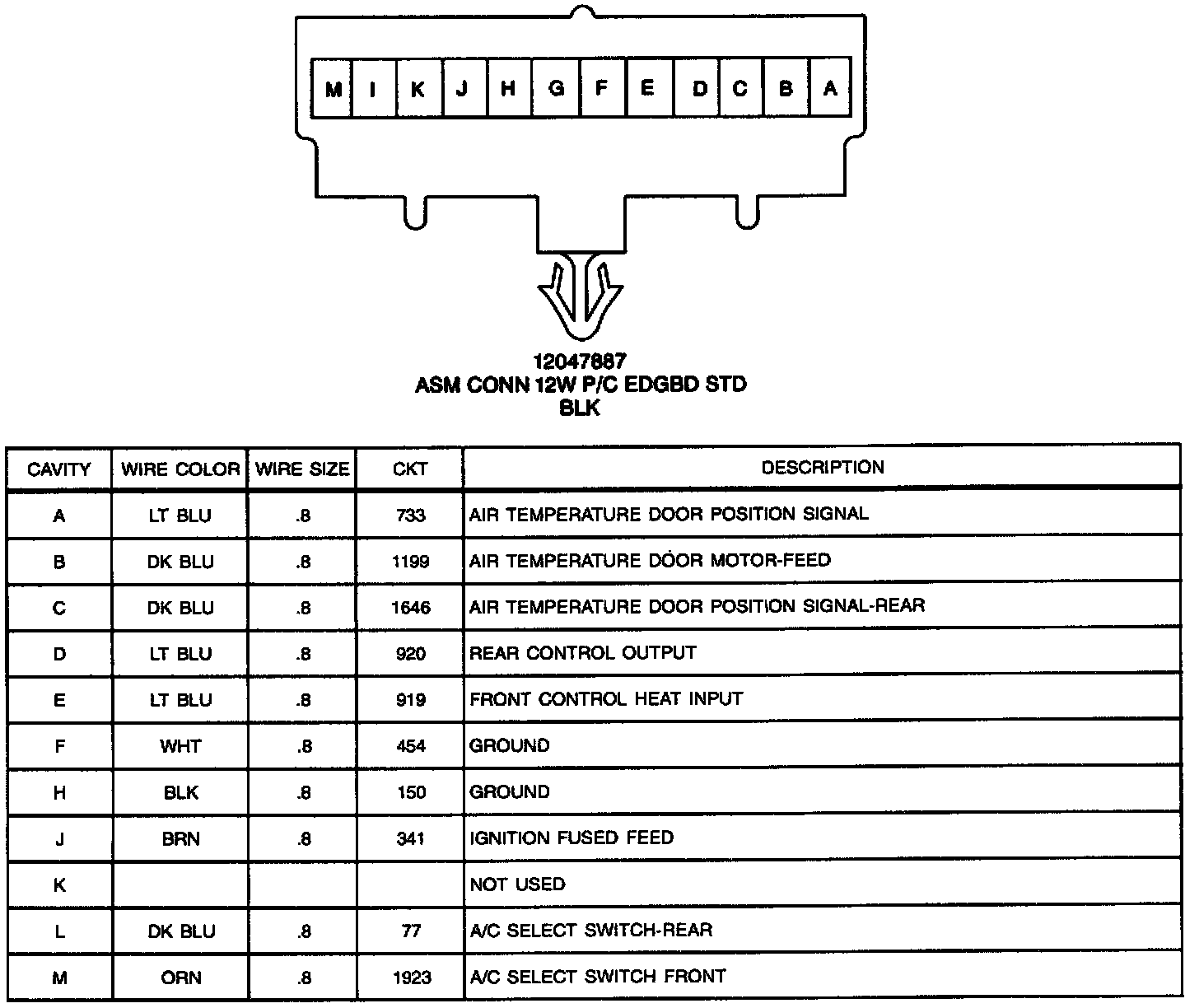

Auxiliary Heater And A/C Control Logic Module:
