Home >> GMC >> 1998 >> Safari Van AWD V6-4.3L VIN W >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Windshield Washer Control Module >> Locations >> Washer/Wiper Motor Module

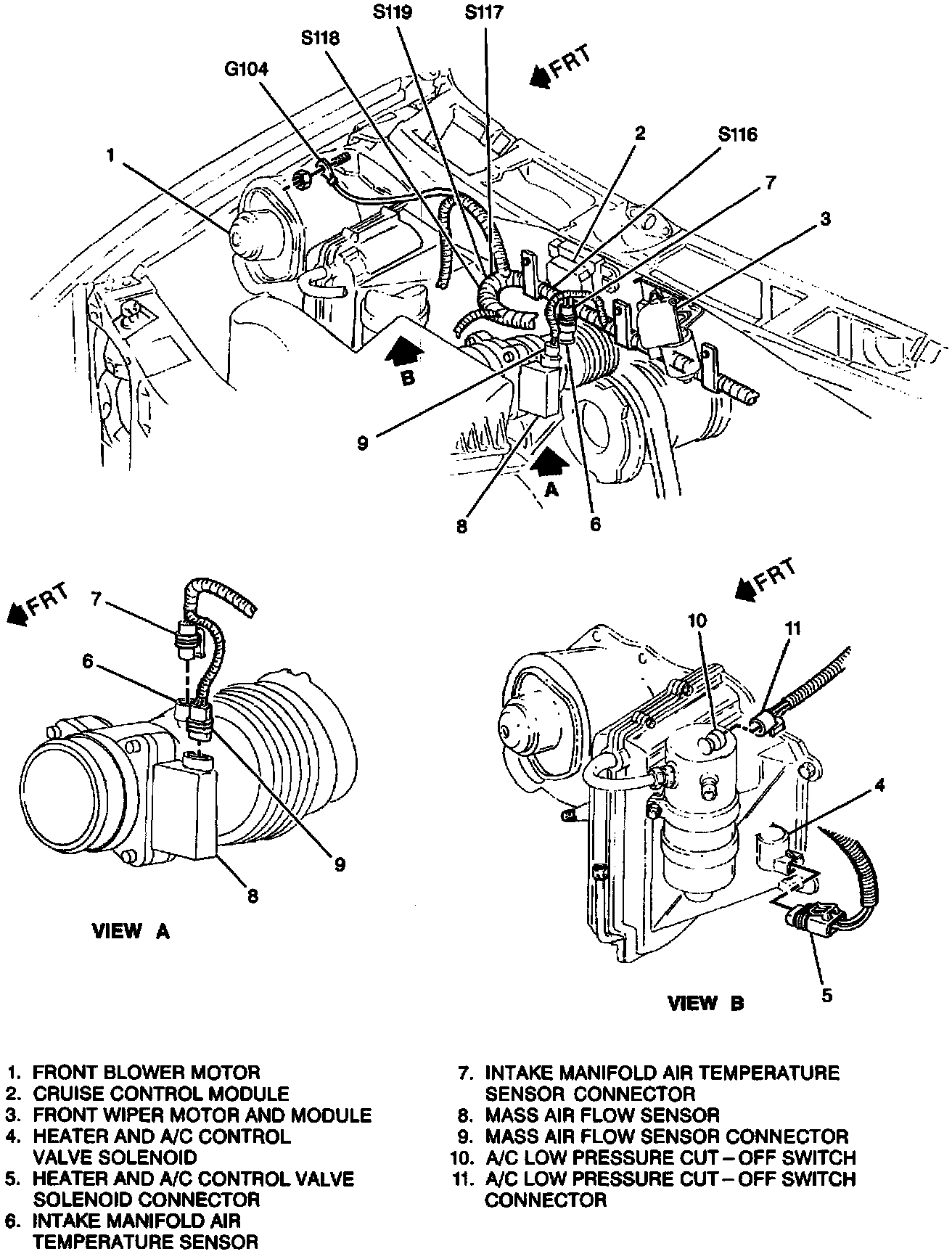

Washer/Wiper Motor Module

Engine/Center Of Front Of Dash Wiring:
