Coolant Level Indicator Module: Service and Repair

REMOVE OR DISCONNECT
1. Negative battery cable.
2. I/P storage compartment.
3. Electrical connector.

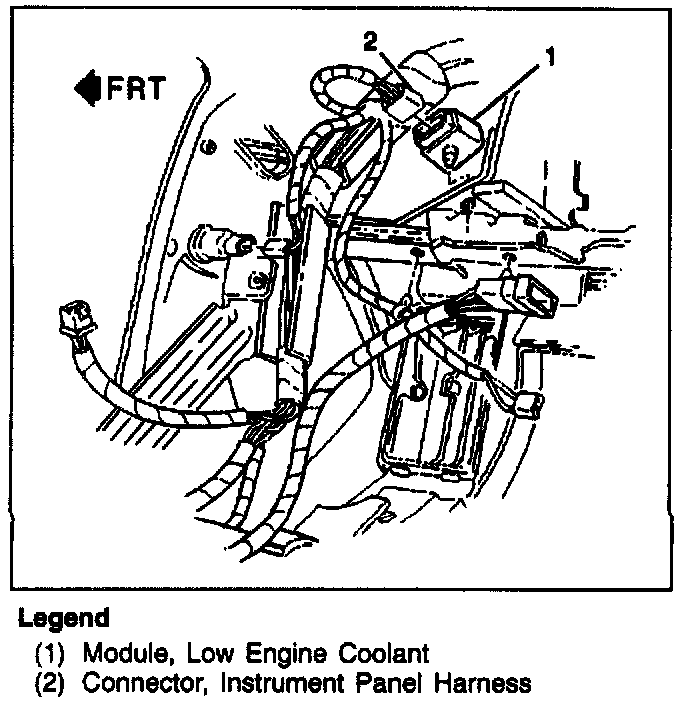

4. Module from instrument panel by pulling straight out.

INSTALL OR CONNECT
1. Module to instrument panel.
2. Electrical connector.
3. I/P storage compartment.
4. Negative battery cable.
