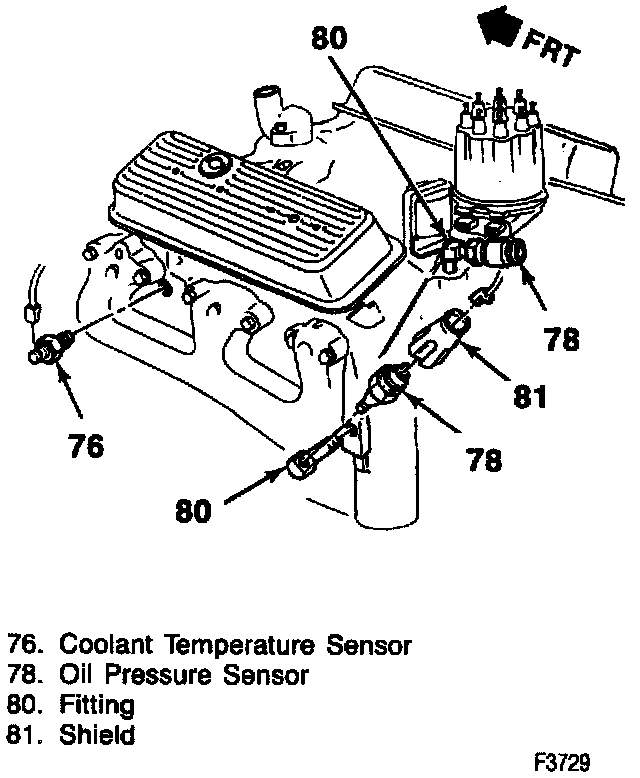

Oil Pressure Sensor: Service and Repair

Tool Required:
J 35749 Oil Pressure Sending Unit Socket

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Sender using J 35749.
3. Sender connector.

INSTALL OR CONNECT
1. Sender using J 35749.
2. Sender connector.
3. Negative battery cable.
