C1 (Blue)
C1 (Blue)
Connector End View:
Connector View

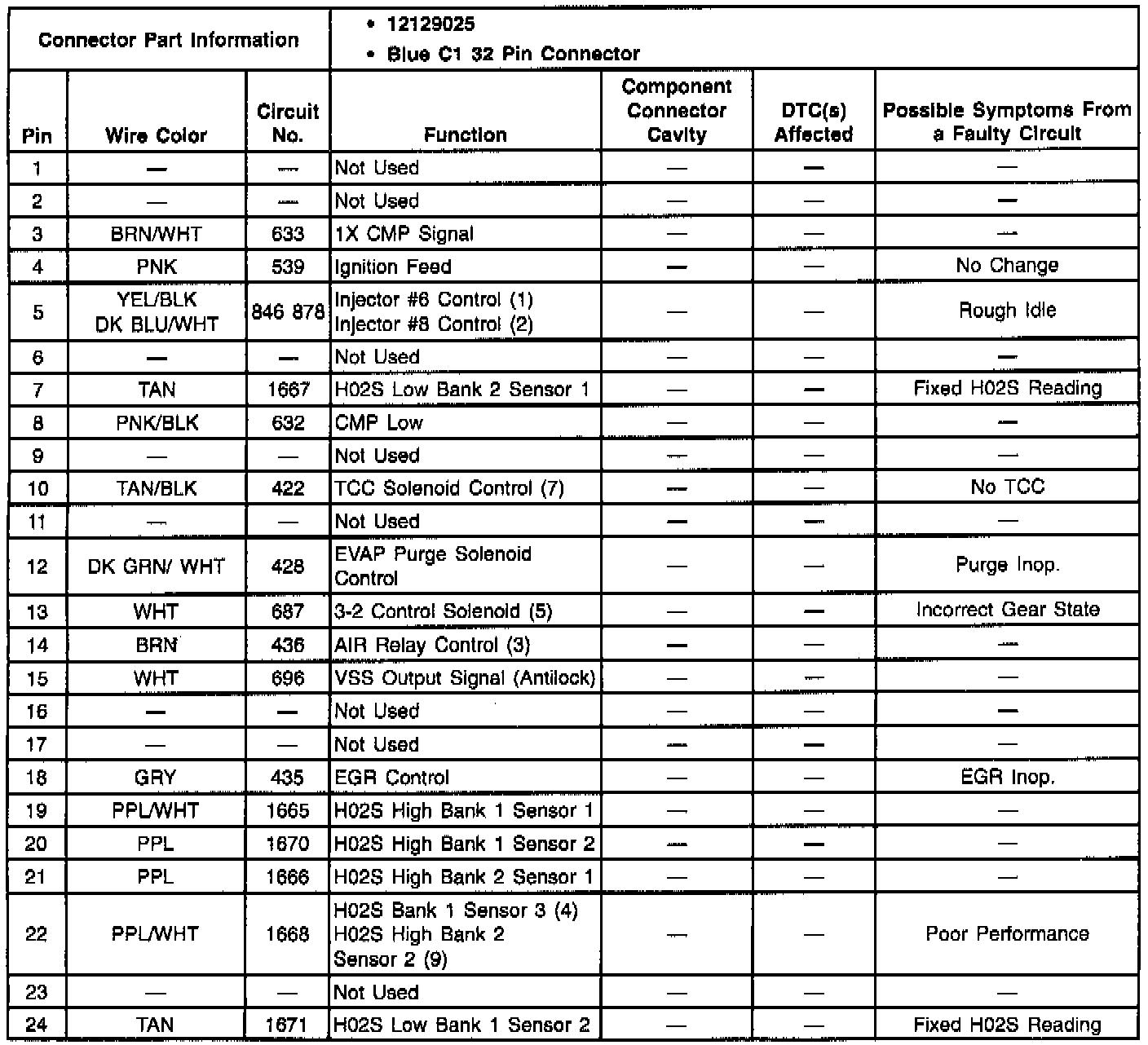

Description:
Pins 1-24

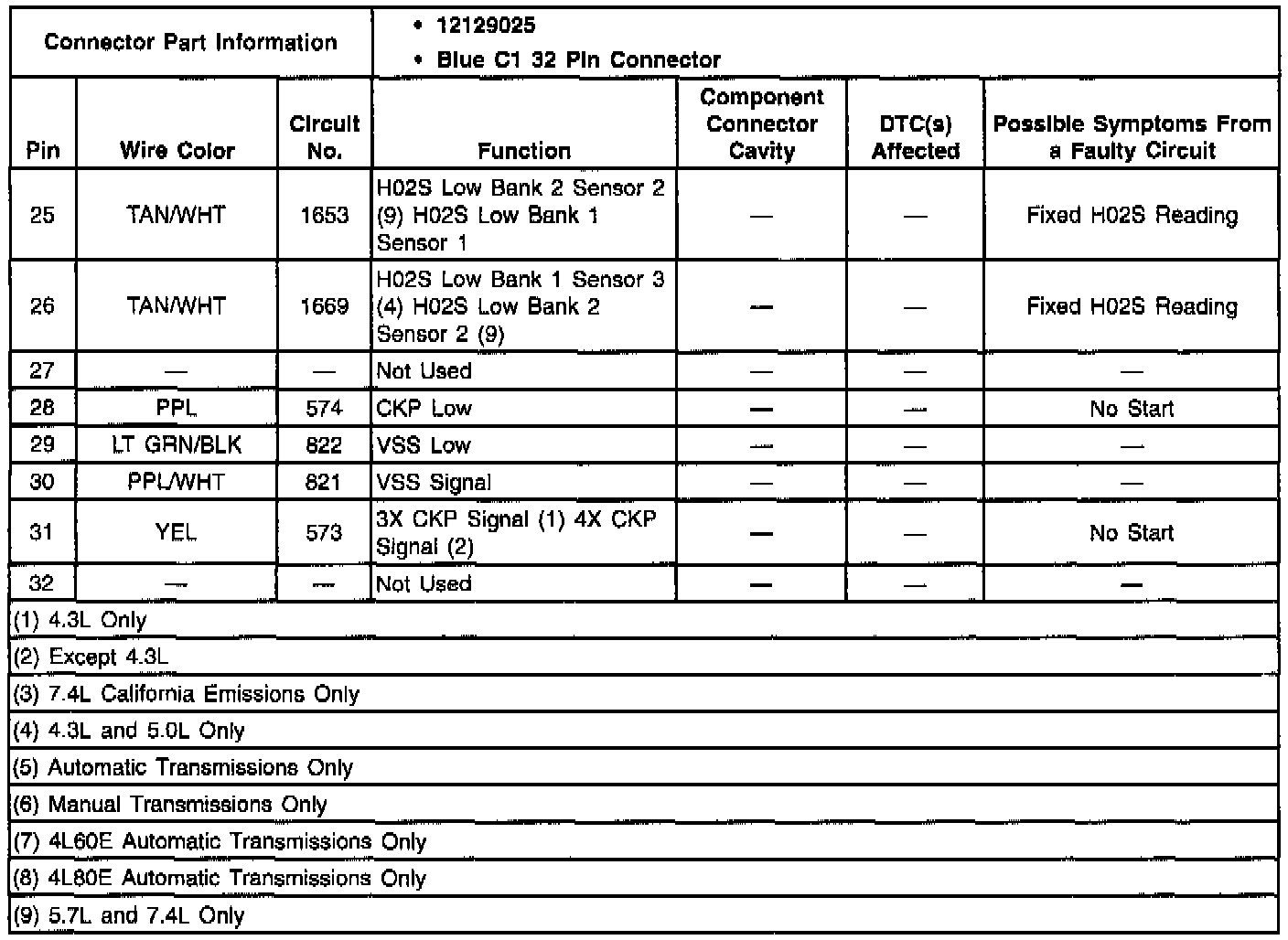

Description:
Pins 25-32
