Home >> GMC >> 1997 >> Yukon 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Module >> Diagrams >> Electrical Diagrams >> Interior Lamp Control Module

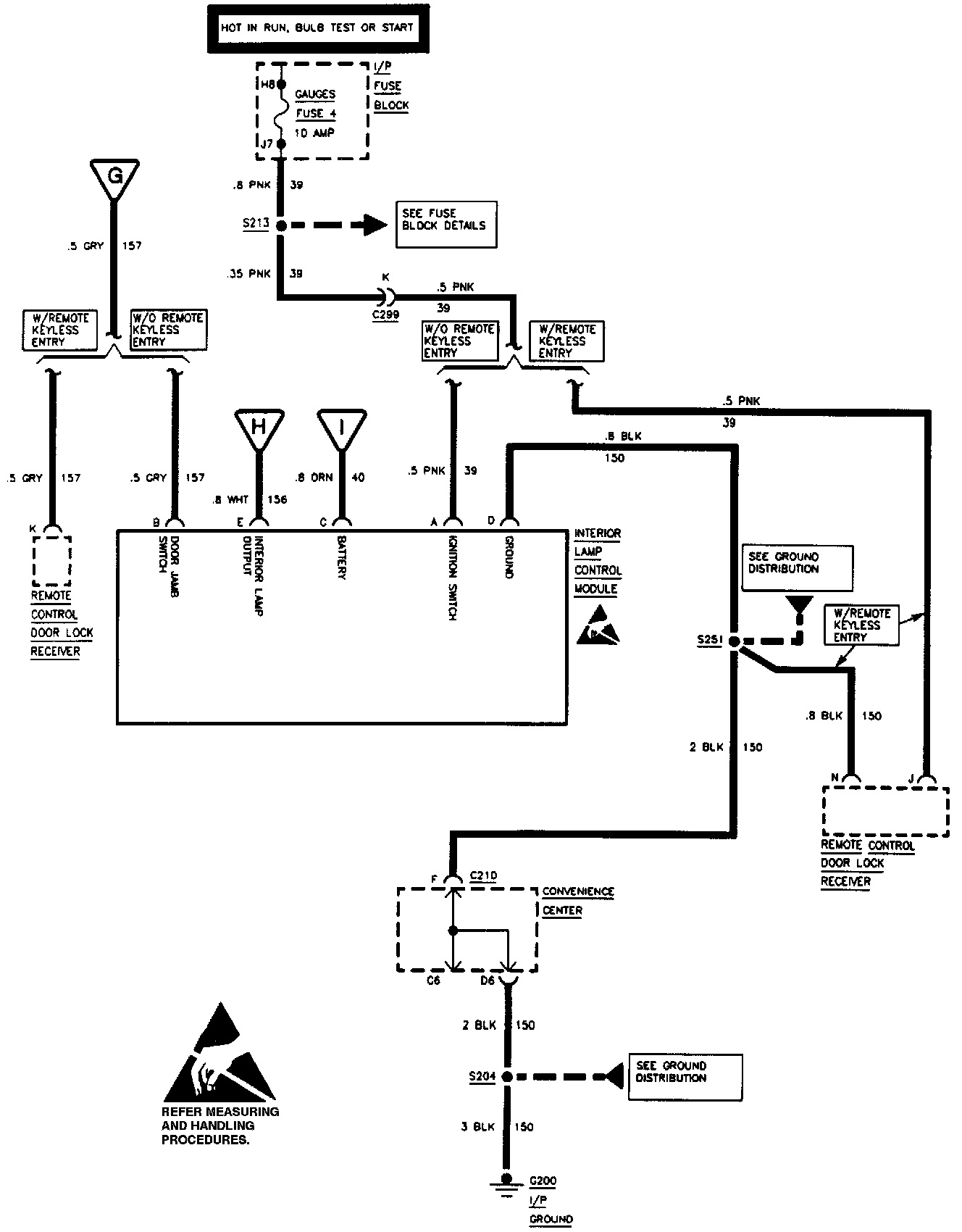

Interior Lamp Control Module

Interior Lights:
