Home >> GMC >> 1996 >> Yukon 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> Auxiliary Heater and A/C Control Module >> Front

Front

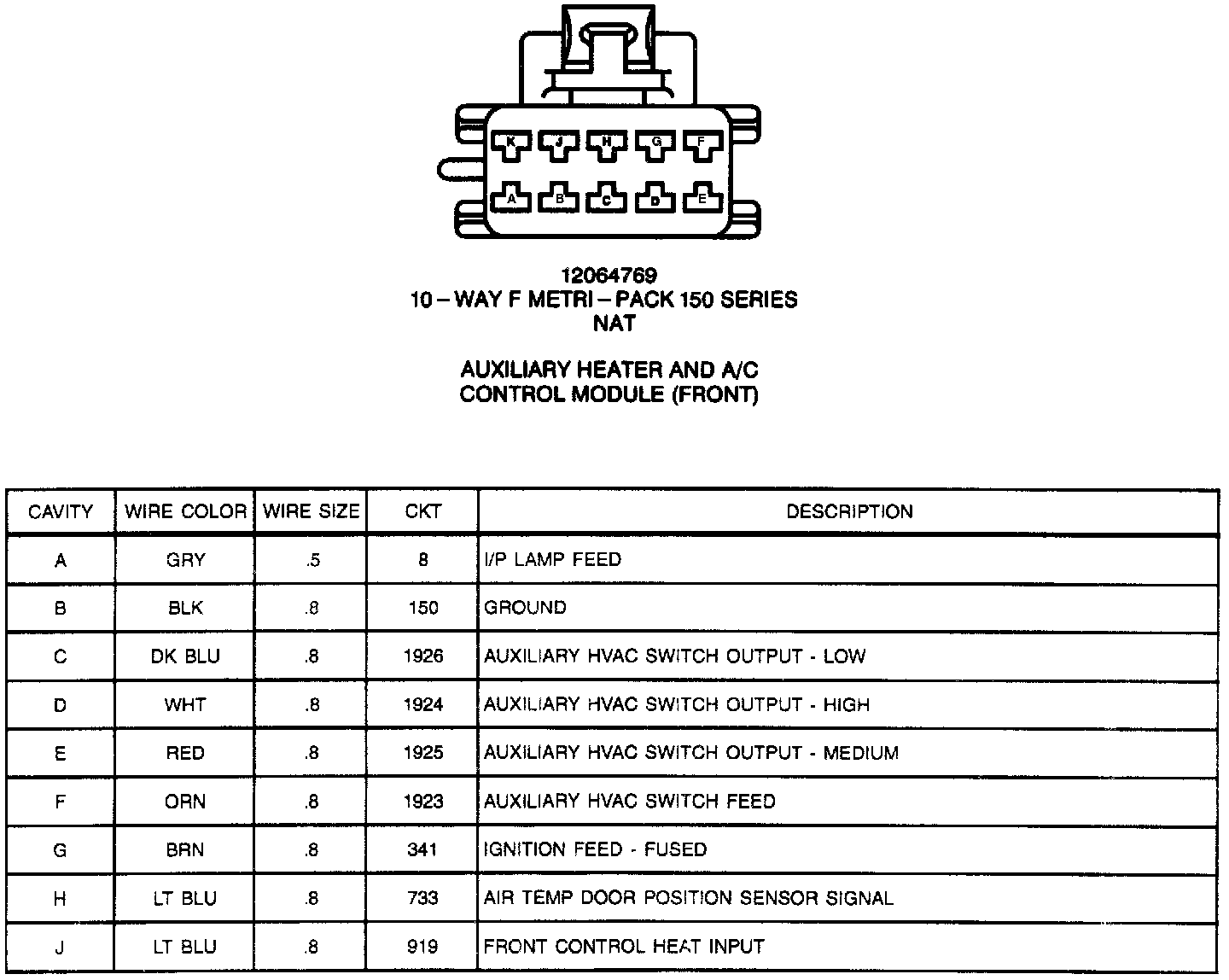

Auxiliary Heater And A/C Control Module, Front:
