Component Locations

COMPONENT LOCATIONS

Component Location
Convenience Center-I/P Harness Under LH Side Of I/P, On Bulkhead. See Fig 4 & Fig 5 .
Data Link Connector (DLC) Below Left Side Of I/P
Door Lock Motor, LH Front Inside Door, Near Free Edge Latch
Door Lock Motor, LH Rear Inside Door, Near Free Edge Latch
Door Lock Motor, RH Front Inside Door, Near Free Edge Latch
Door Lock Motor, RH Rear Inside Door, Near Free Edge Latch
Door Lock Motor, RH Rear Cargo Door Inside Door, Lower Portion, Near Free Edge
Door Lock Relay. Under Center Portion Of I/P, Near RKE Module. See Fig 7 .
Door Lock Switch, LH Front On Door Trim Panel
Door Lock RH Front On Door Trim Panel
Fuse Block-I/P Harness. Lower LH Side Of I/P. See Fig 1 .
Remote Keyless Entry Module Under Center Portion Of I/P. See Fig 2 .
C208 Inside LH "A" Pillar, Lower Portion. See Fig 8 .
C209 Inside LH "A" Pillar, Lower Portion. See Fig 8 .
C210 At Convenience Center. See Fig 4 .
C213 Inside RH "A" Pillar, Lower Portion. See Fig 8 .
C222 At Convenience Center. See Fig 5 .
C299 Behind RH Side Of I/P, Above HVAC Evaporator Housing. See Fig 3 .
C301 LH Front Kick Panel. See Fig 5 .
C302 LH Front Kick Panel. See Fig 5 .
C497 RH "B" Pillar. See Fig 6 .
C499 RH "B" Pillar. See Fig 6 .
G200 Behind LH Side Of I/P, Below Fuse Block
S204 I/P Harness, About 4 cm Left Of Steering Column Connector Breakout
S213 I/P Harness About 16 cm Right Of Fuse Block Breakout
S213 (Crew Cab, VIN F) I/P Harness About 16 cm Right Of Breakout For LH Door Jamb Switch
S213 (Diesel) I/P Harness About 16 cm Right Of Headlamp Dimmer Switch Breakout
S246 (Crew Cab) Crossbody Harness, 42 cm Left Of LH Door Breakout
S246 (Utility, Pickup, Extended Cab) Crossbody Harness, 6 cm Right Of Rear Body Breakout
S251 (Utility, Crew Cab, Pickup, Extended Cab) Crossbody Harness, 6 cm Left Of LH Seat Breakout
S255 (Suburban, Crew Cab, Pickup, Extended Cab) Crossbody Harness, 12 cm Right Of I/P Harness Breakout
S257 Crossbody Harness, 14 cm Right Of Door Lock Relay Breakout
S258 Crossbody Harness, 6 cm Right Of Door Lock Relay Breakout
S261 Crossbody Harness, 5 cm Right Of LH Seat Breakout
S265 (Suburban) Crossbody Harness, 6 cm Left Of LH Door Breakout
S265 (Utility) Crossbody Harness, 26 cm Right Of I/P Harness Breakout

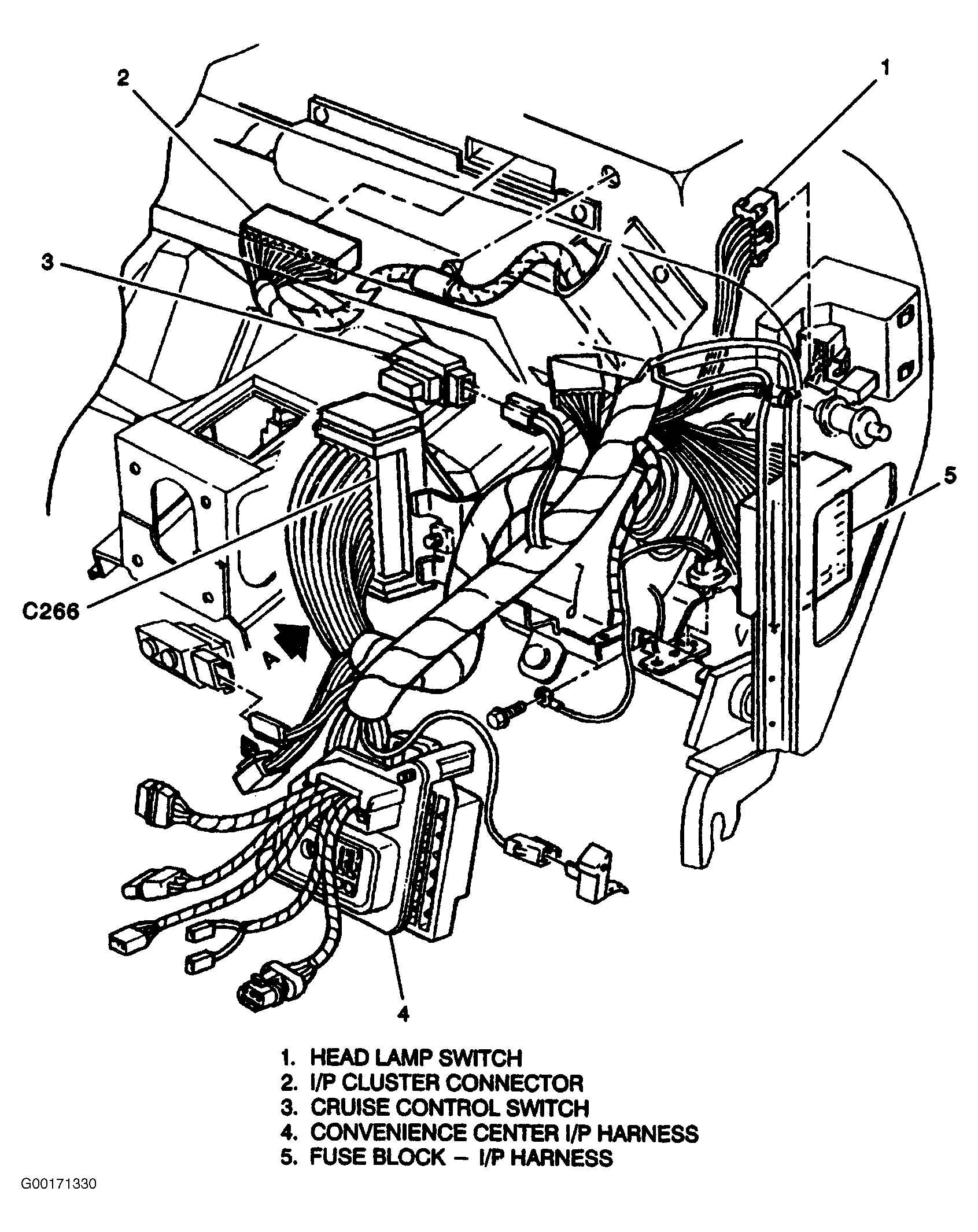

Fig 1: Explode View Of Instrument Panel Wiring (LH Side)
G00171330Courtesy of GENERAL MOTORS CORP.

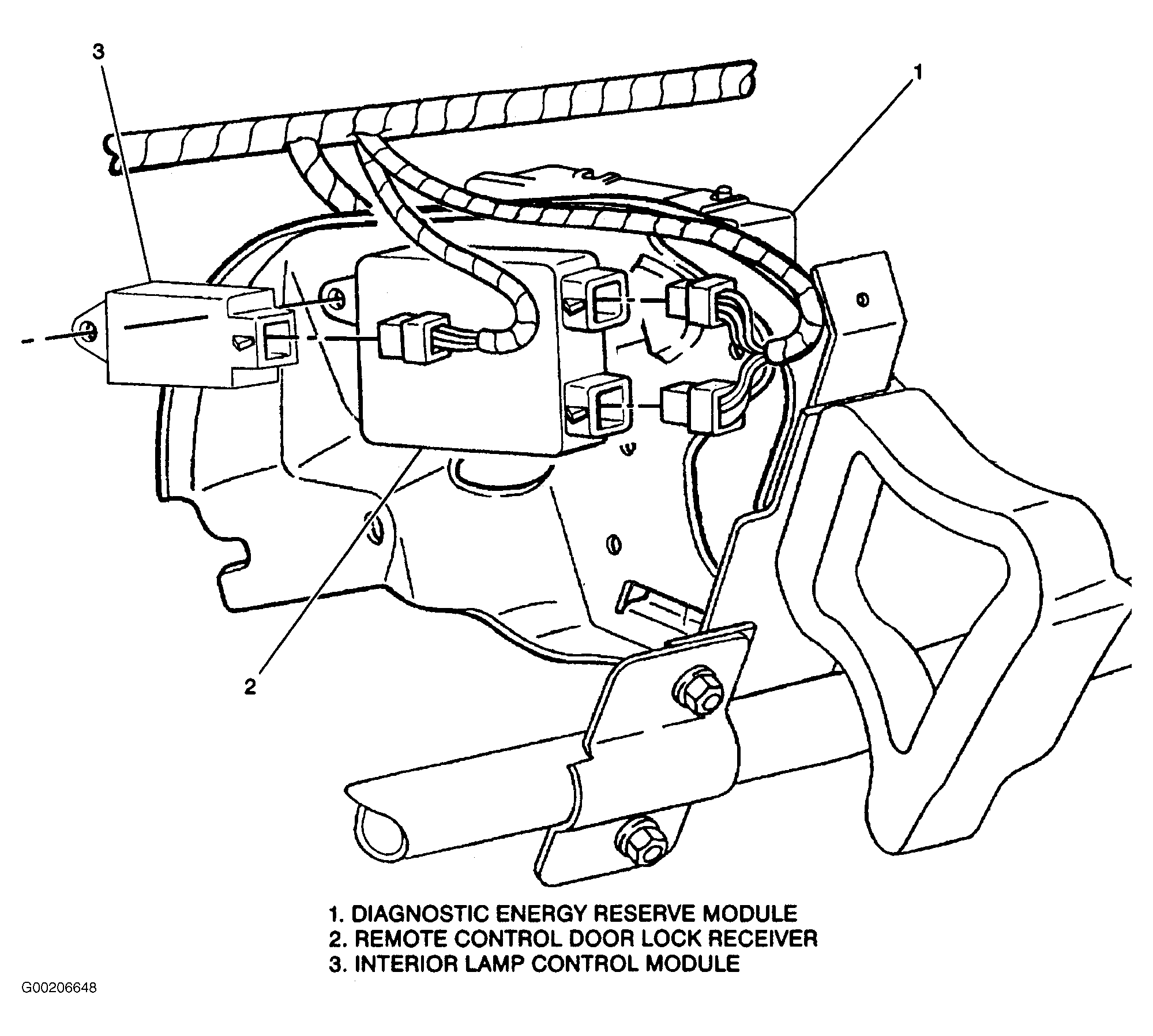

Fig 2: Locating Remote Keyless Entry Module
G00206648Courtesy of GENERAL MOTORS CORP.

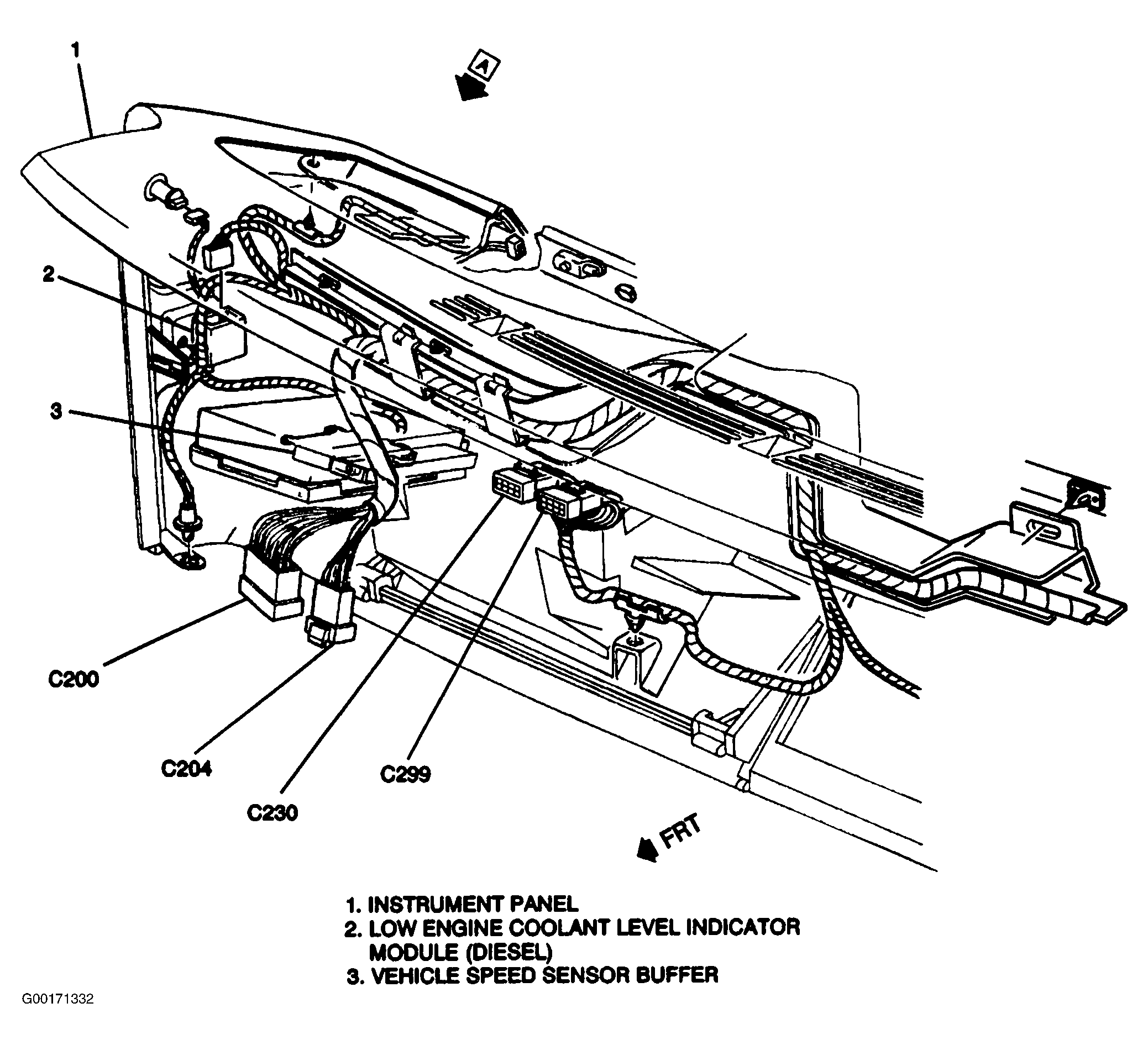

Fig 3: Exploded View Of Instrument Panel Wiring (RH Side)
G00171332Courtesy of GENERAL MOTORS CORP.

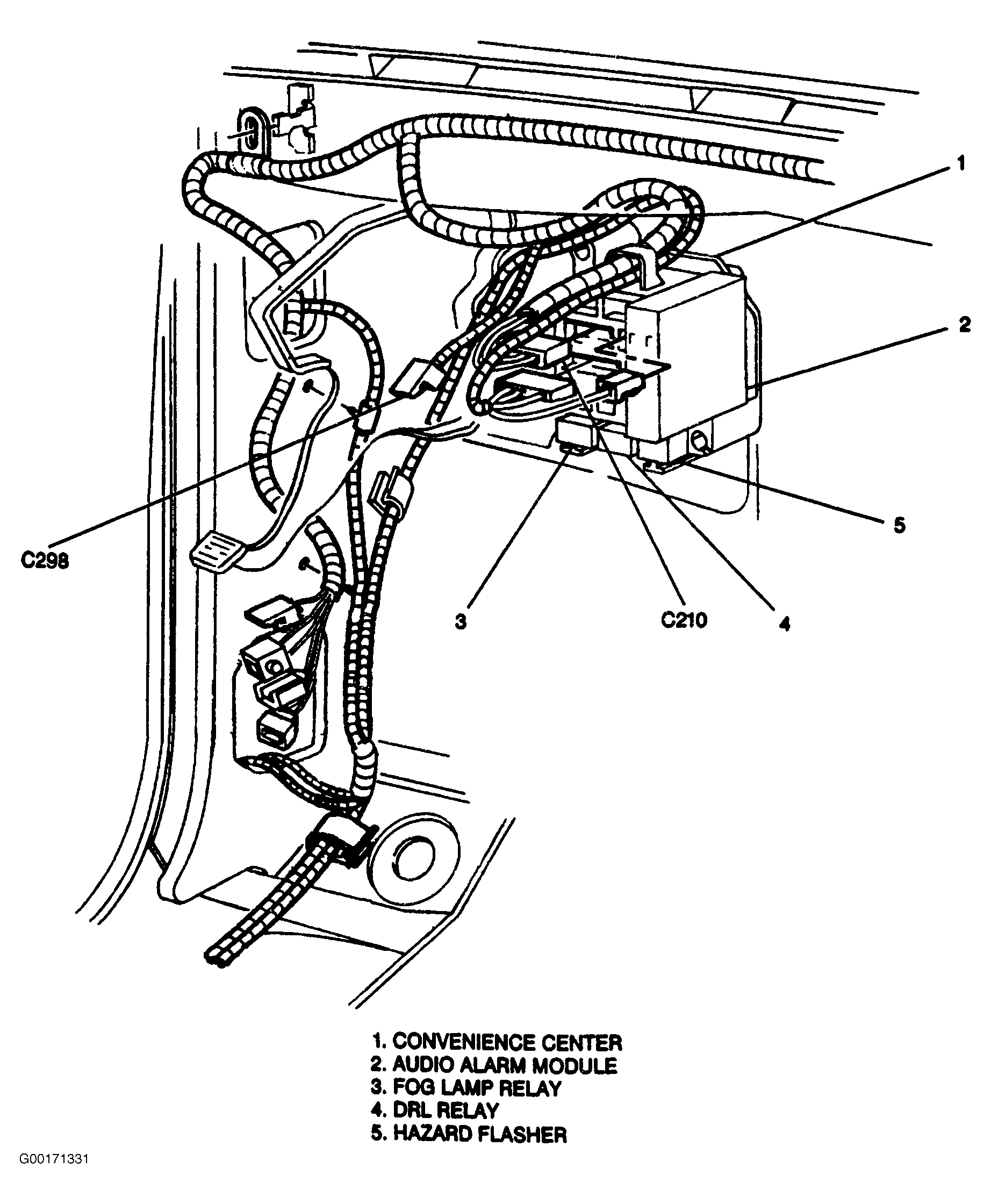

Fig 4: Locating Convenience Center & C210
G00171331

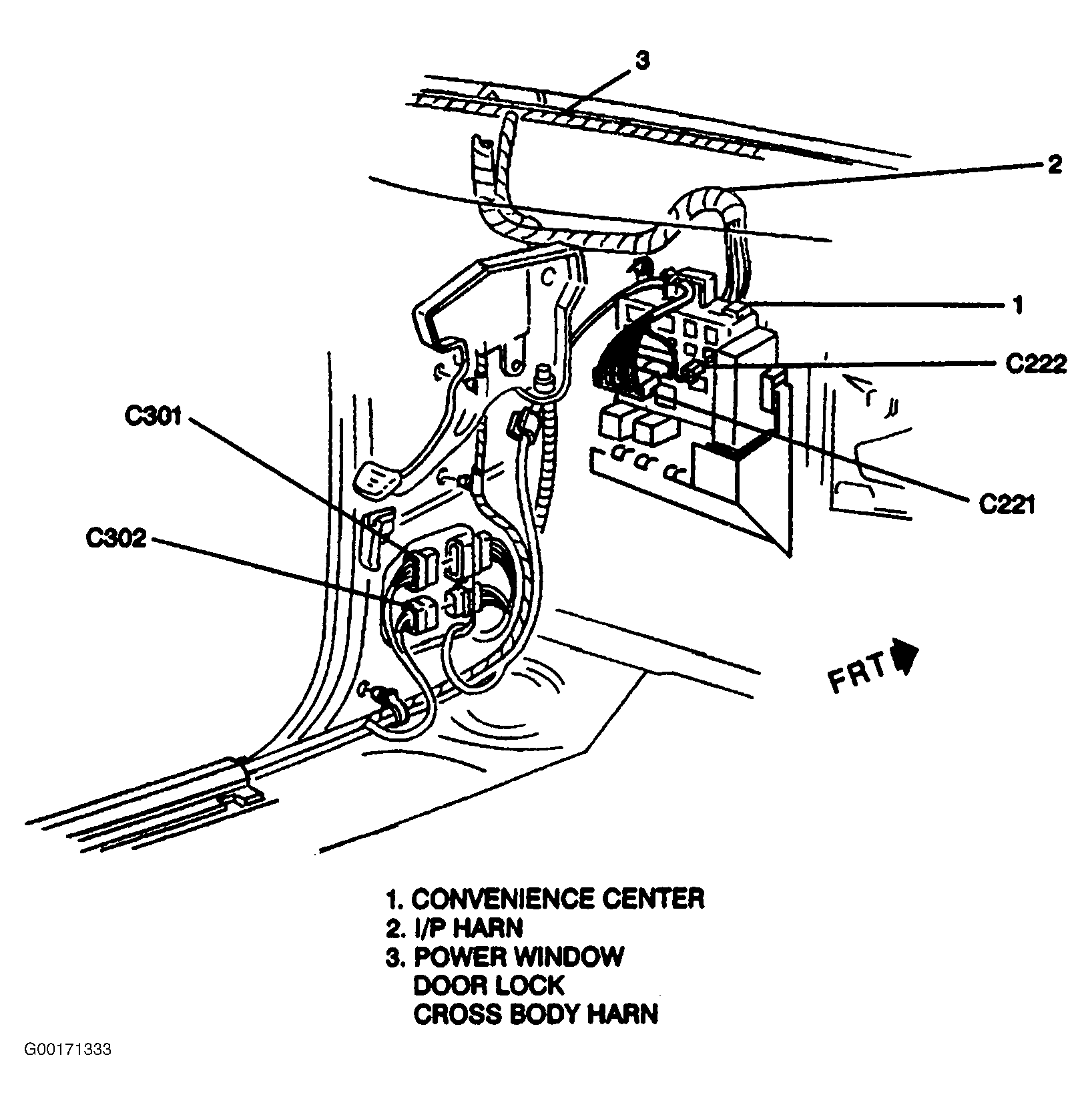

Fig 5: Exploded View Of "A" Pillar Wiring (LH Side)
G00171333Courtesy of GENERAL MOTORS CORP.

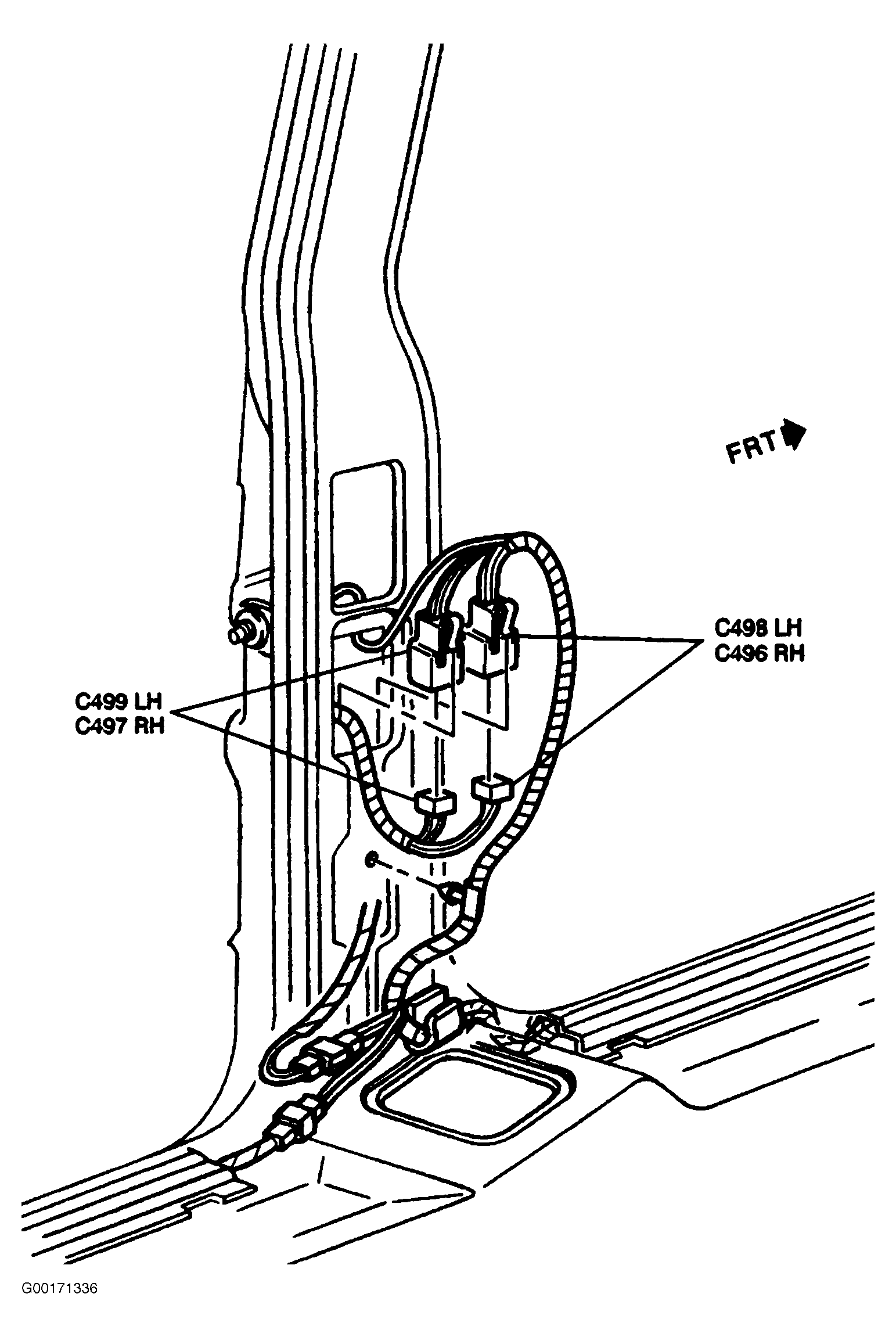

Fig 6: Exploded View Of "B" Pillar Wiring
G00171336Courtesy of GENERAL MOTORS CORP.

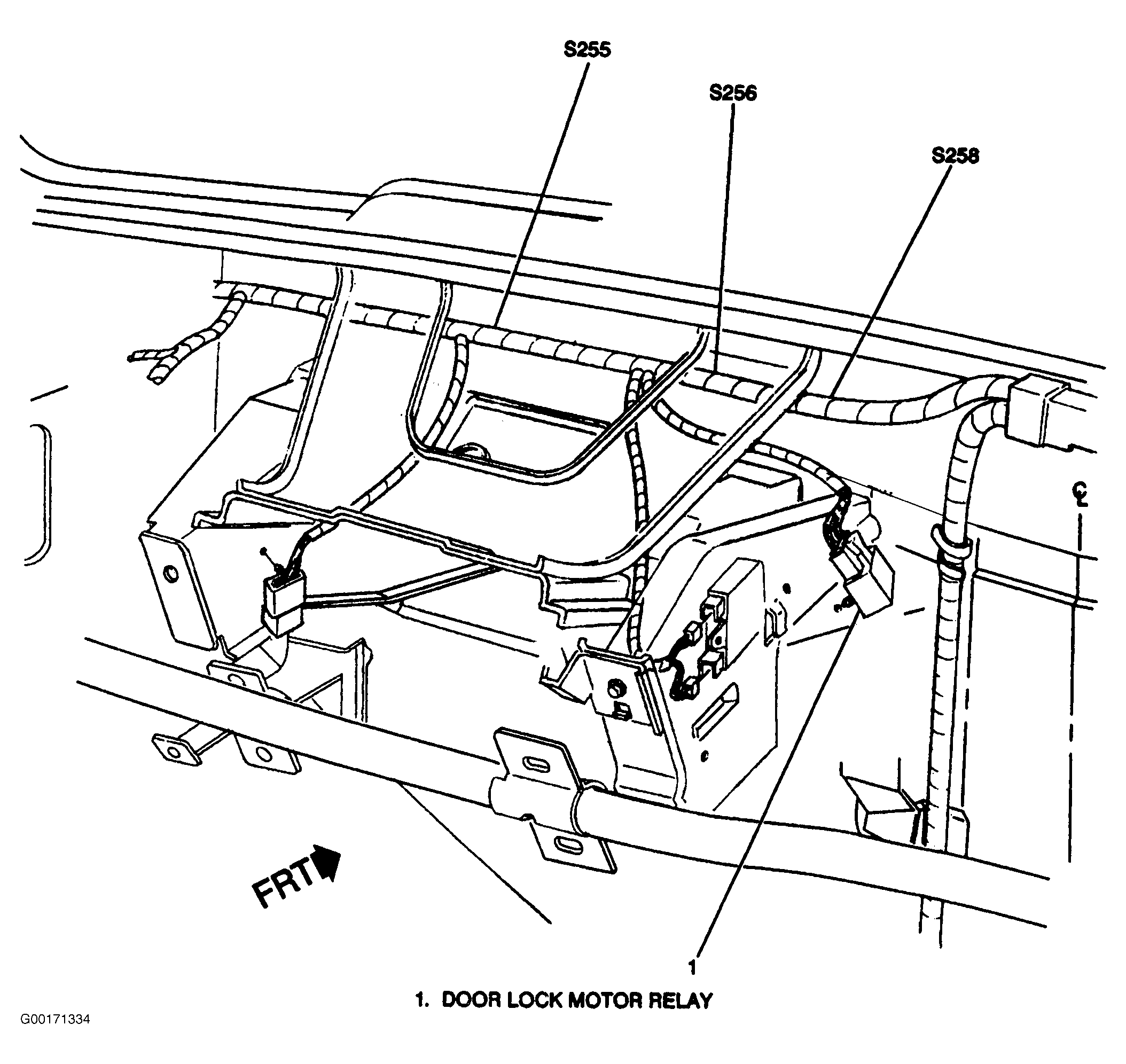

Fig 7: Exploded View Of Power Door Lock Relay
G00171334Courtesy of GENERAL MOTORS CORP.

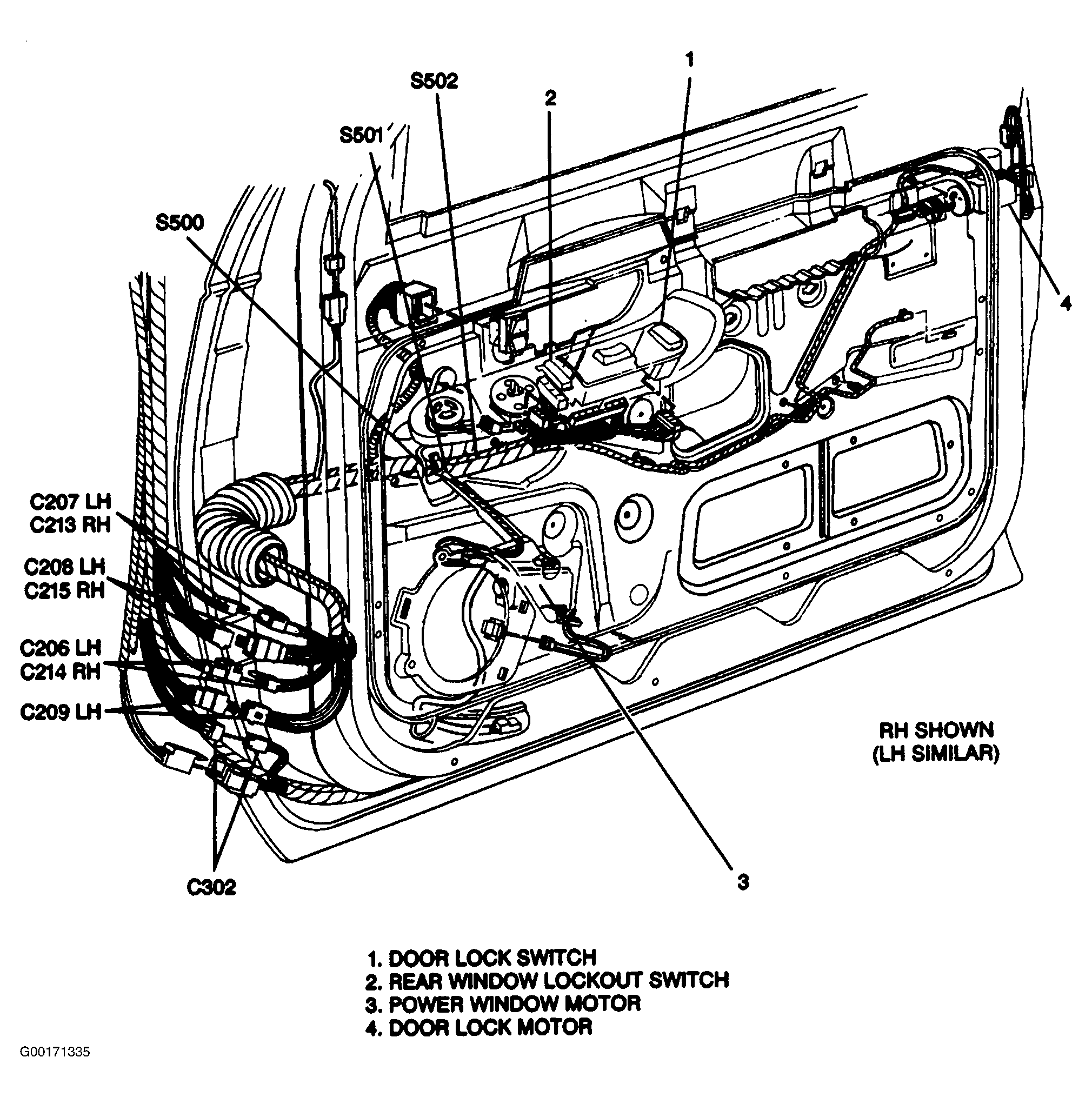

Fig 8: Exploded View Of Front Door Wiring
G00171335Courtesy of GENERAL MOTORS CORP.
