Pinout Description

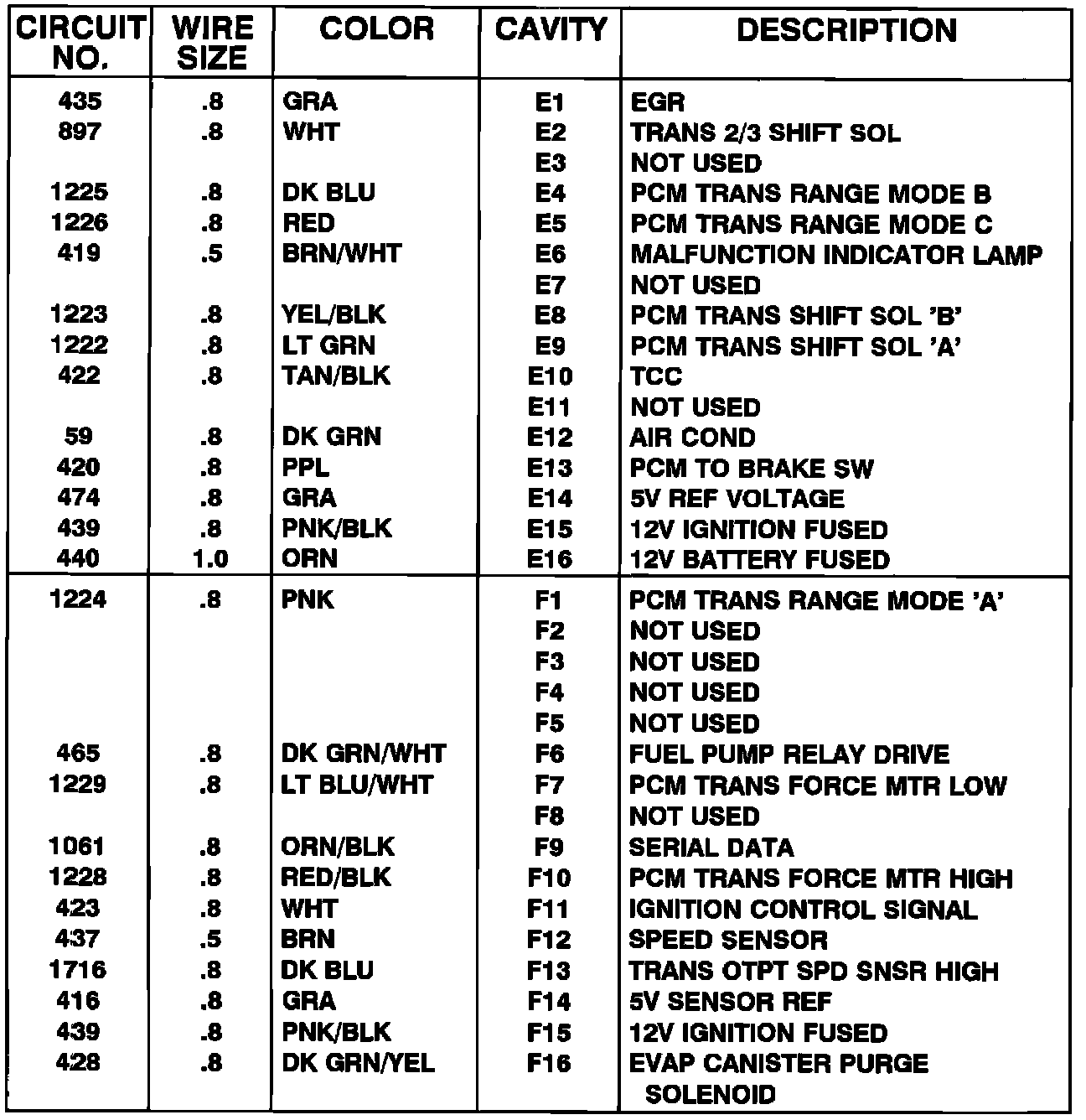

Powertrain Control Module Pinouts - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:

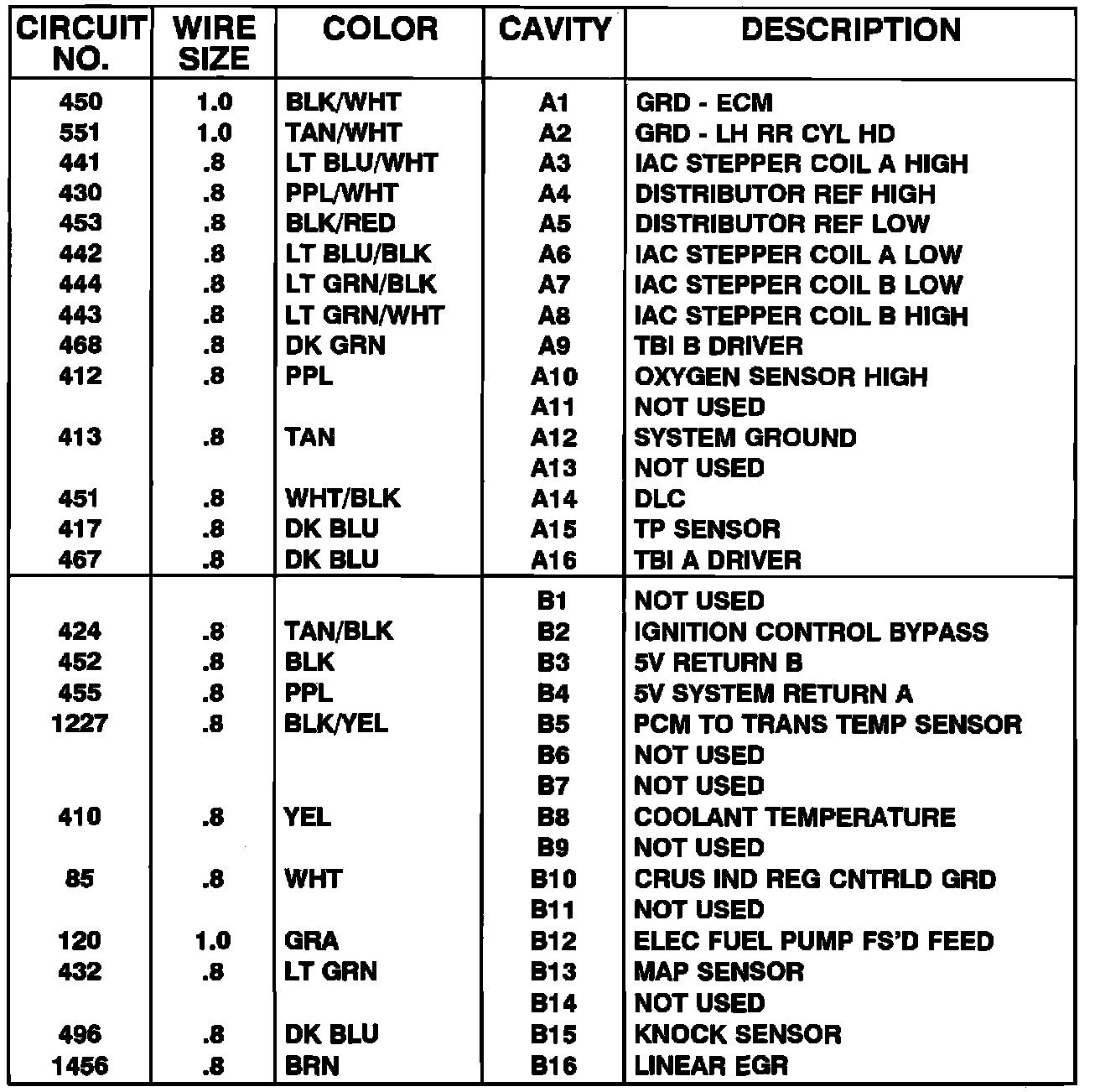

Powertrain Control Module Pinouts - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:
