Cruise Control Module: Service and Repair

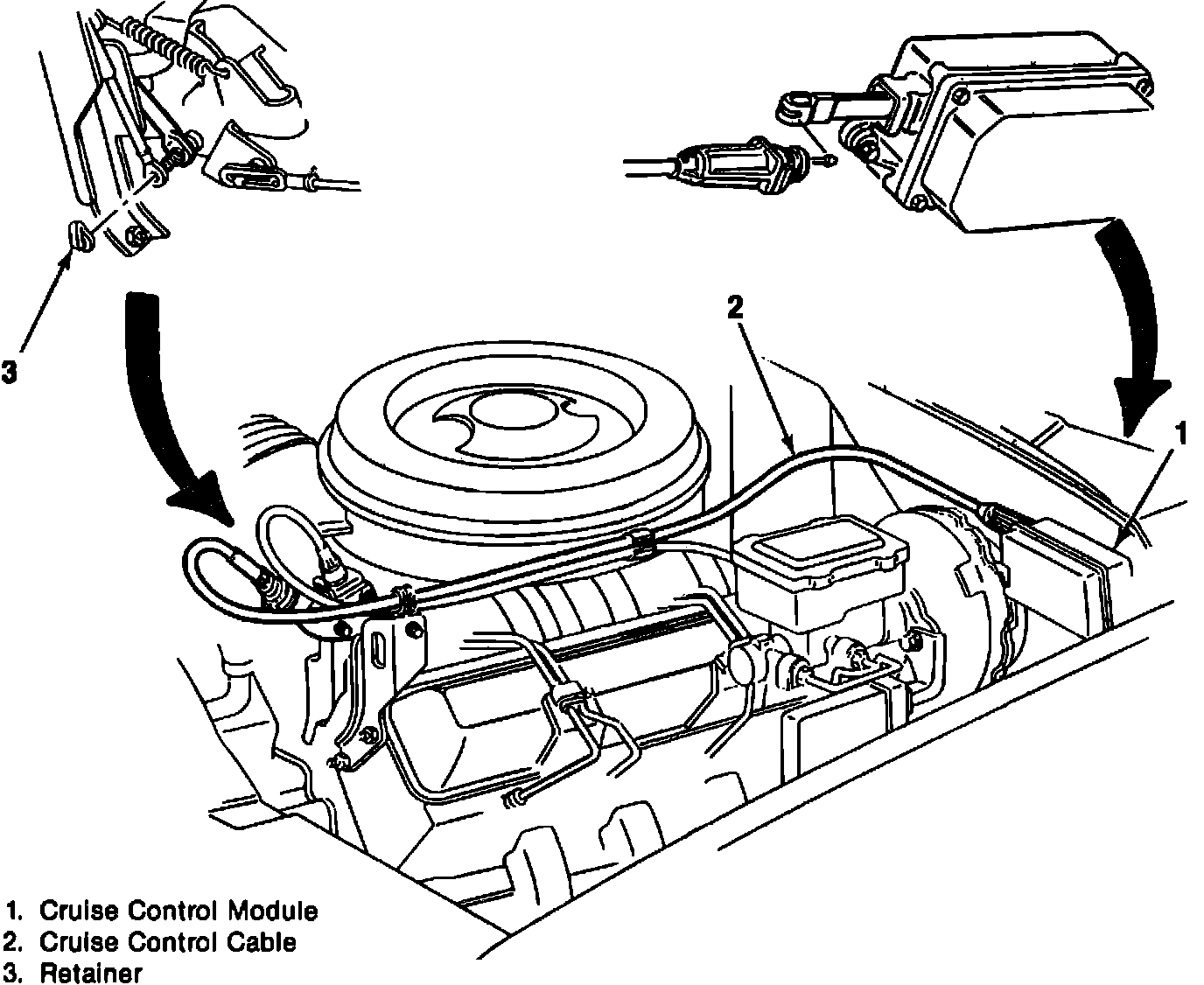

Fig. 15 Cruise control module & cable replacement:

Fig. 16 Cruise control module & cable replacement:

1. Disconnect battery ground cable.
2. Disconnect cruise control cable from module, Figs. 15 and 16.
3. Remove module attaching screws, then disconnect electrical connector and remove module. The module cannot be serviced.
4. Reverse procedure to install.
