Home >> GMC >> 1993 >> Typhoon V6-262 4.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry

Keyless Entry

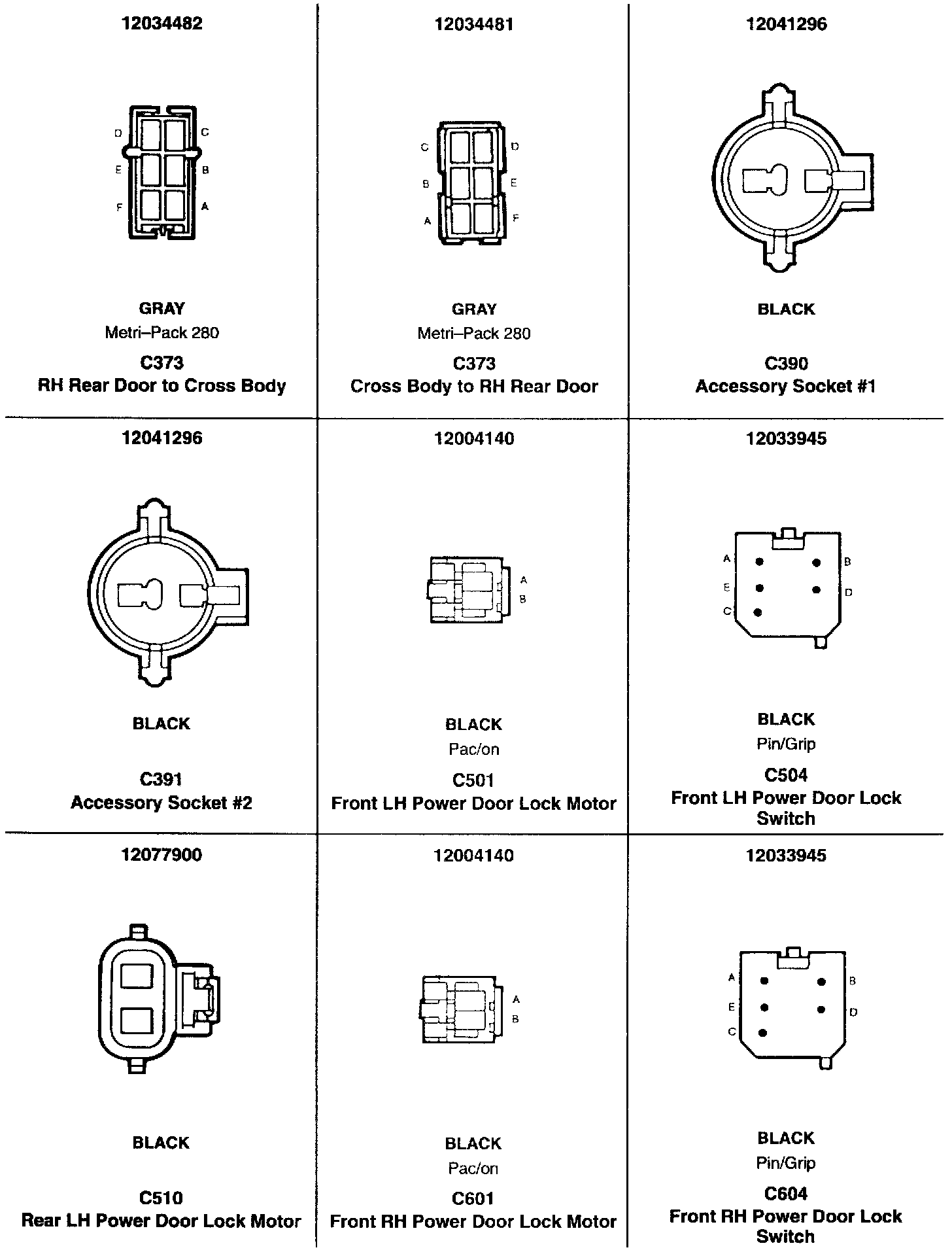

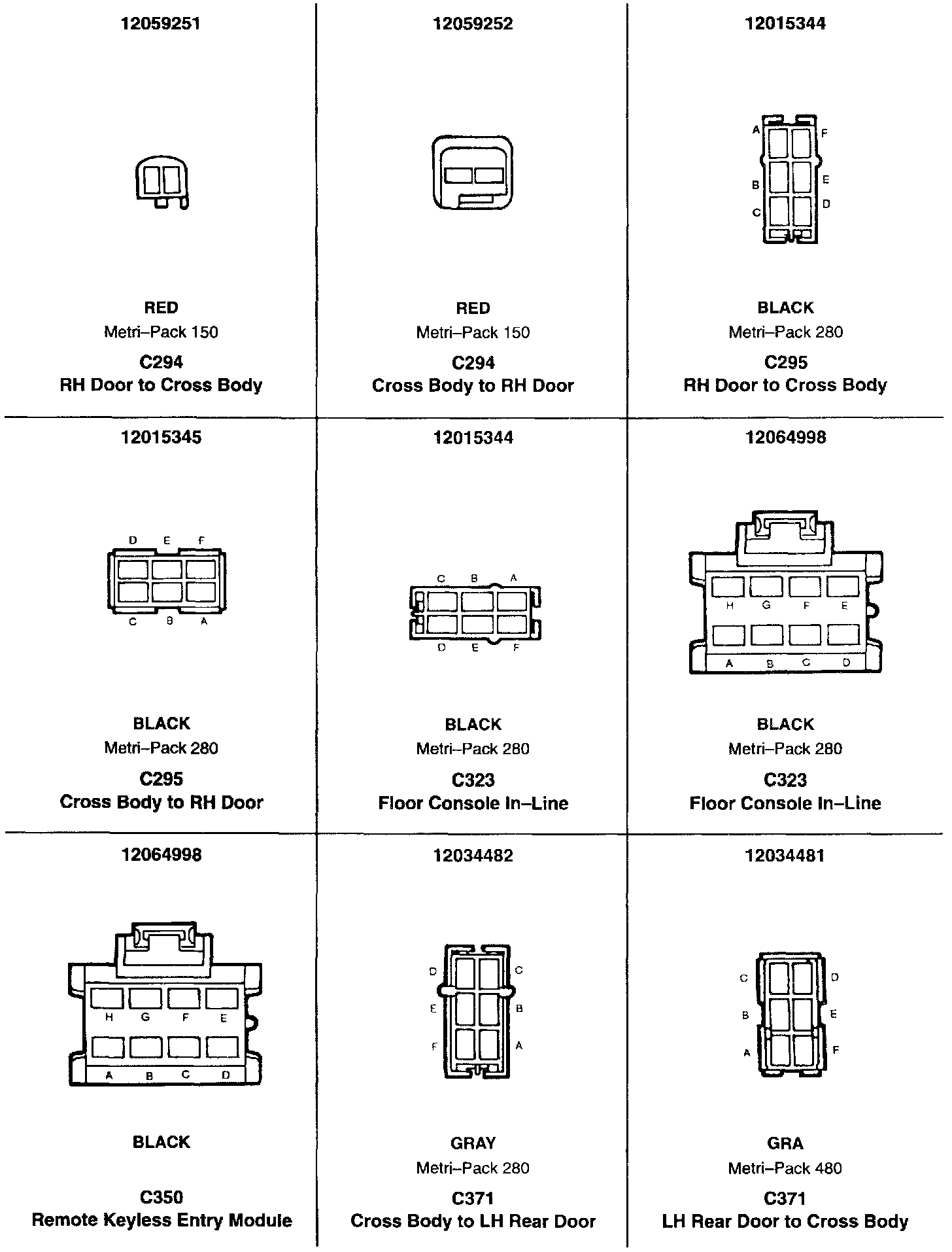

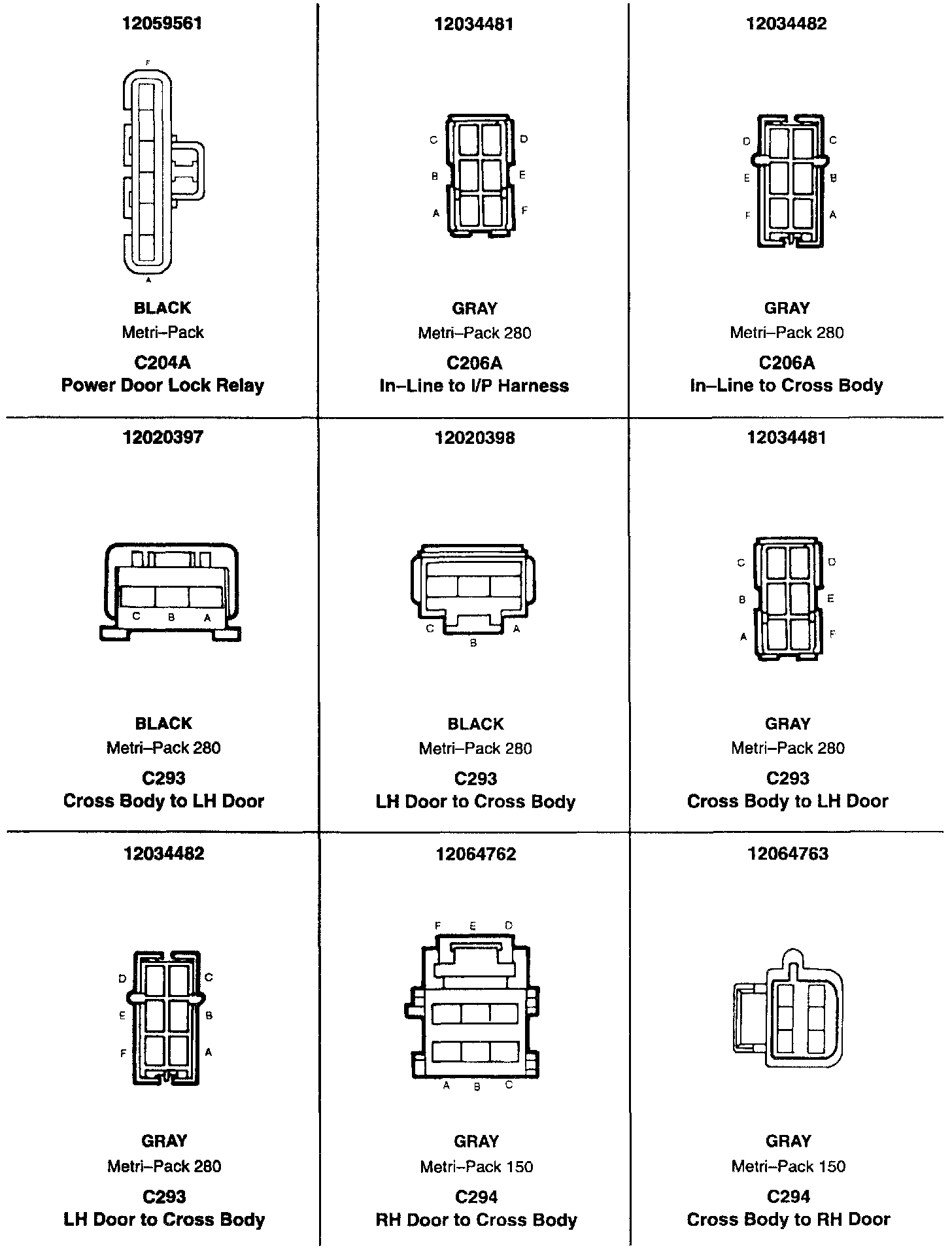

Connector Views:



Connector Views:



Connector Views:



Connector Views:
