Keyless Entry

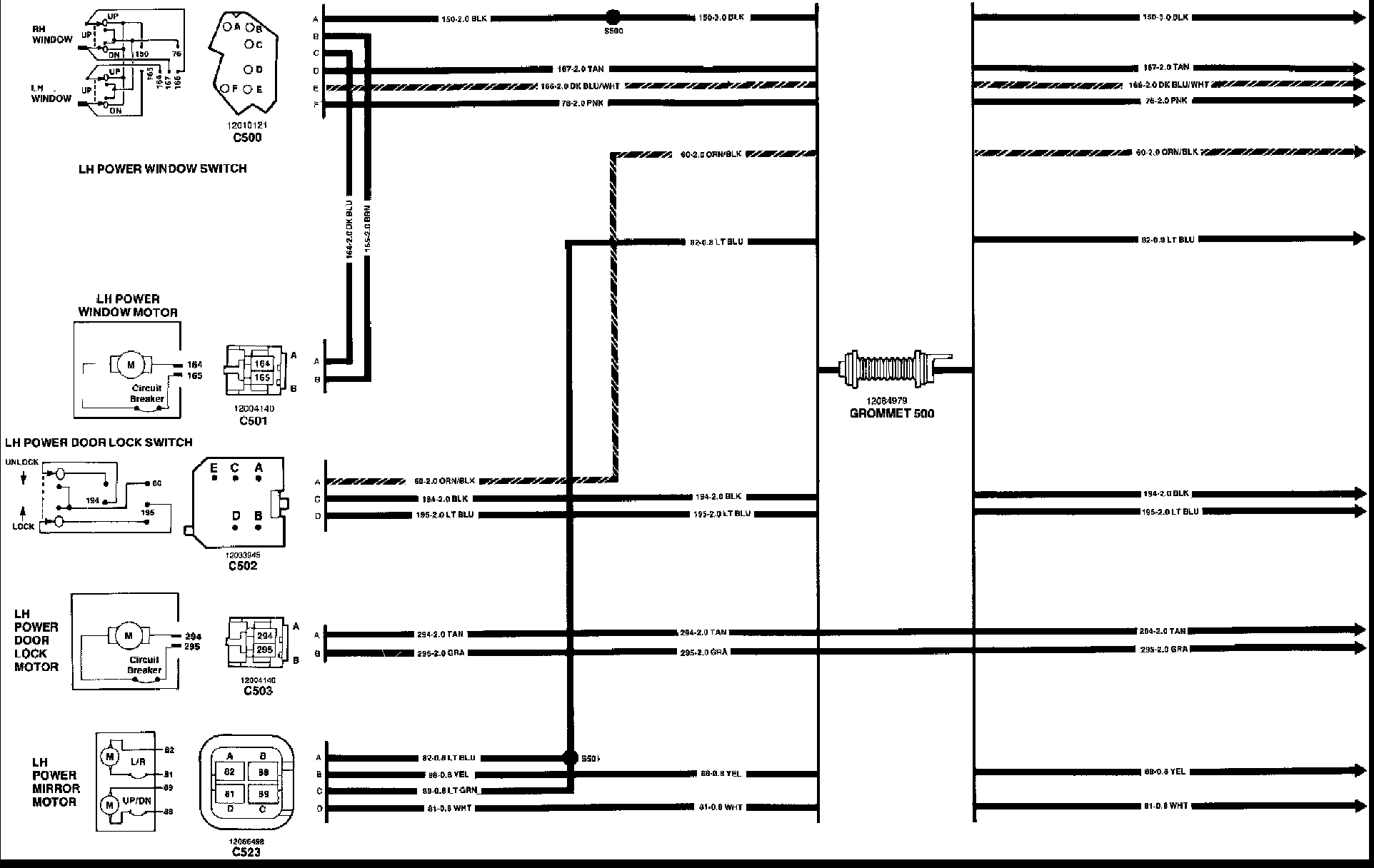

Left Door Harness Wiring Circuit:

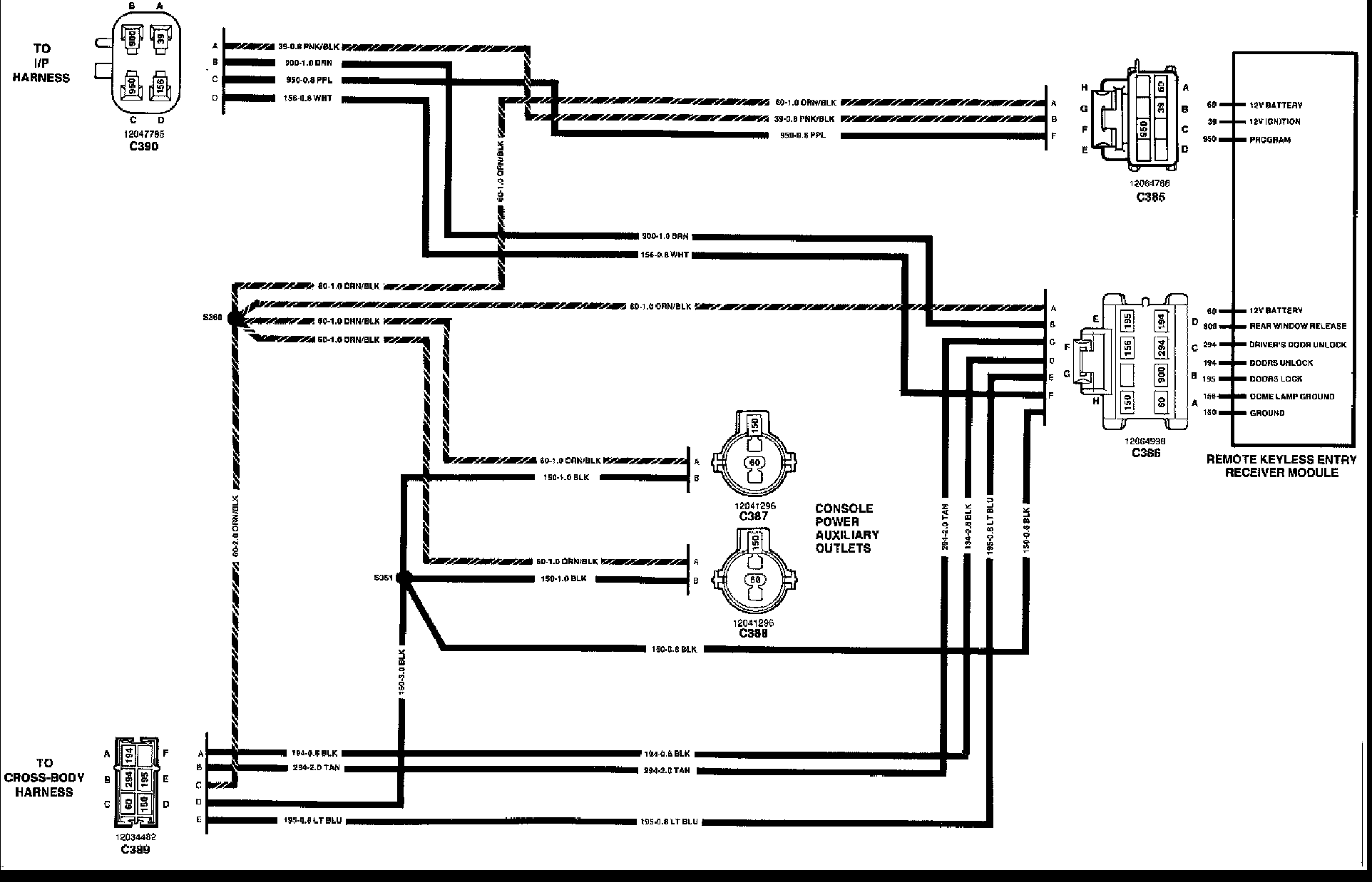

Remote Keyless Entry Harness Wiring Circuit:

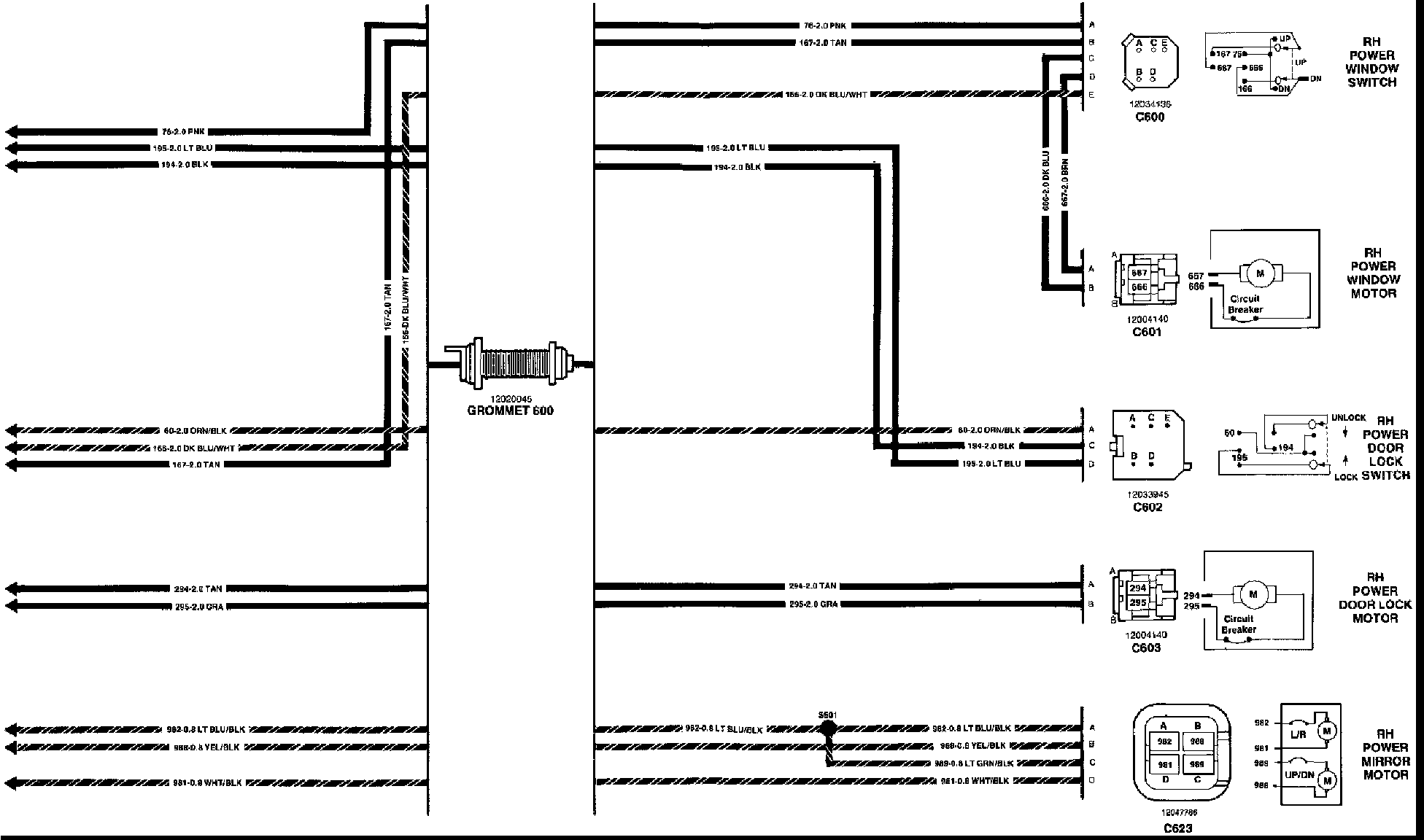

Right Door Harness Wiring Circuit:

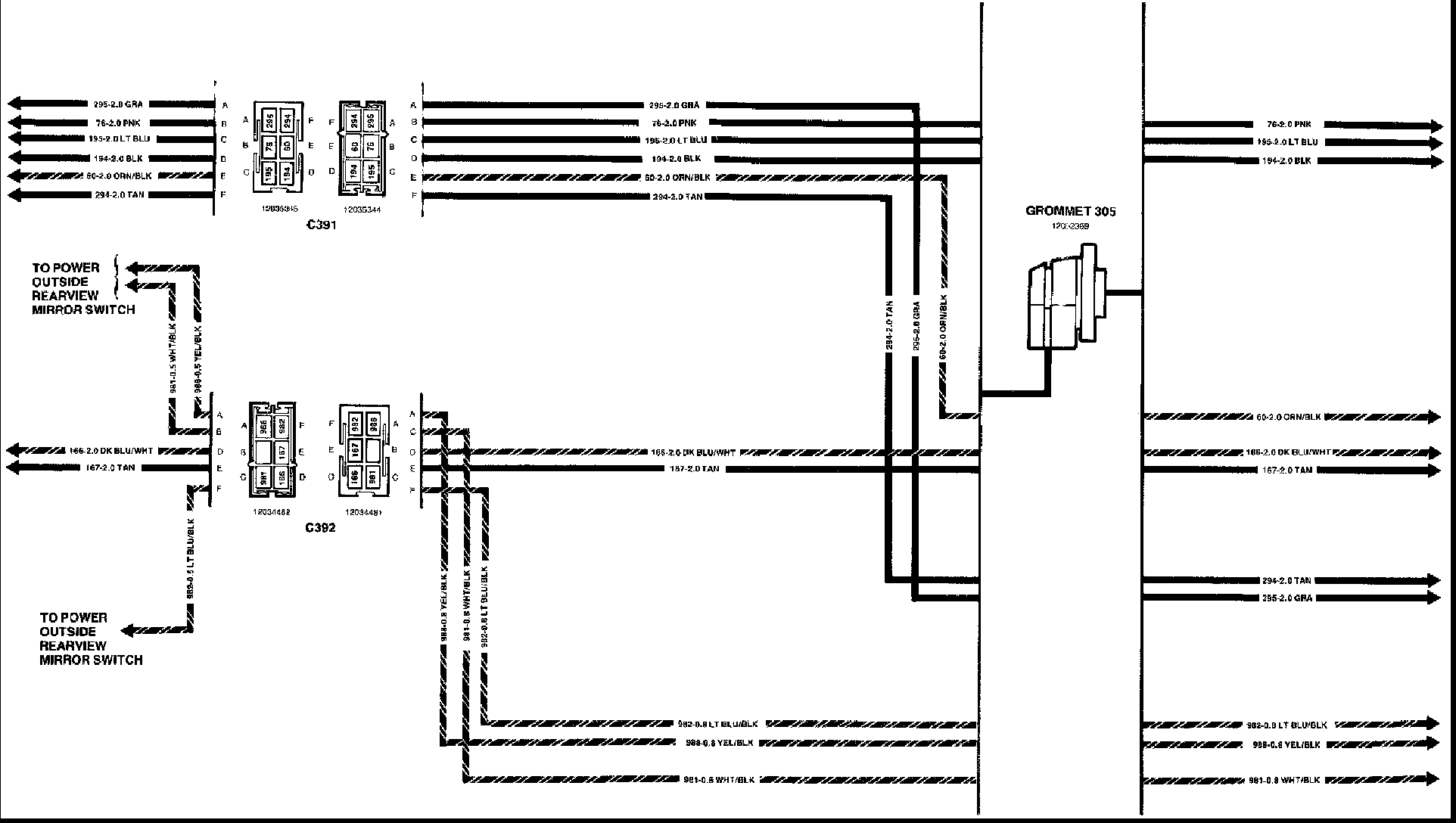

Cross-Body Harness/Right Door Harness Wiring Circuit:

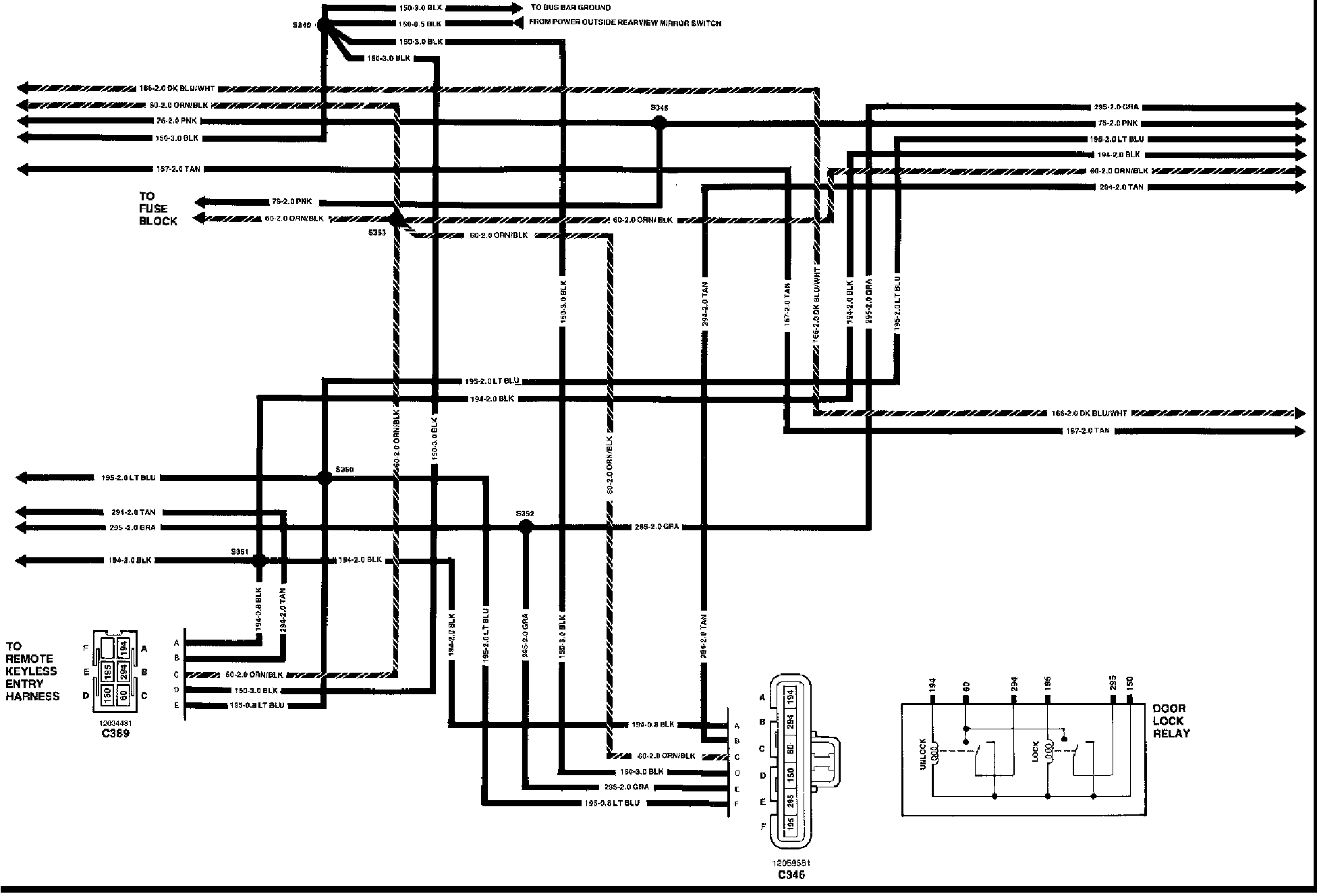

Cross-Body Harness Wiring Circuit:

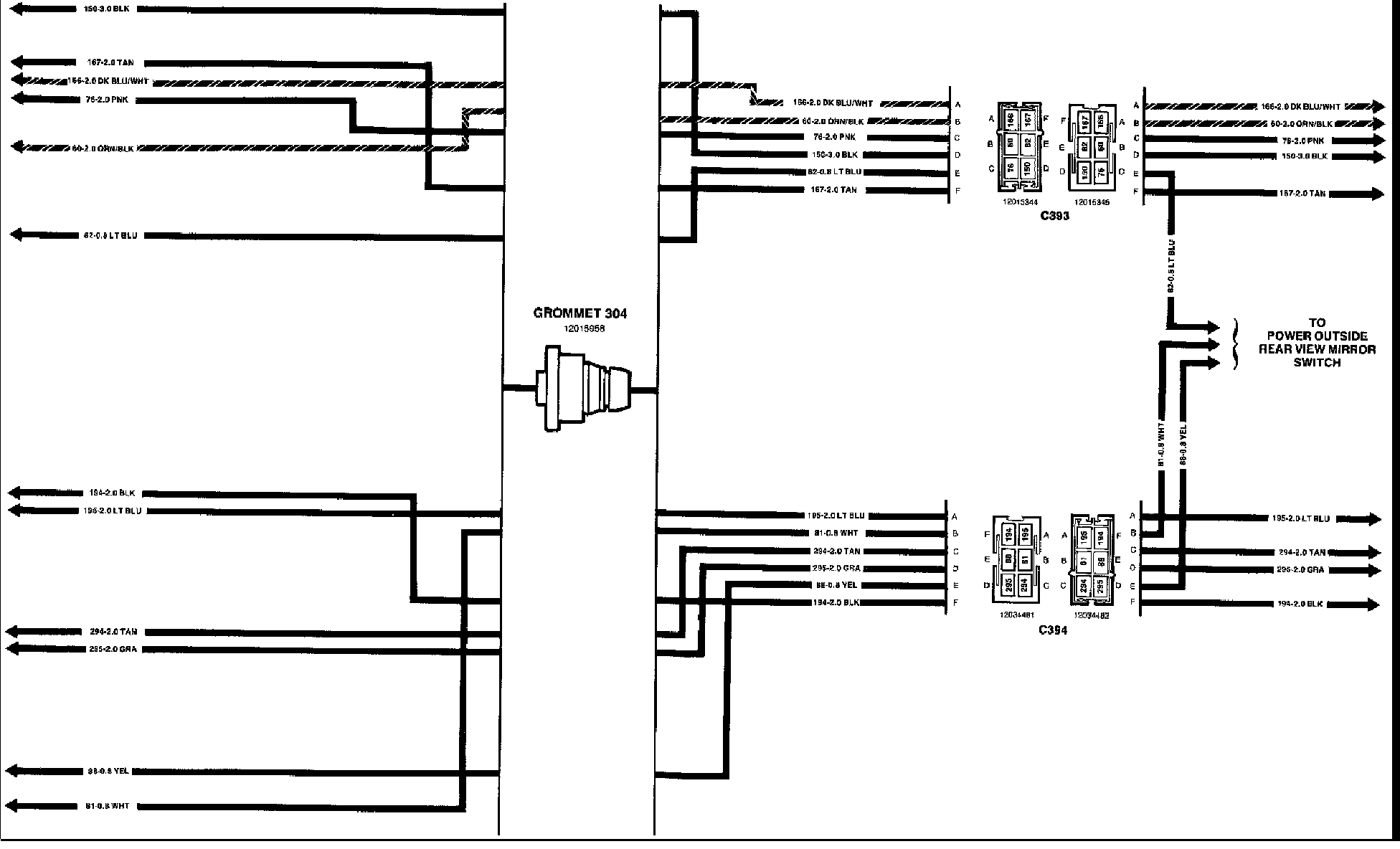

Left Door Harness/Cross-Body Harness Wiring Circuit:
