Heating and Air Conditioning: Diagrams

Vacuum Tank And Lines:

VACUUM LINES - ENGINE COMPARTMENT

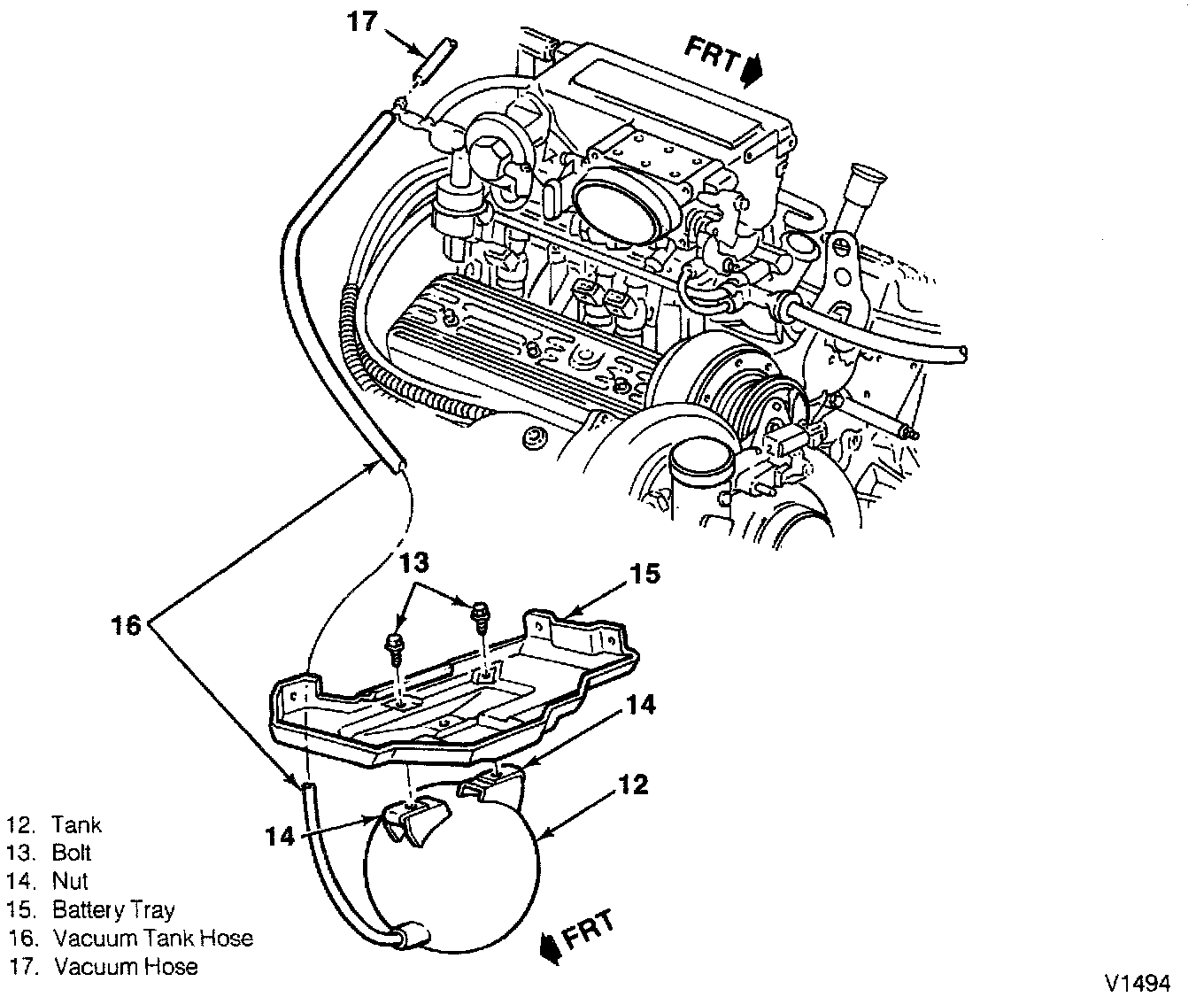

For vacuum line routing, refer to accompanying figure. The vacuum tank hose (16) is routed along the right side of engine to vacuum tank (12) under battery tray (15). The vacuum hose (17) is routed into cowling with wiring harness.
