Home >> GMC >> 1987 >> S15/T15 2WD Jimmy L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuse Block

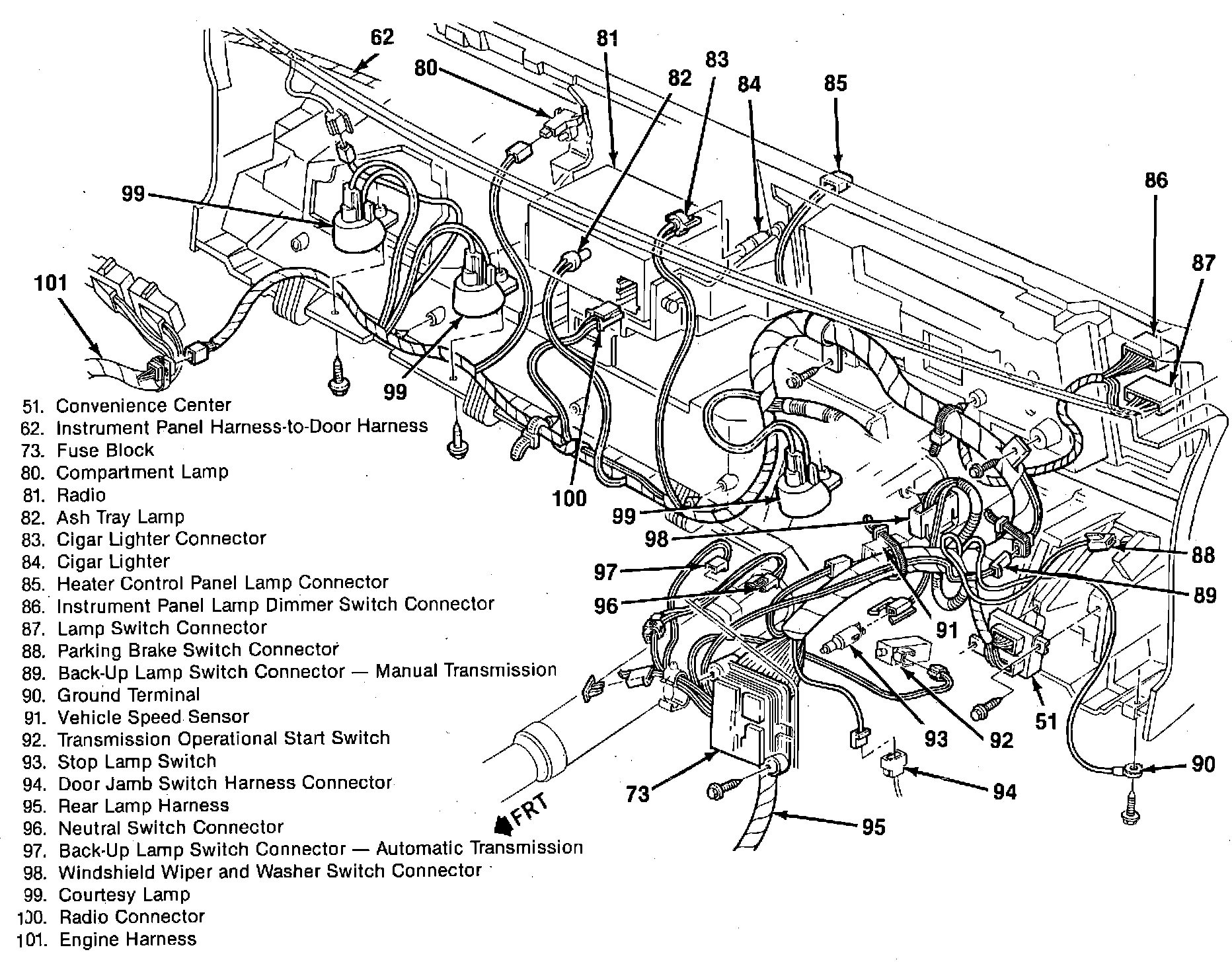

Fuse Block

I/P Components:




Behind I/P
