Engine Specifications

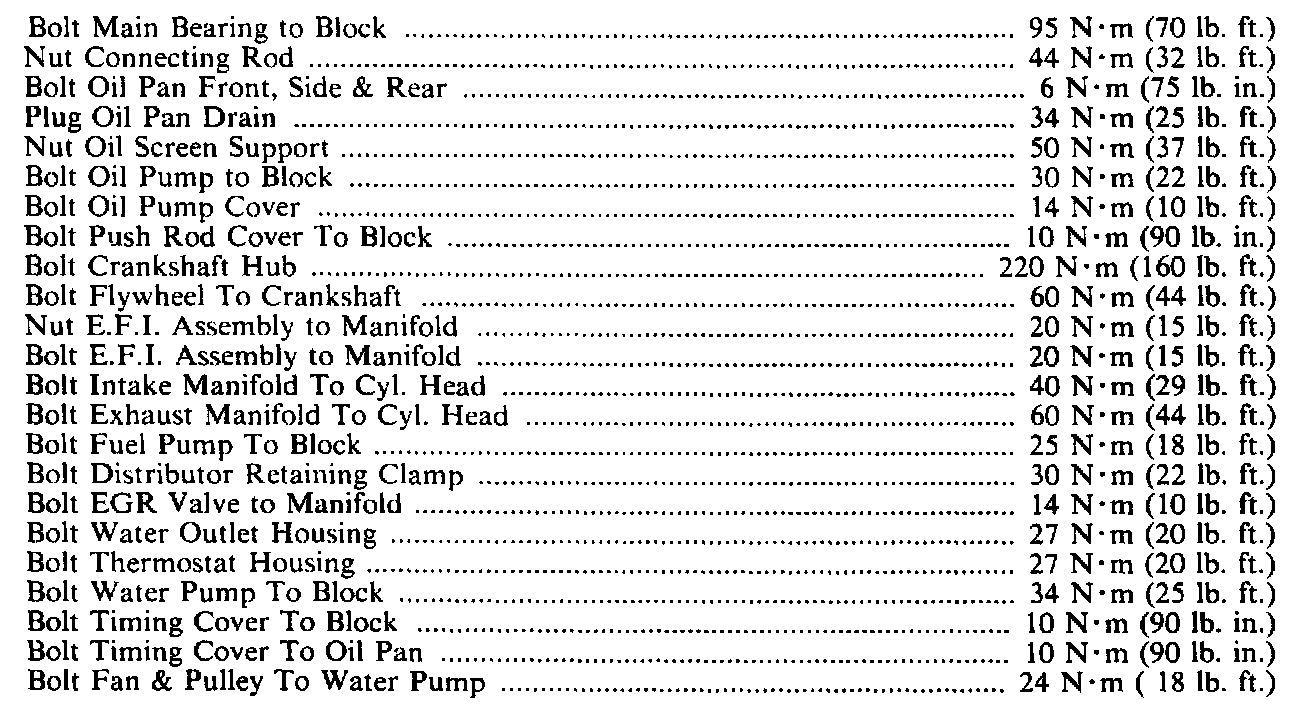

Torque Specifications:





Continued Torque Specifications:

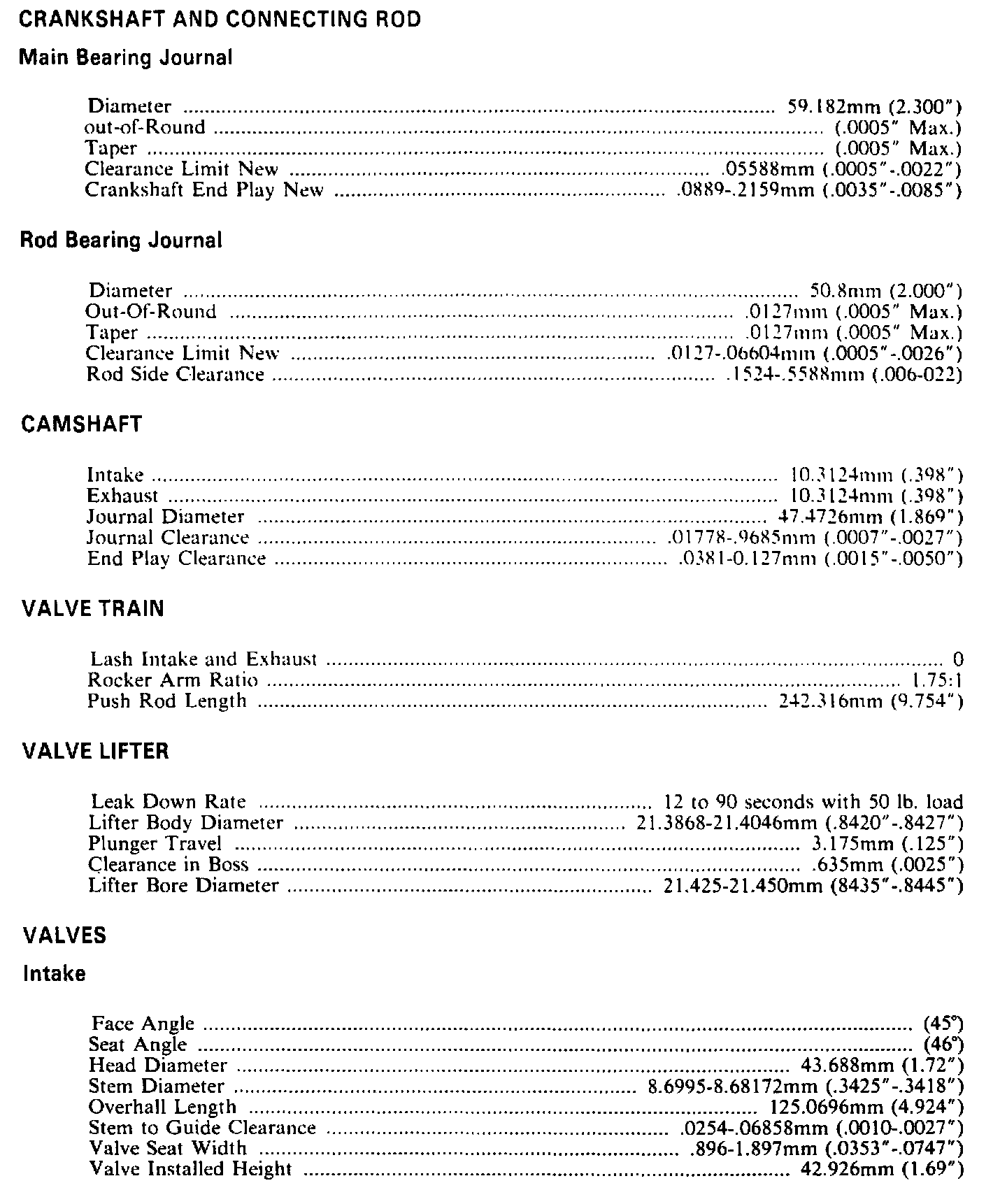

Engine Specifications:

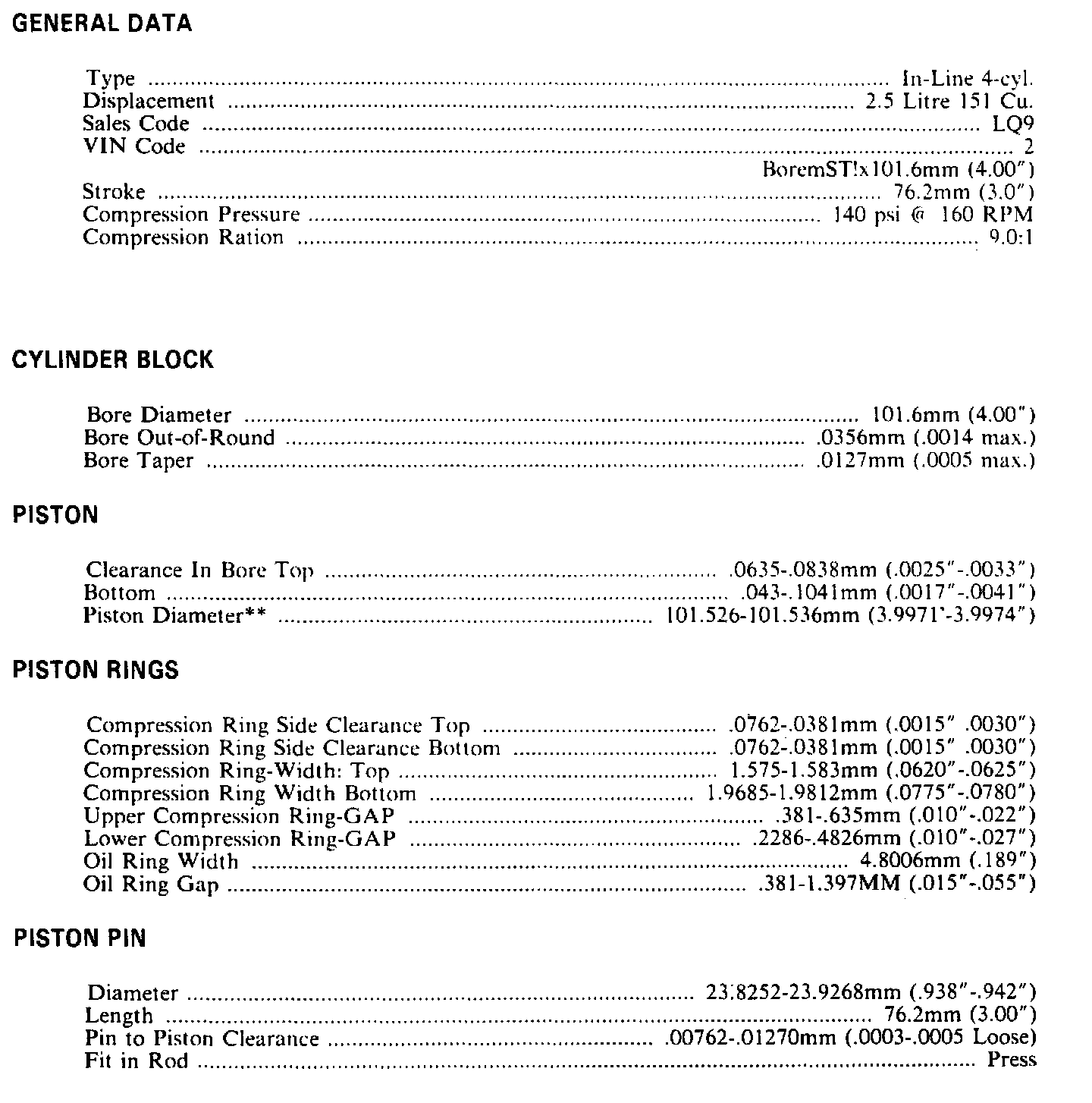

Continued Engine Specifications:

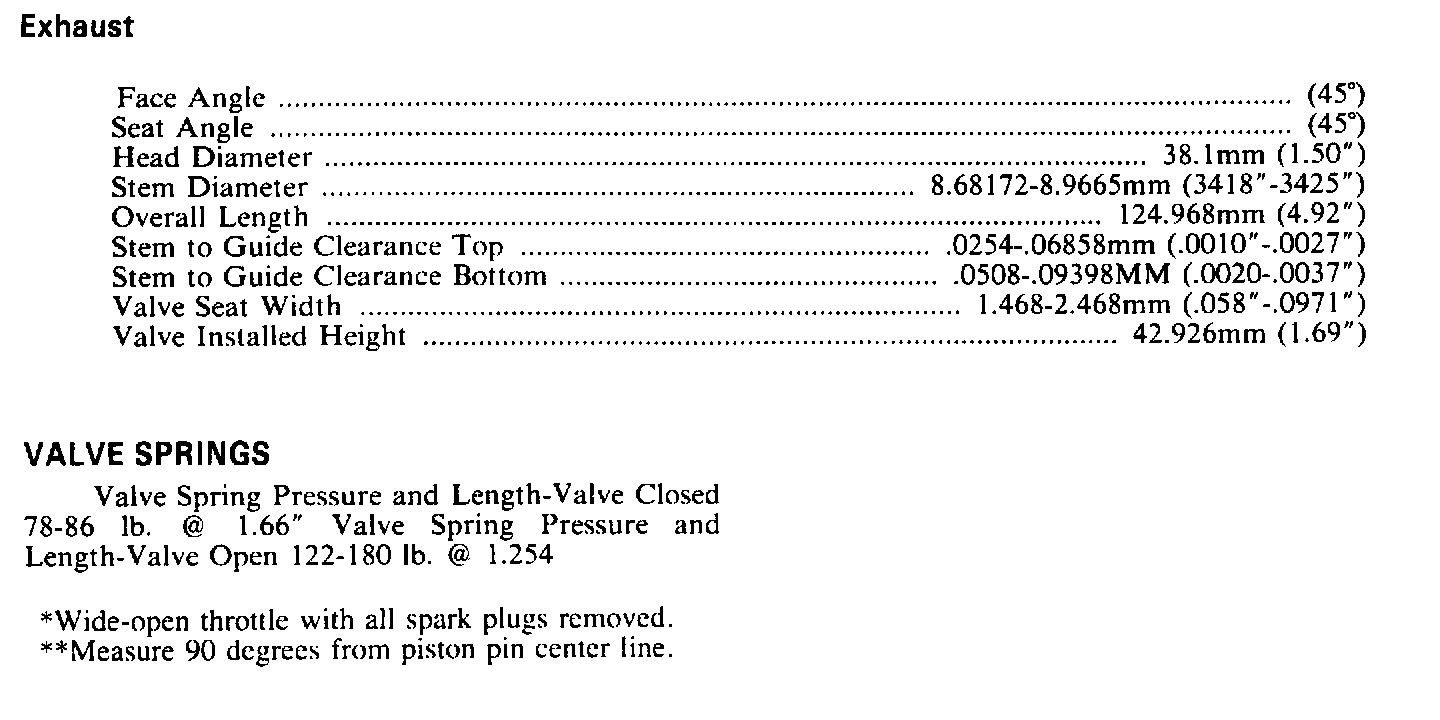

Continued Engine Specifications:

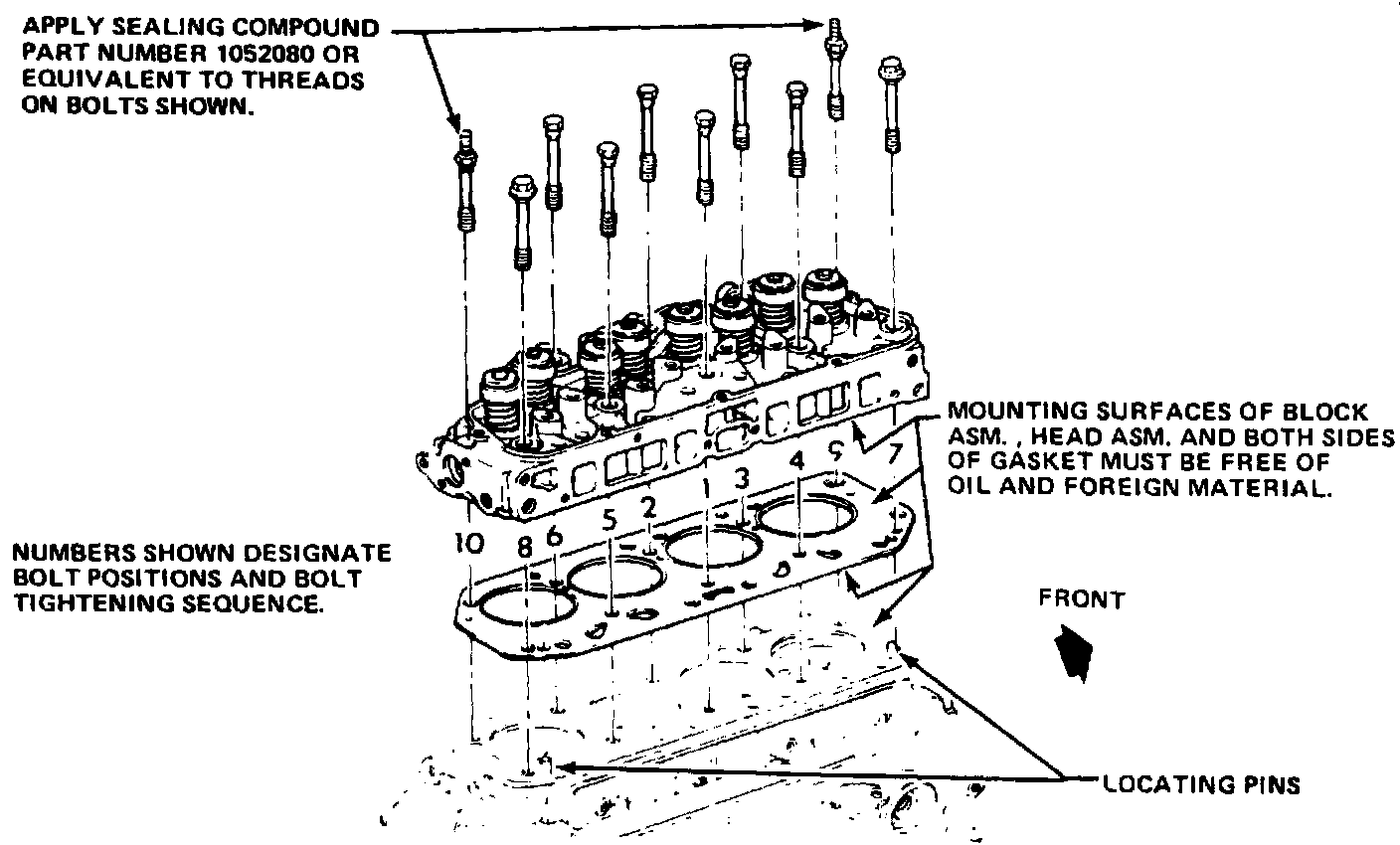

Cylinder Head Sequence:
