Engine Specifications

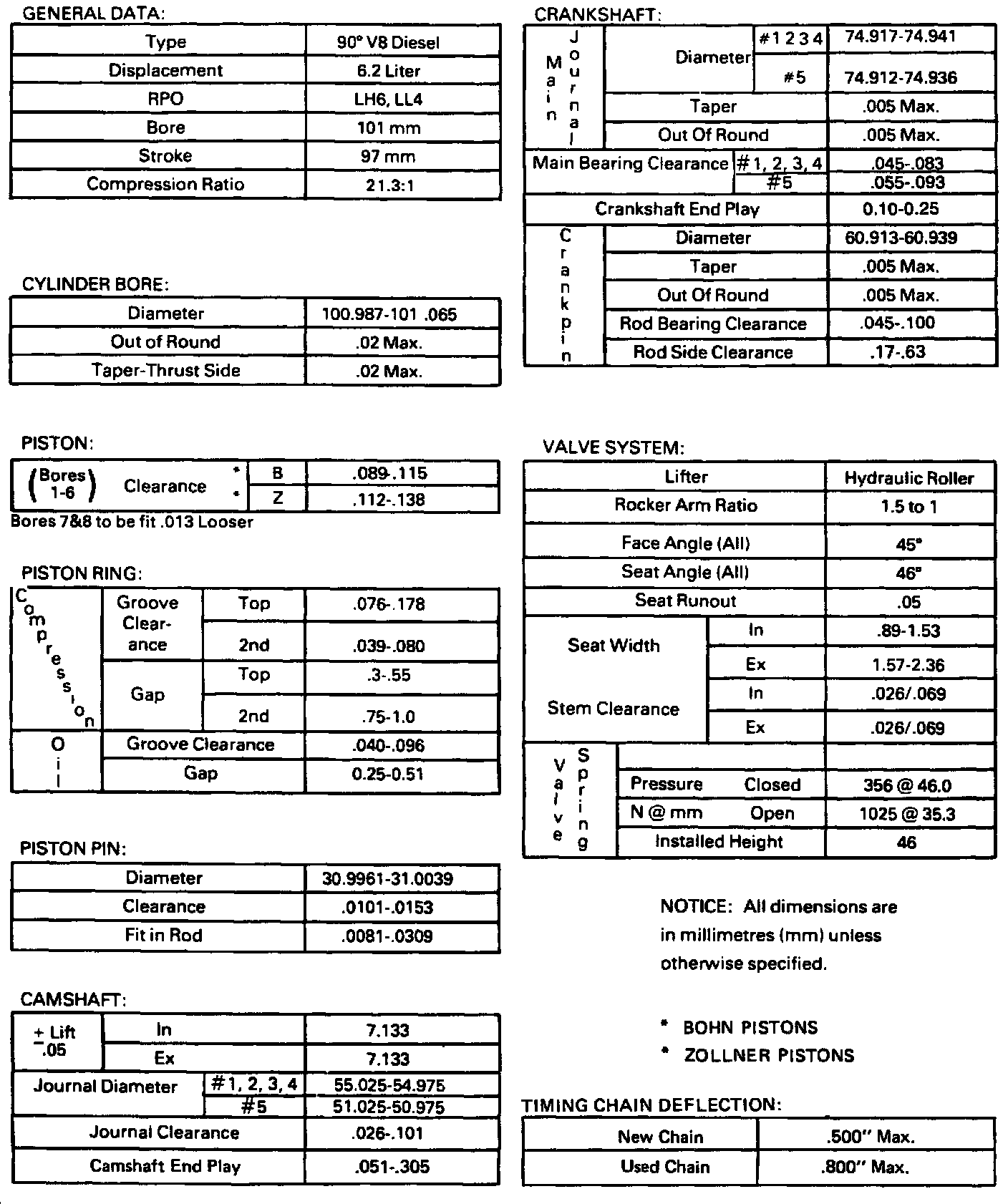

Engine Specifications:

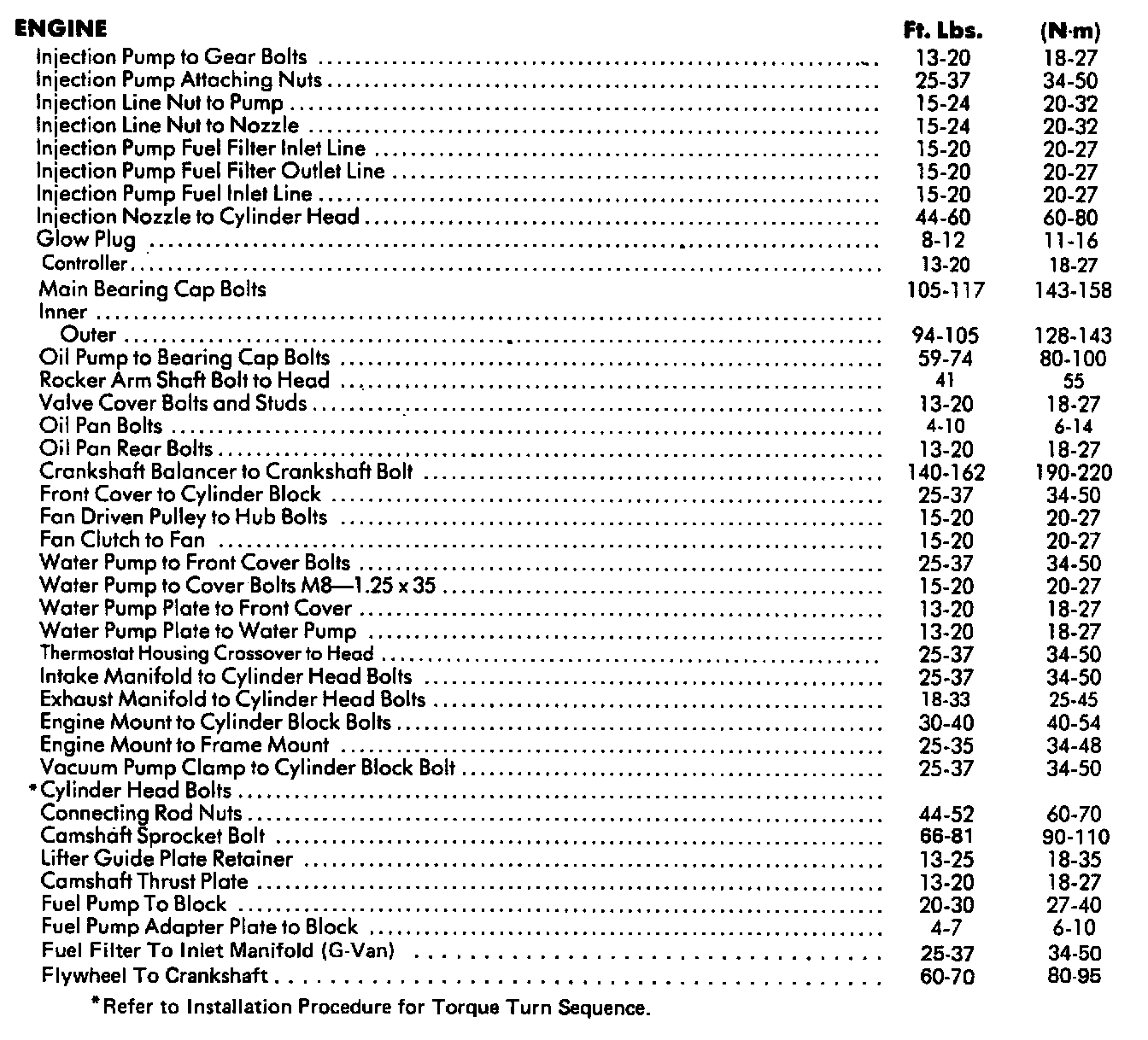

Torque Specifications:






Intake Manifold Sequence:





Cylinder Head Sequence:
