Home >> GMC >> 1985 >> Jimmy Full Size V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

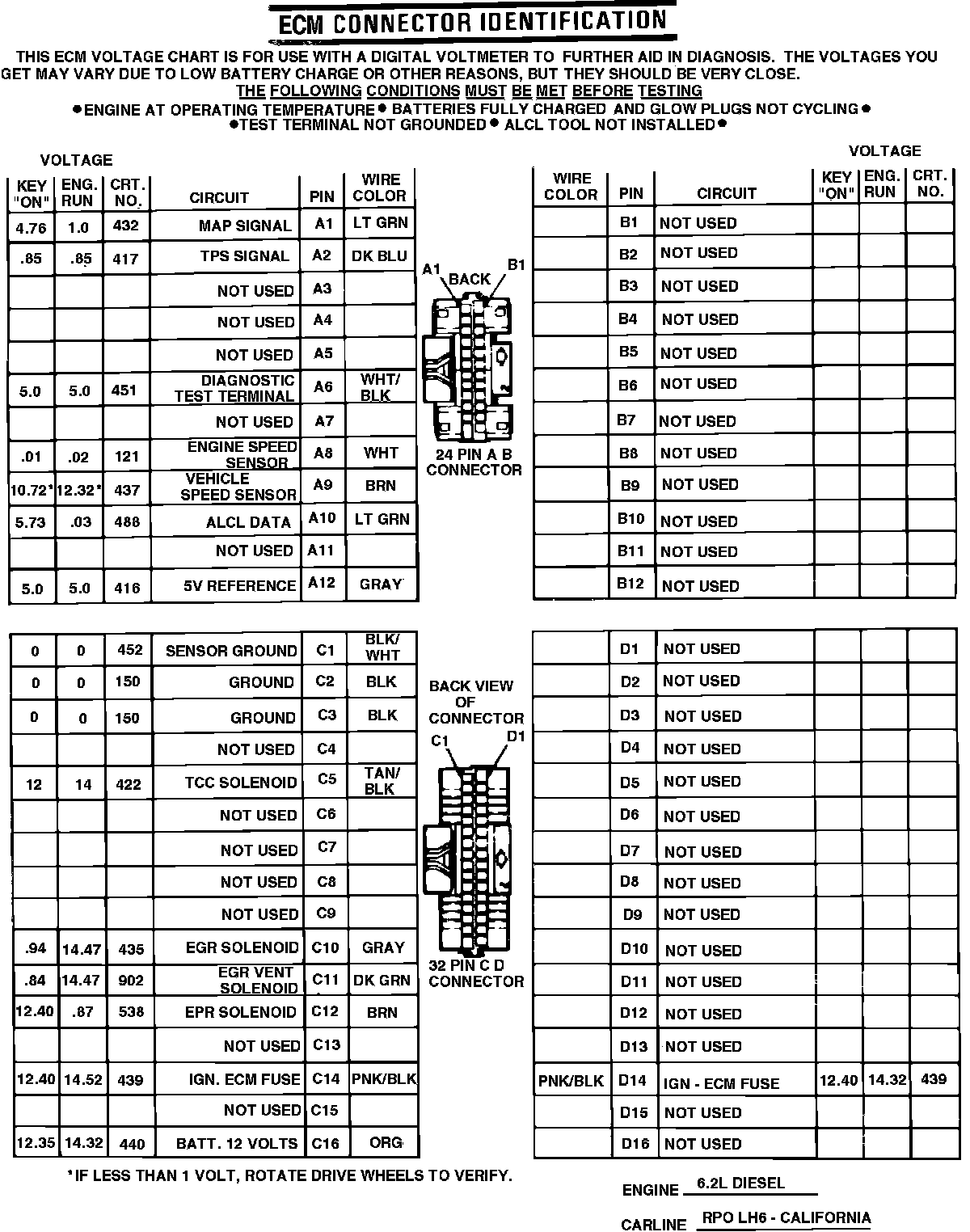

Fig. 20 ECM connector terminal identification & voltage specifications. 1985:
