Home >> GMC >> 1984 >> Jimmy Full Size V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Components

Components

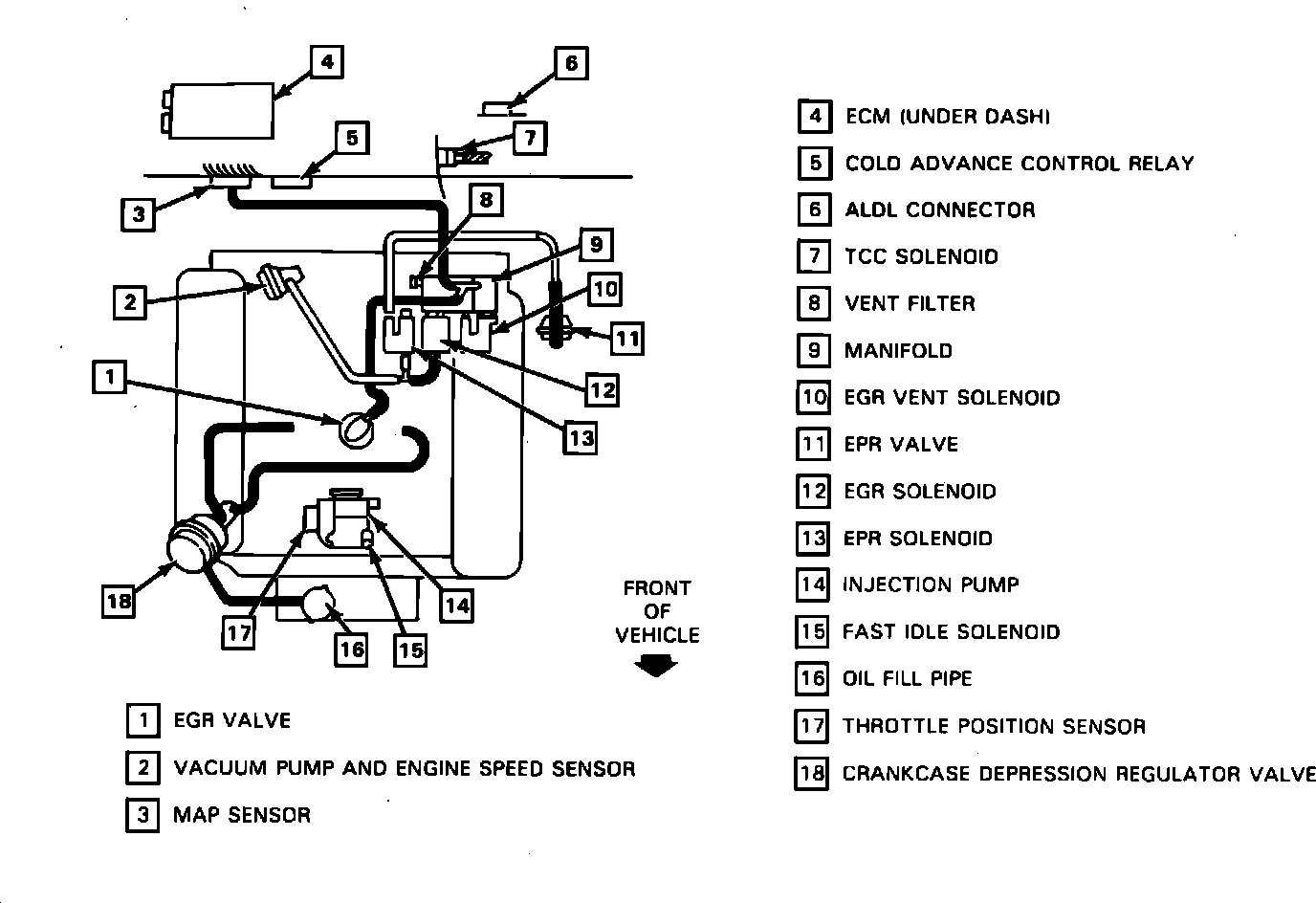

Engine Components.:




RH Side Of Dash Panel

Applicable to: 1984 CK Series w/6.2L Diesel Engine, California
