Home >> Freightliner >> 2012 >> Sprinter 2500 V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

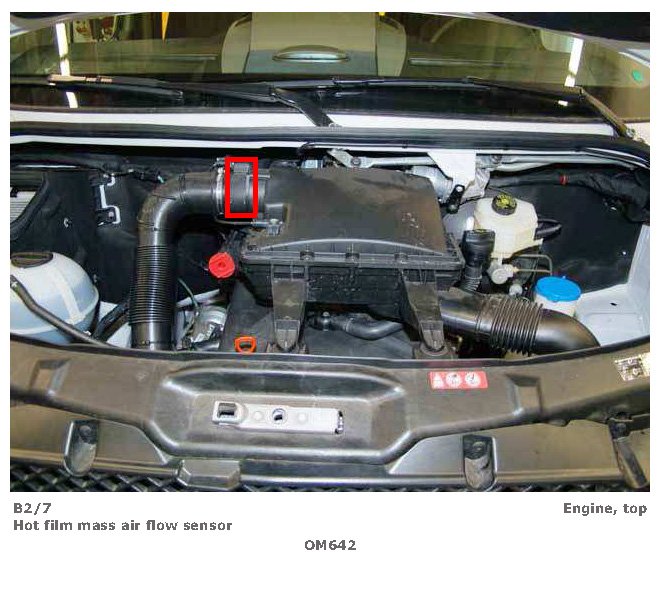

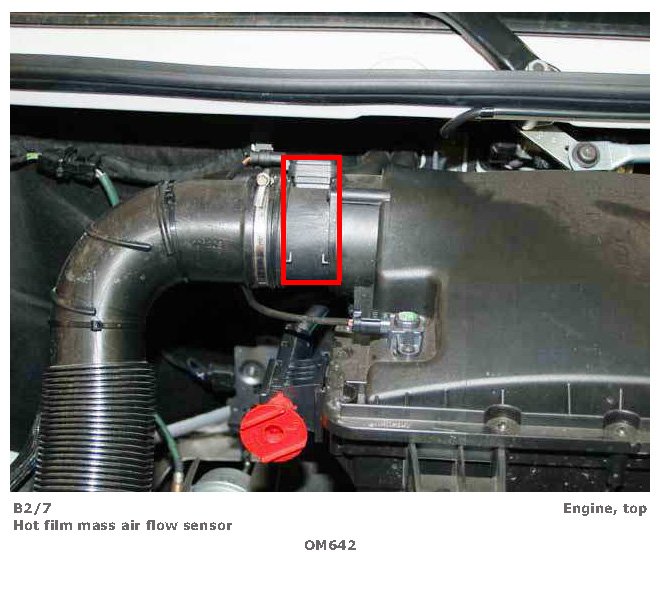

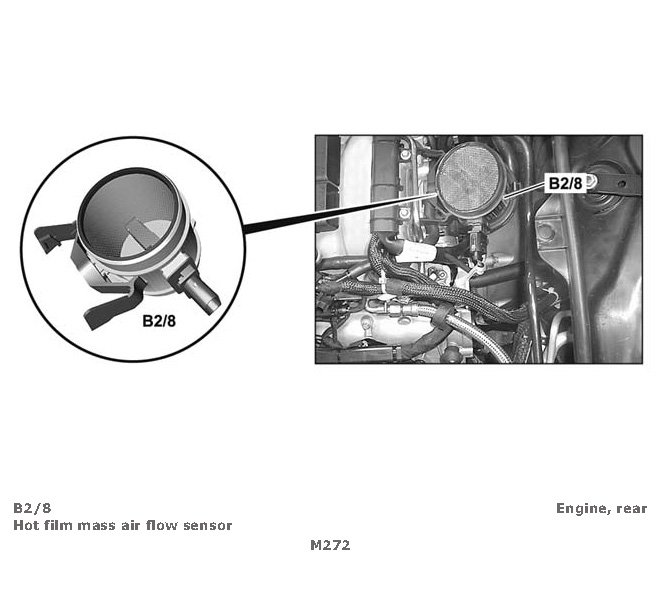

Hot Film Mass Air Flow Sensor
