Home >> Freightliner >> 2012 >> Sprinter 2500 V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column Control Module

Steering Column Control Module

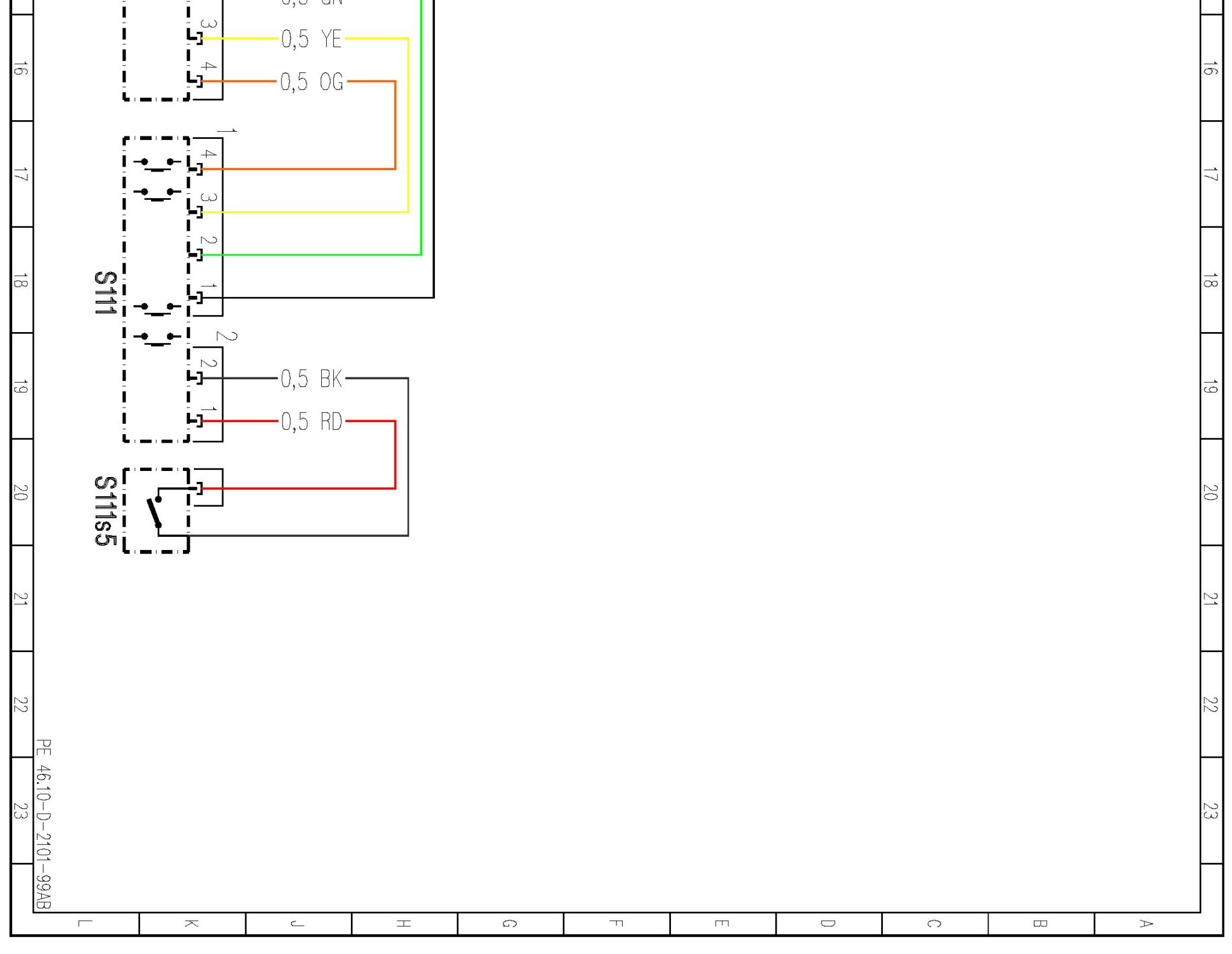

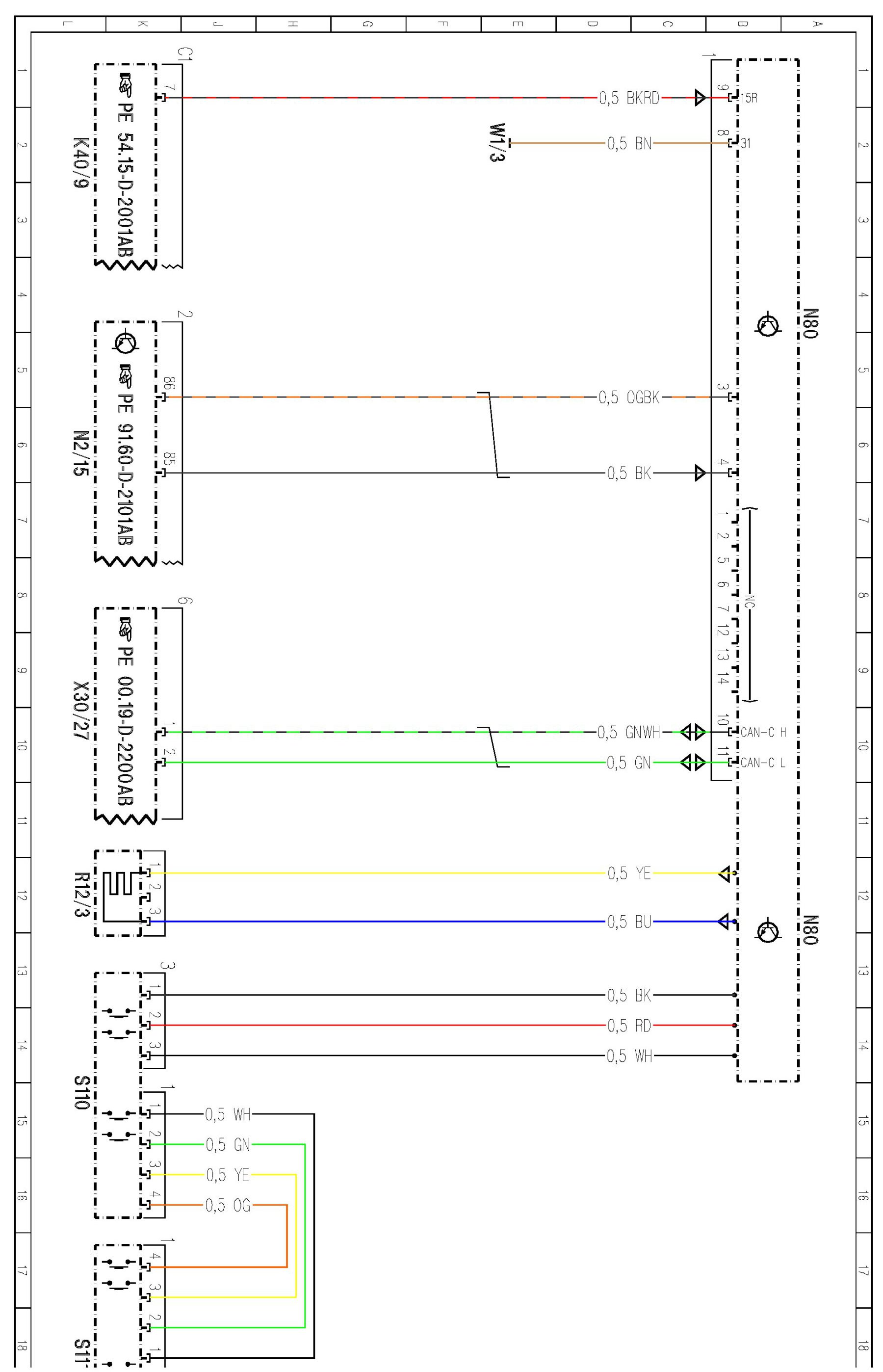

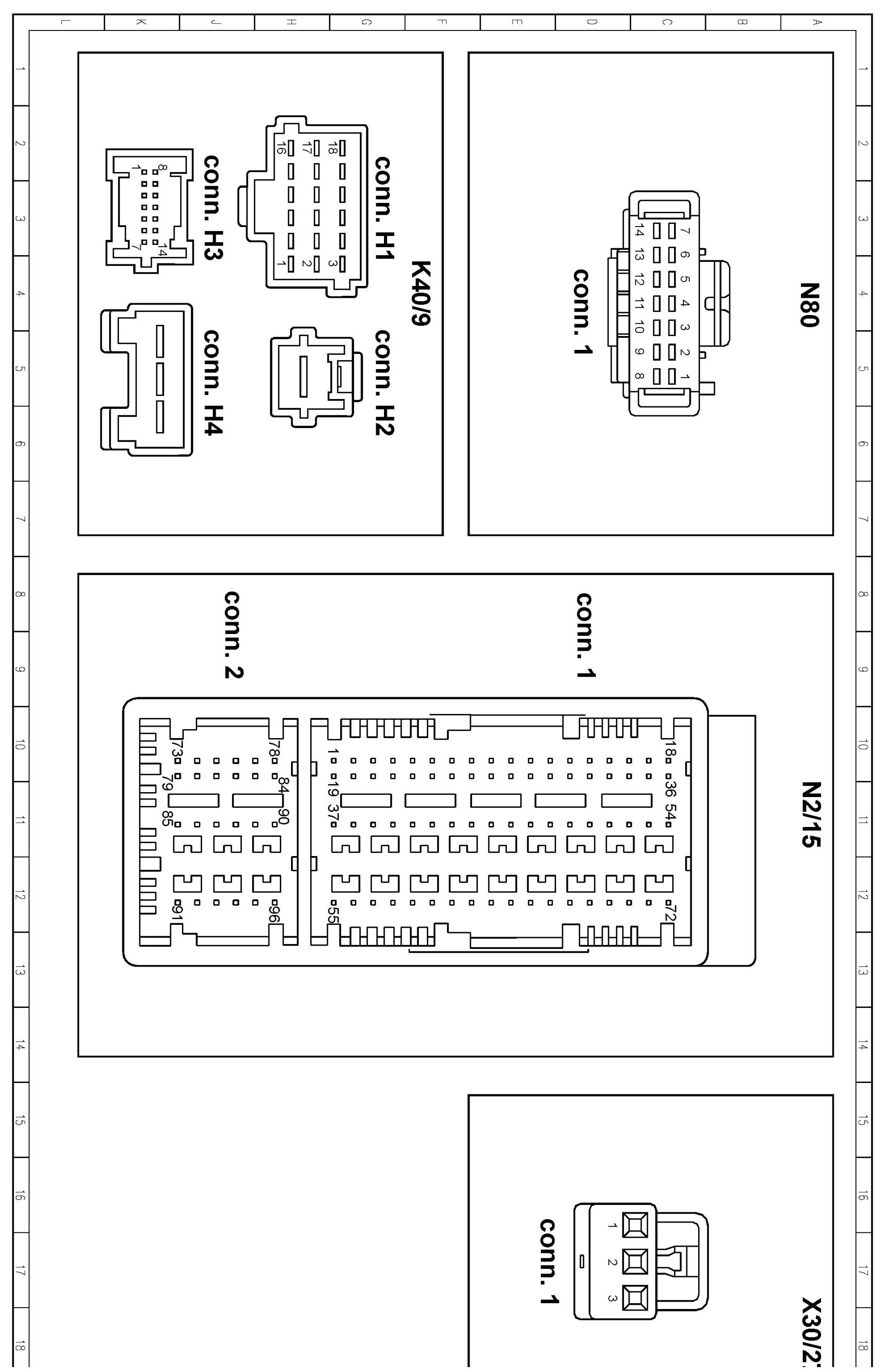

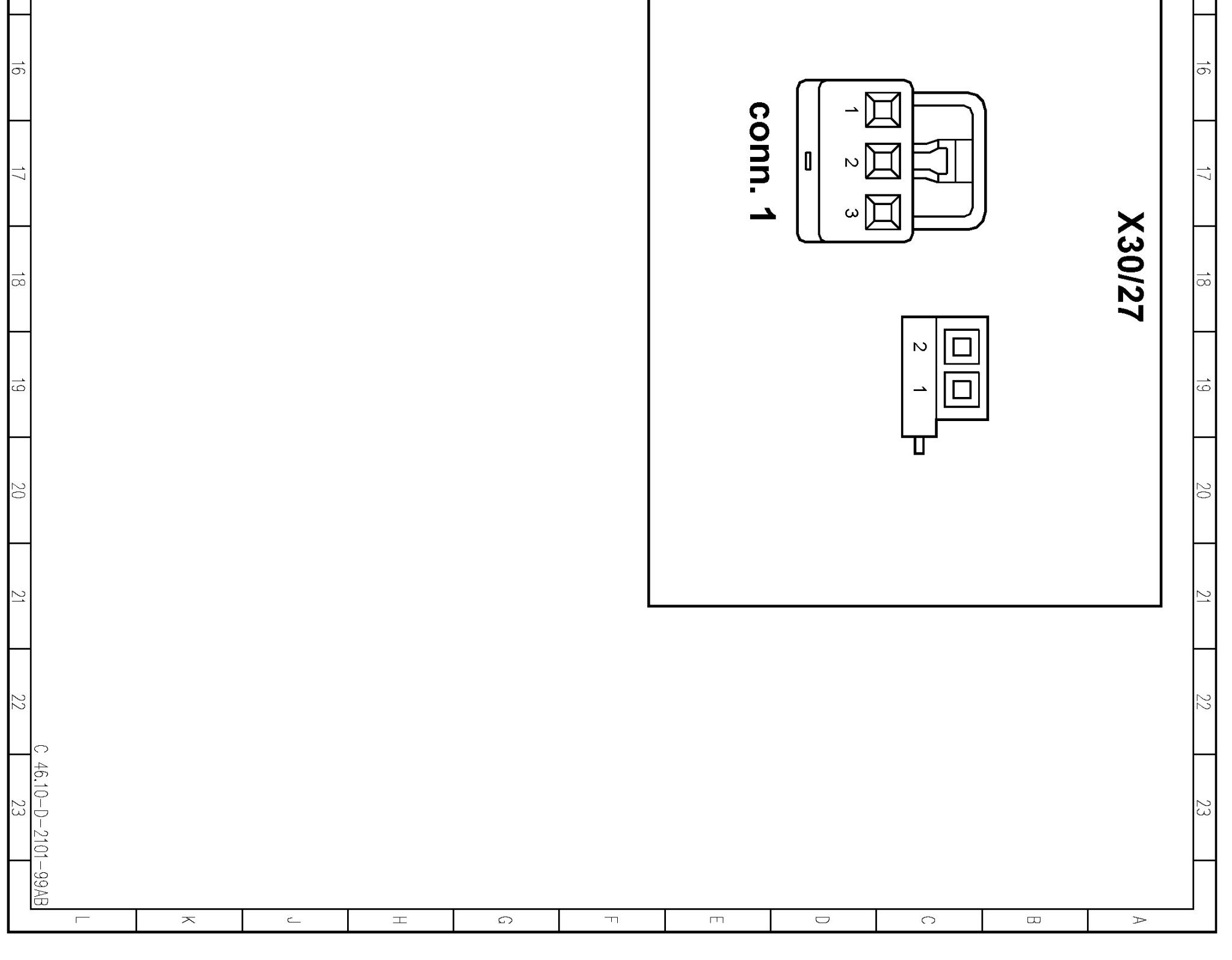

PE46.10-D-2101AB Steering Column Module Control Unit

906 46 Steering
Model 906.1 /2 /6 /7
