Home >> Freightliner >> 2009 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sliding Door >> Power Sliding Door Module >> Left Power Sliding Door Module C4 18 Way

Left Power Sliding Door Module C4 18 Way

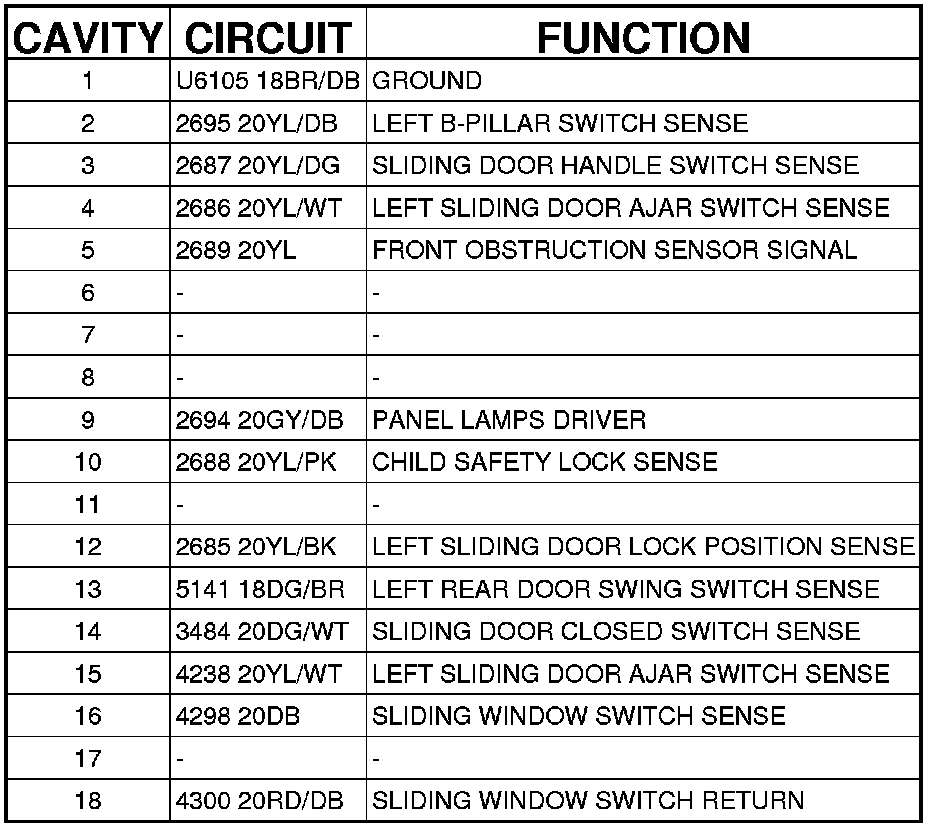

Connector C4 - 18 WAY




MODULE-POWER SLIDING DOOR-LEFT - 18 WAY
