Installation







INSTALLATION

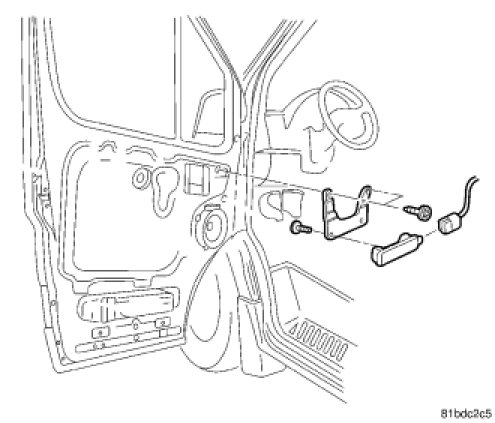

FRONT DOOR RKE ANTENNA





1. Install the antenna to the mounting bracket.
2. Install the antenna bracket and install the mounting fasteners.
3. Connect the electrical connectors.
4. Install the door trim panel. .
5. Connect the battery negative cable.

SLIDING DOOR RKE ANTENNA

1. Install the antenna to the mounting bracket.
2. Install the antenna bracket and install the mounting fasteners.
3. Connect the electrical connectors.
4. Install the door trim panel. .
5. Connect the battery negative cable.
