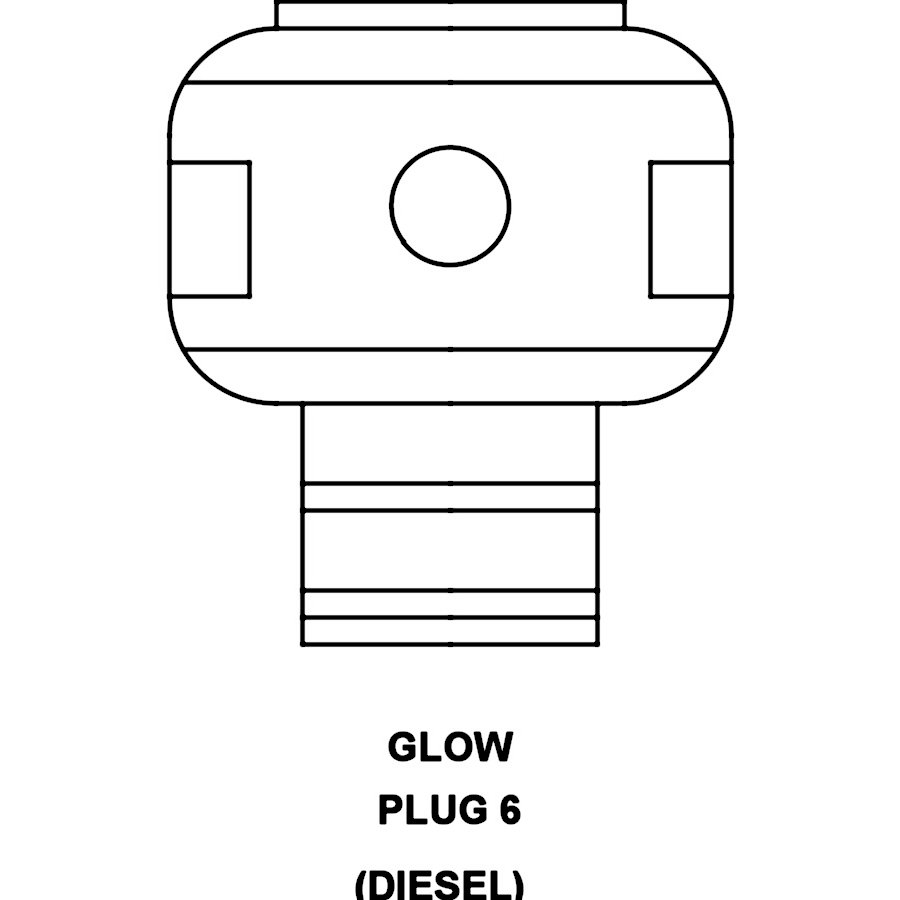

Glow Plug 6


Component ID: 193
Component : GLOW PLUG 6

Connector:
Name : GLOW PLUG 6
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 - 1517 12BK/GY
