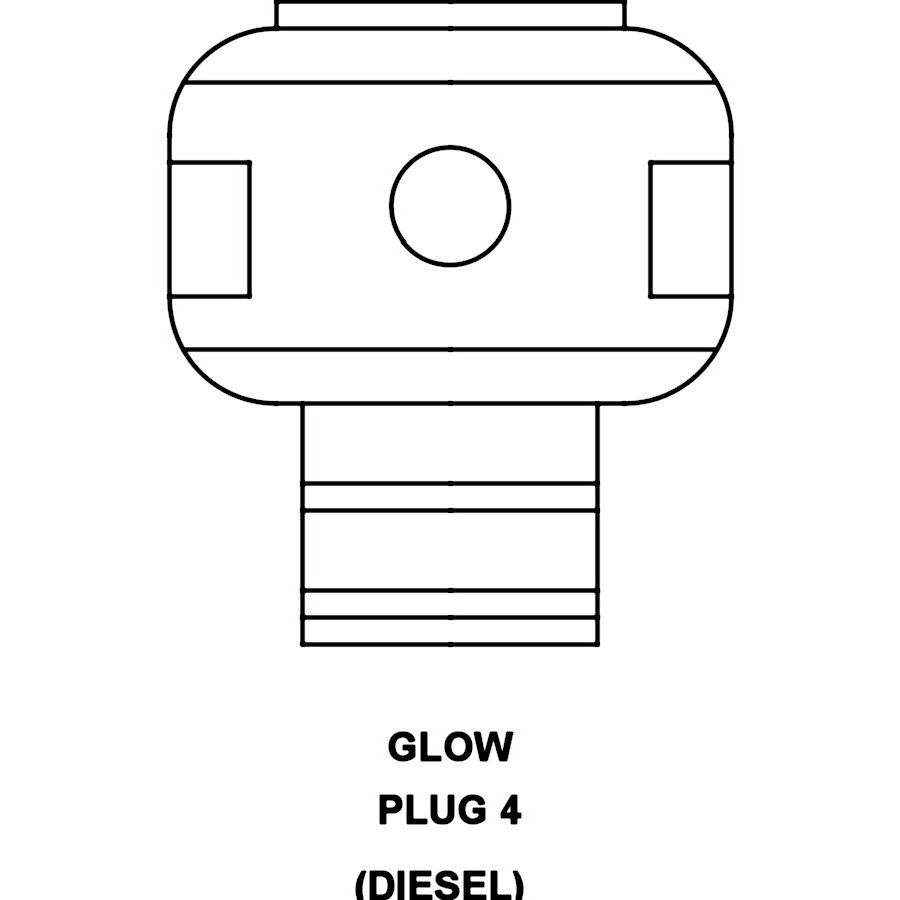

Glow Plug 4


Component ID: 191
Component : GLOW PLUG 4

Connector:
Name : GLOW PLUG 4
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 - 118 12BK/VT
