Glow Plug 2


Component ID: 189

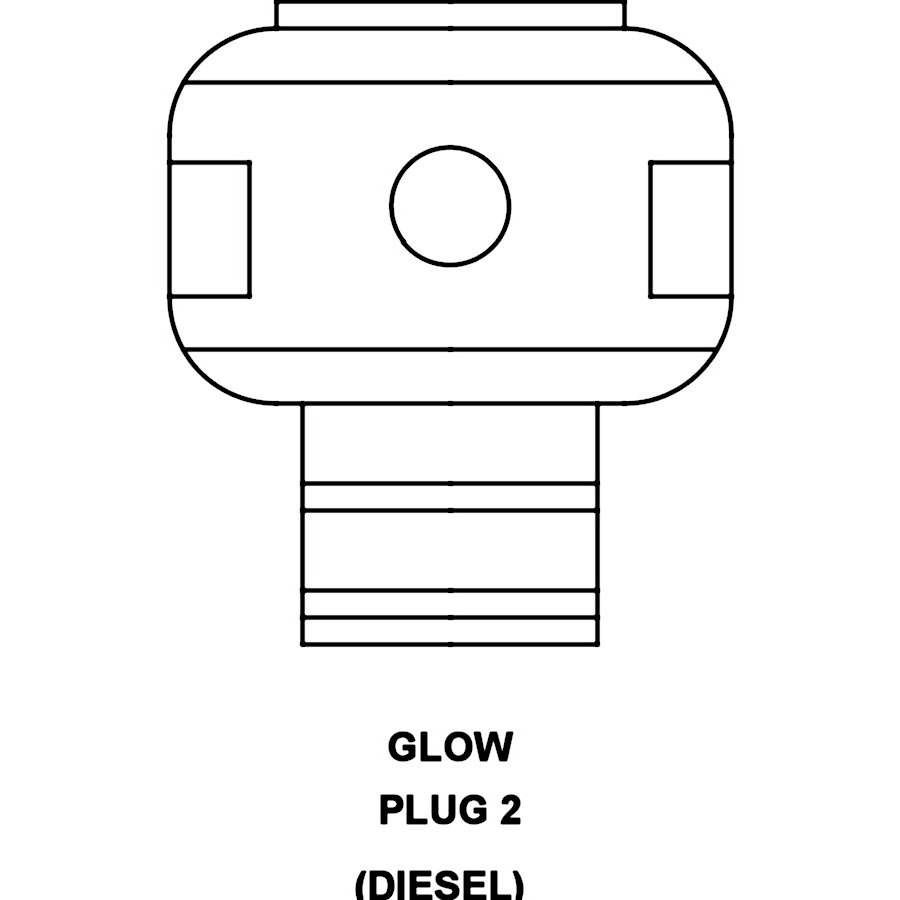

Component : GLOW PLUG 2

Connector:
Name : GLOW PLUG 2
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 - 115 12BK/YL
