Installation






INSTALLATION

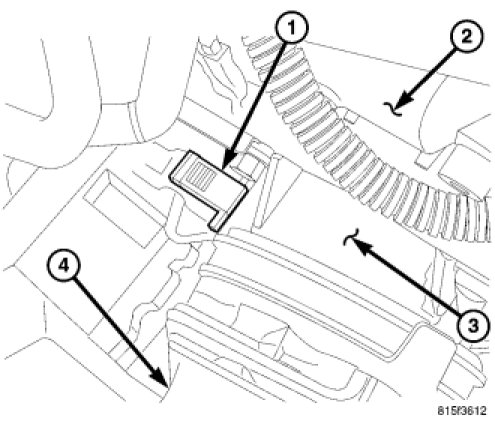

1. Position the intake air temperature sensor along side of the air control valve extention (3) access hole.
2. Press together the sensor (1) locking tabs, seat the sensor (1) to the extention (3) and release tabs.
3. Connect negative battery cable.
