Installation






INSTALLATION

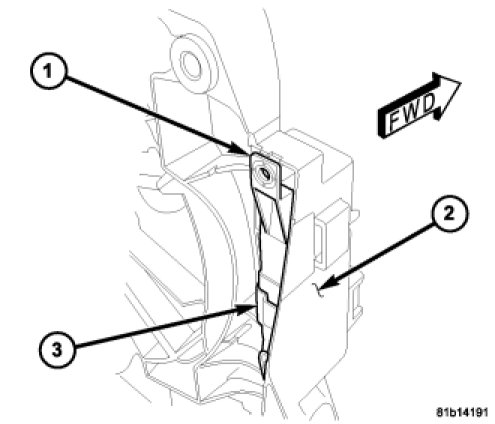

1. Position the condenser fan relay (1) to the condenser fan shroud (2) and connect the wire harness connector (3).
2. Install the condenser fan relay into the back of the condenser fan shroud.
3. Install the A/C condenser fan assembly.
4. Reconnect the negative battery terminal.
