System Diagram

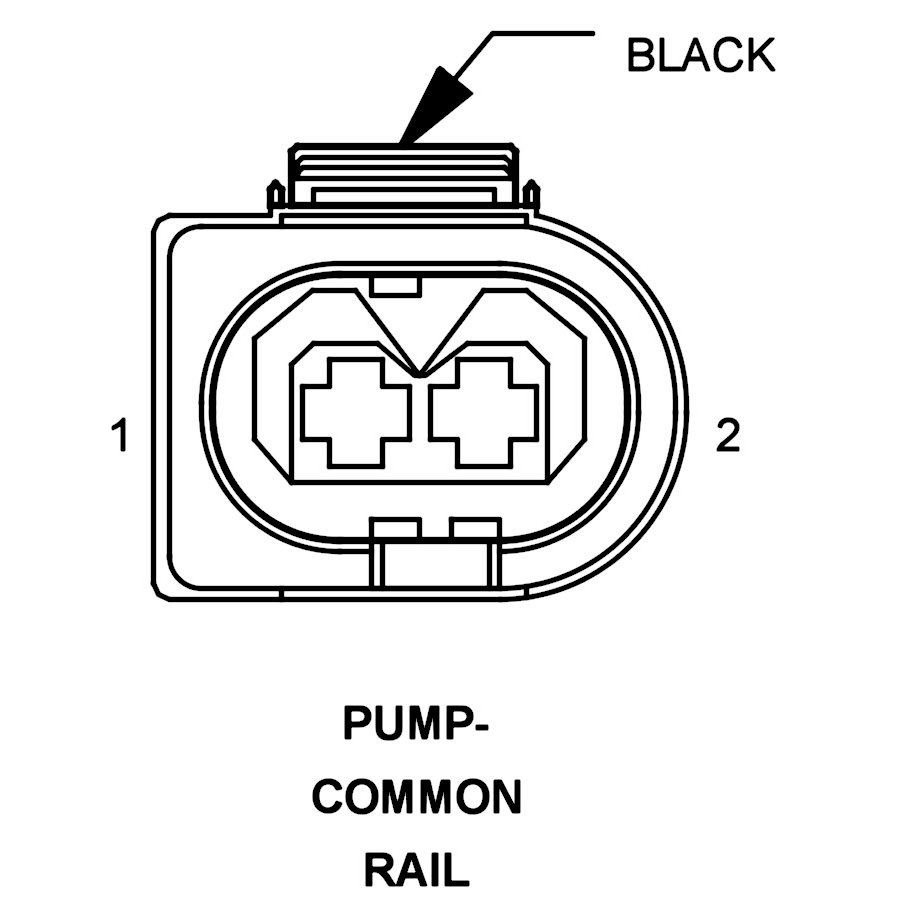

Component ID: 299
Component : PUMP-COMMON RAIL

Connector:
Name : PUMP-COMMON RAIL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 - 1323 18DG/VT
2 - 1322 18DB/DG
