Grille: Service and Repair

Remove/install front grille

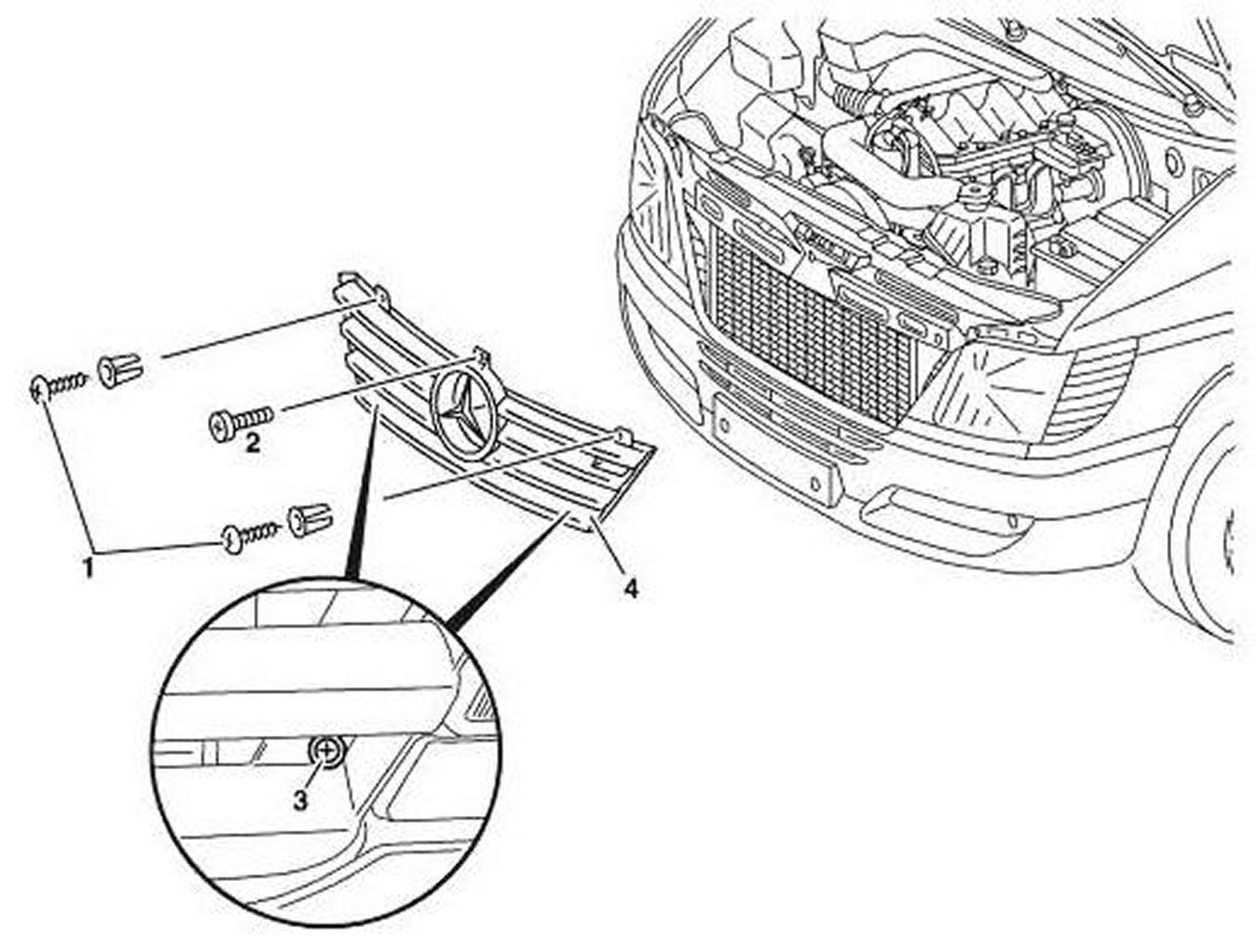

MODEL 901.6, 902.6, 903.6, 904.6 up to model year 2003

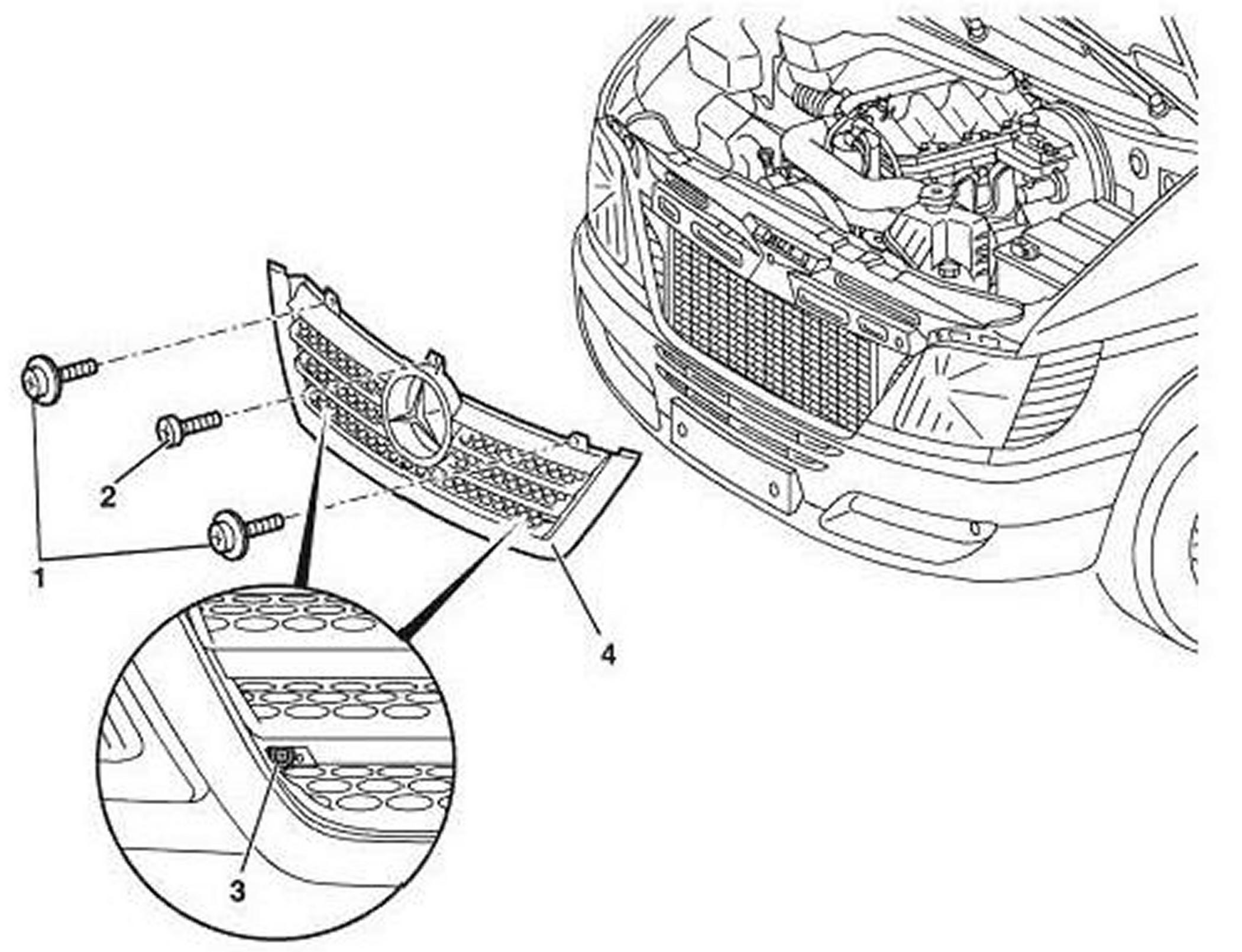

MODEL 901.6, 902.6, 903.6, 904.6 as of model year 2003

1 Bolt
2 Bolt
3 Bolt
4 Front grille




Remove/Install

1 Take off screw (1) on left and right
2 Slacken screw (3) Do not remove.
3 Unscrew screw (2)
4 Lift front grille (4) up and out
5 Install in the reverse order
Observe gap all the way round.
