Piston Diameter: Check

NOTE: Refer to SPECIFICATIONS .

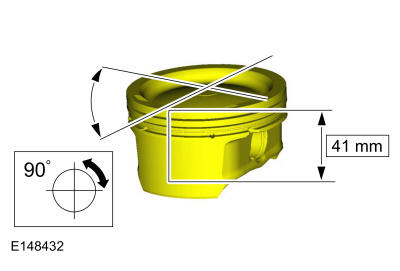

  1. Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
GFD770539Courtesy of FORD MOTOR COMPANY
