Power Door Window Initialization

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Initialization

1. WARNING: Keep objects and body parts clear of the glass panel when carrying out the initialization procedure. During the initialization procedure, the glass panel closes with high force and cannot detect objects in its path. Failure to follow this instruction may result in serious personal injury.
   NOTE: Make sure that the window runs are correctly installed and free of foreign material.
   NOTE: If the power to a window regulator motor has been disconnected, it is necessary to initialize that window regulator motor.
   NOTE: Wait for a minimum of 1 minute before connecting the battery, fuse or electrical connector.

   Start the engine.

2. Lift and hold the window control switch until the door window is fully closed.

   Courtesy of FORD MOTOR COMPANY

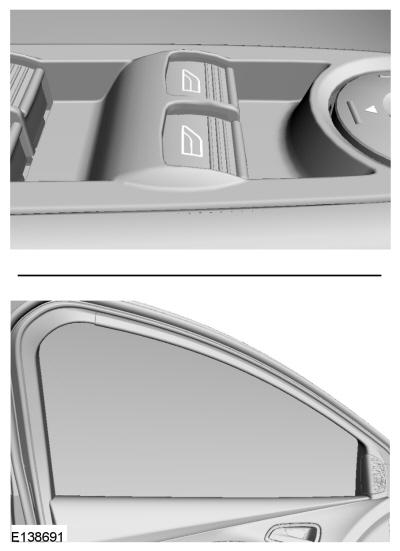

3. Release the window control switch.

   Courtesy of FORD MOTOR COMPANY

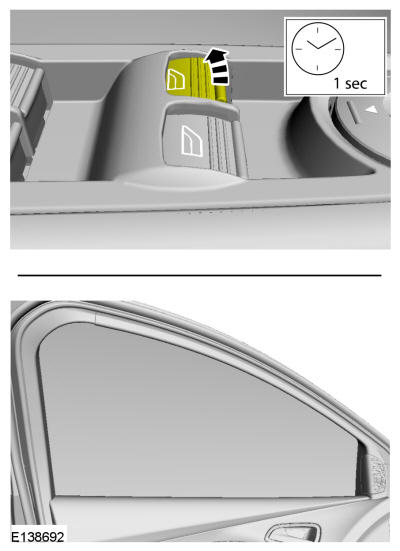

4. Lift and hold the window control switch again for at least one second.

   Courtesy of FORD MOTOR COMPANY

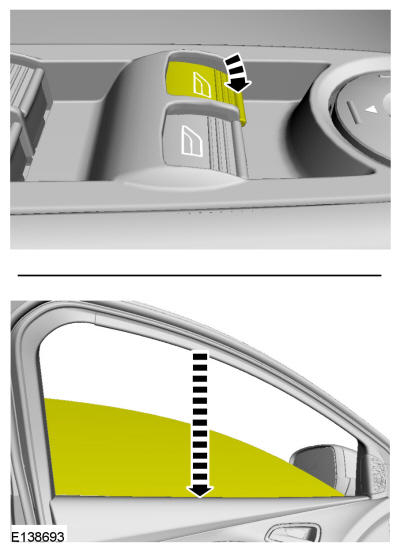

5. Press and hold the window control switch until the door window is fully open.

   Courtesy of FORD MOTOR COMPANY

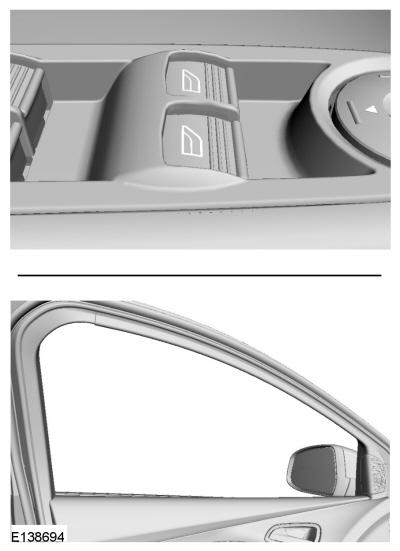

6. Release the window control switch.

   Courtesy of FORD MOTOR COMPANY

7. Lift and hold the window control switch until the window is fully closed.

   Courtesy of FORD MOTOR COMPANY

8. Release the window control switch and test for correct window operation by carrying out the one-touch down and one-touch up features.

Courtesy of FORD MOTOR COMPANY
