Connector Repair Procedures

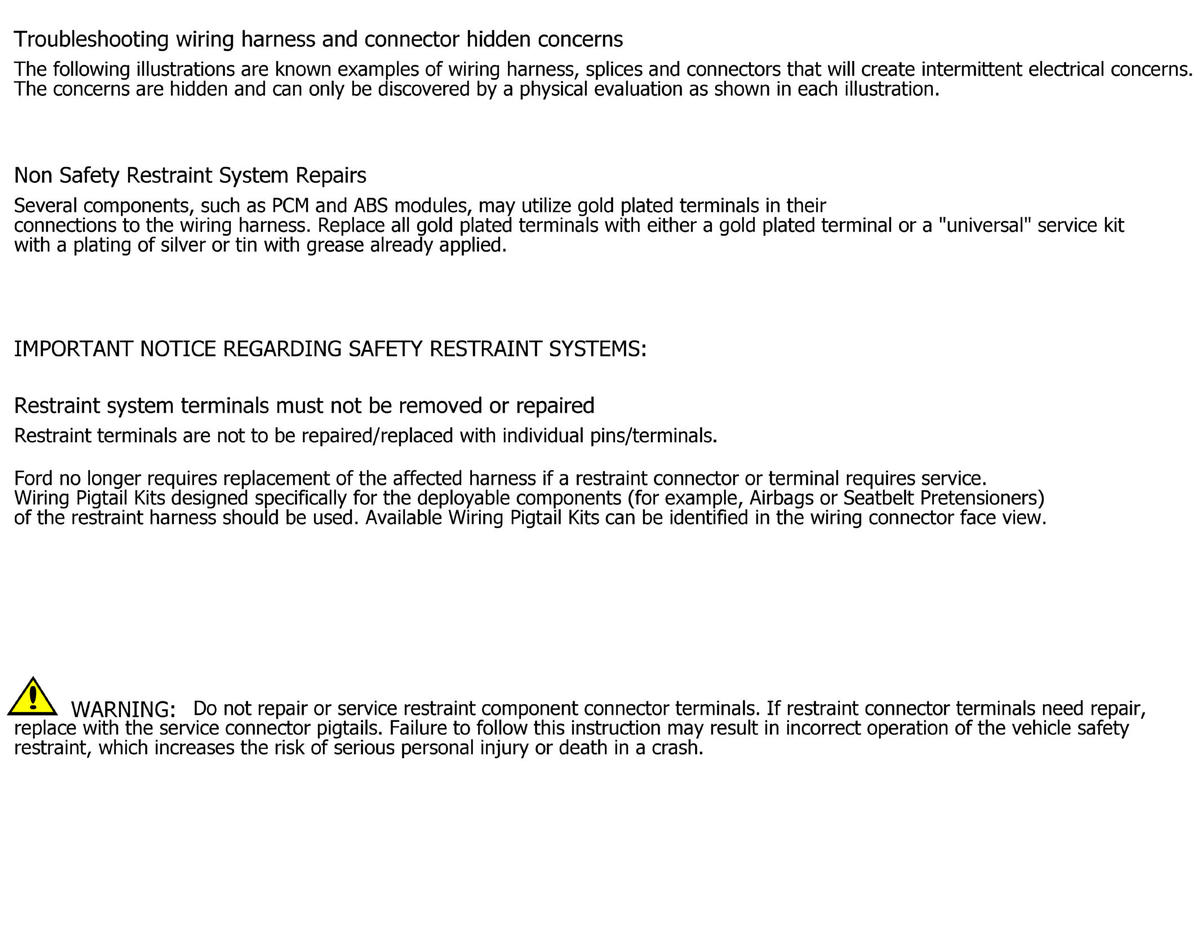

GFDWR181661Courtesy of FORD MOTOR COMPANY

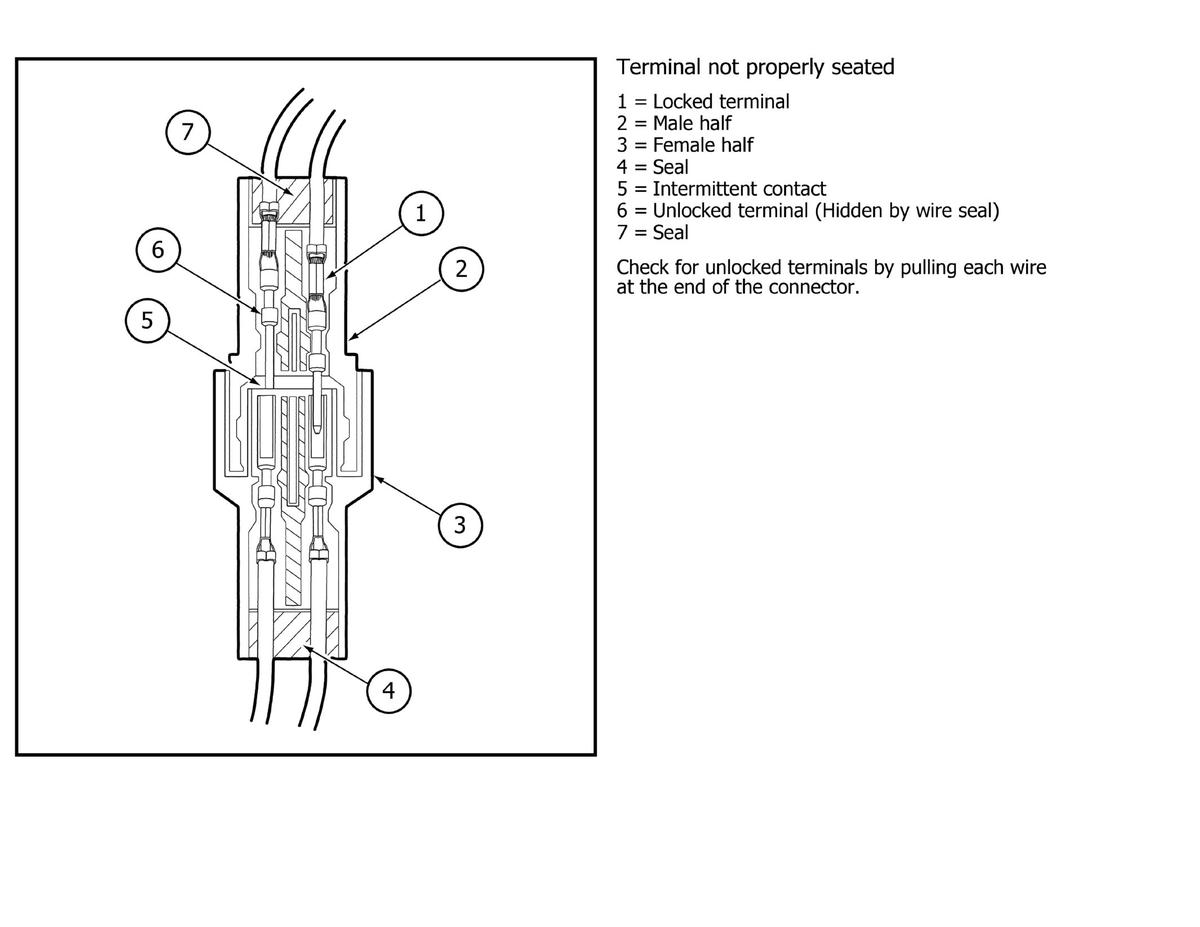

GFDWR181662Courtesy of FORD MOTOR COMPANY

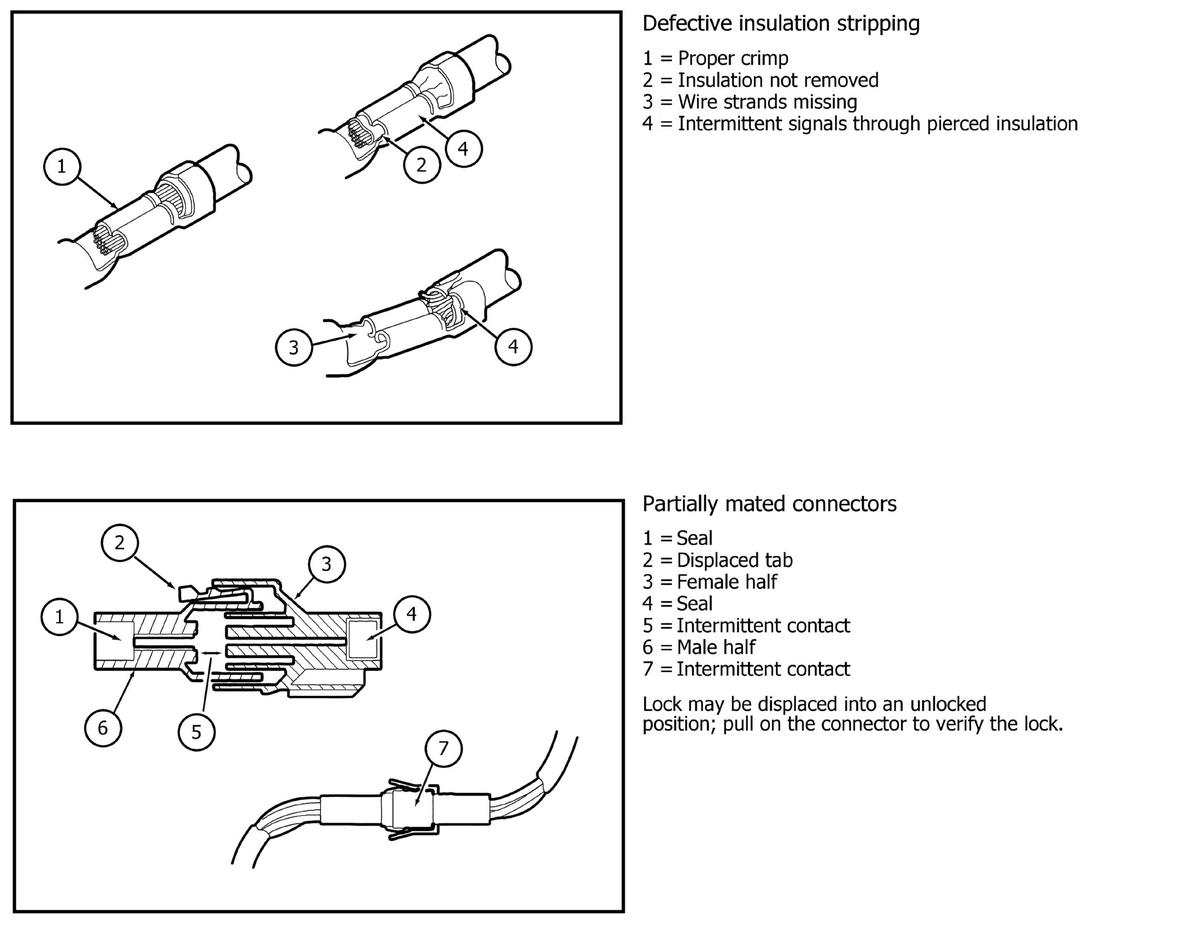

GFDWR181663Courtesy of FORD MOTOR COMPANY

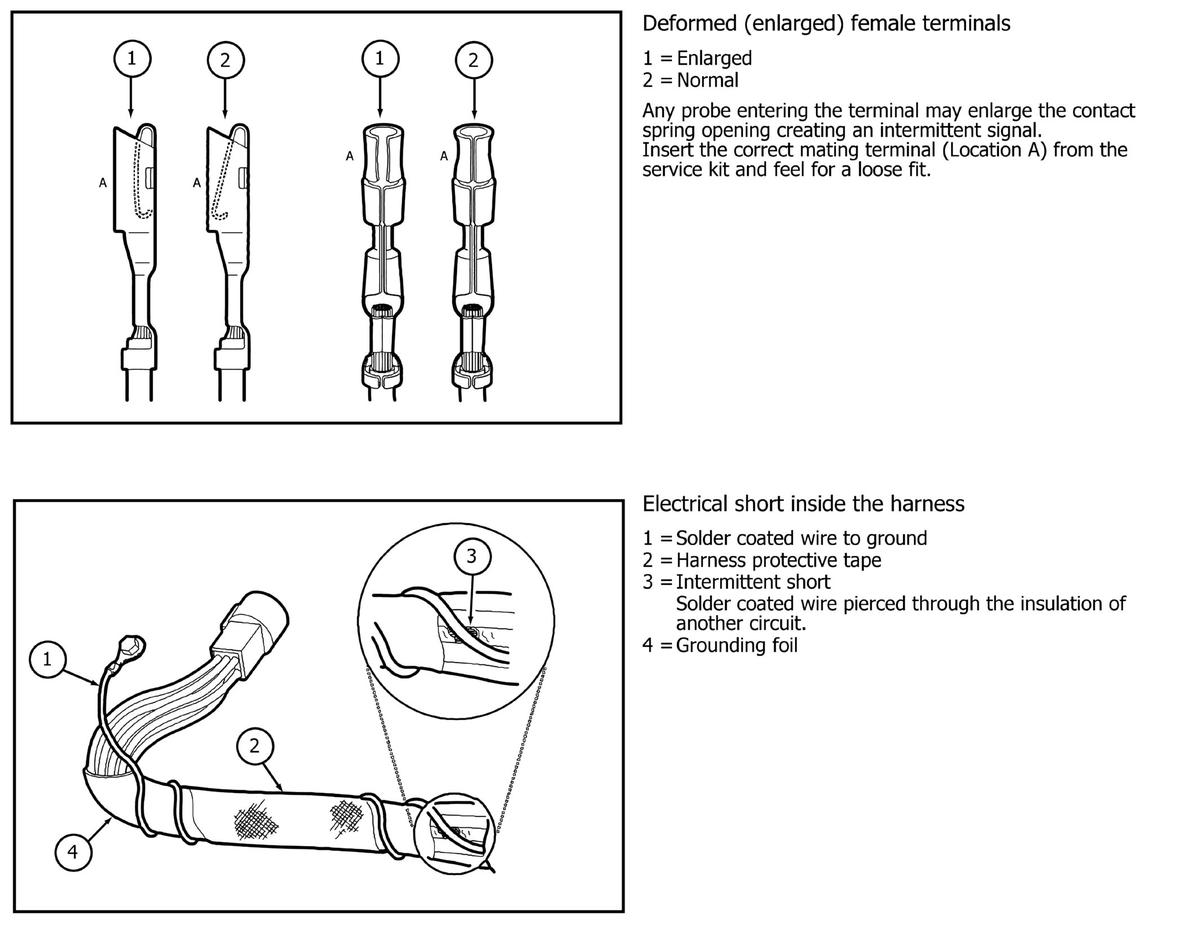

GFDWR181664Courtesy of FORD MOTOR COMPANY

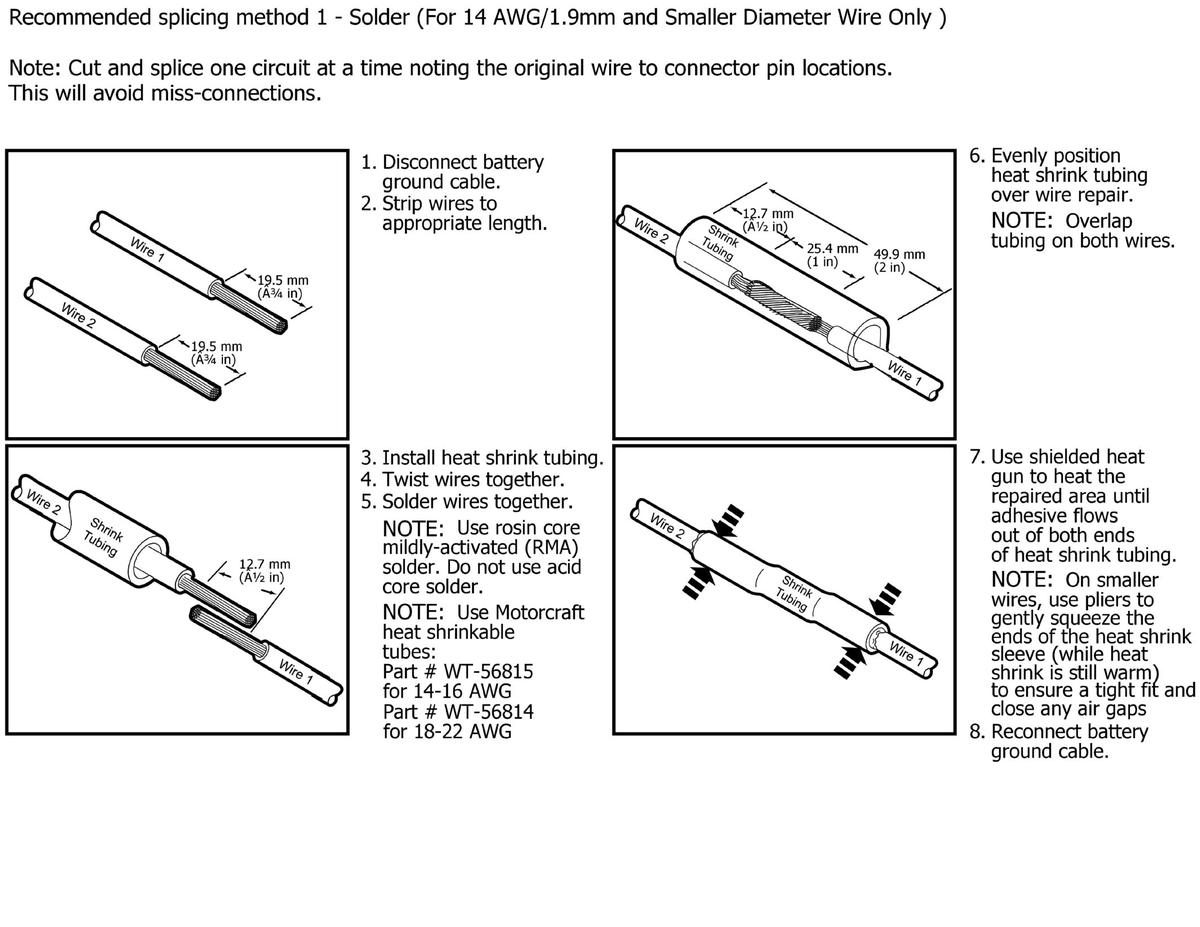

GFDWR181665Courtesy of FORD MOTOR COMPANY

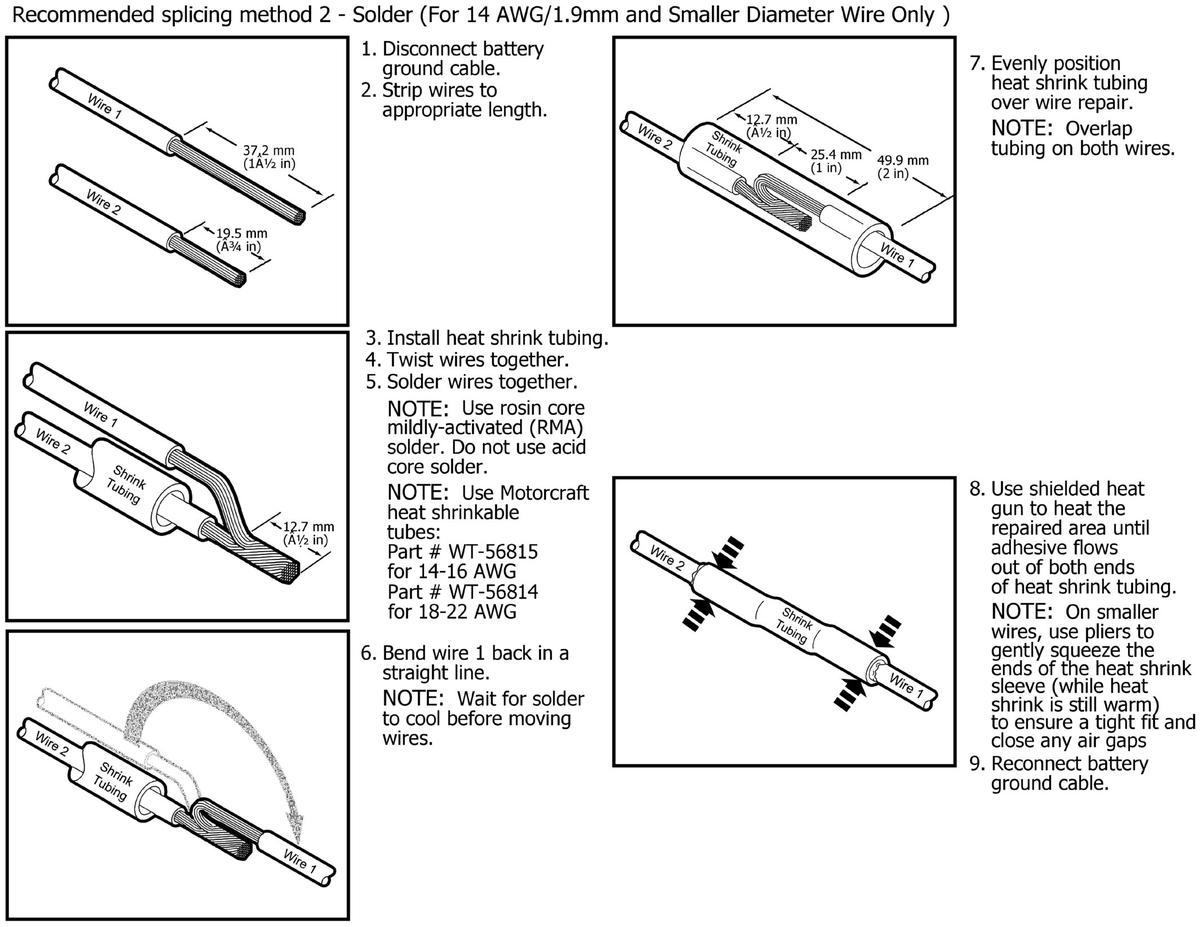

GFDWR181666Courtesy of FORD MOTOR COMPANY

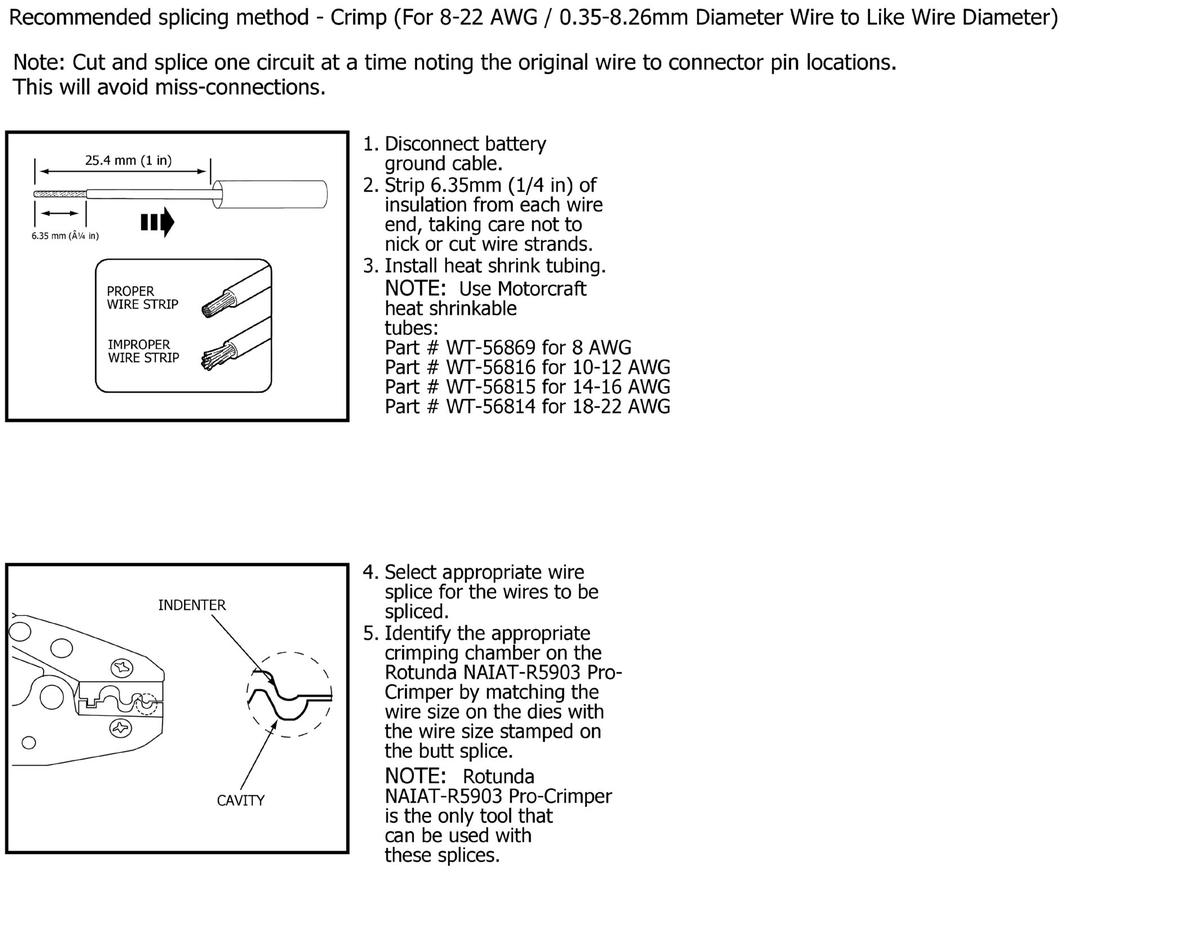

GFDWR181667Courtesy of FORD MOTOR COMPANY

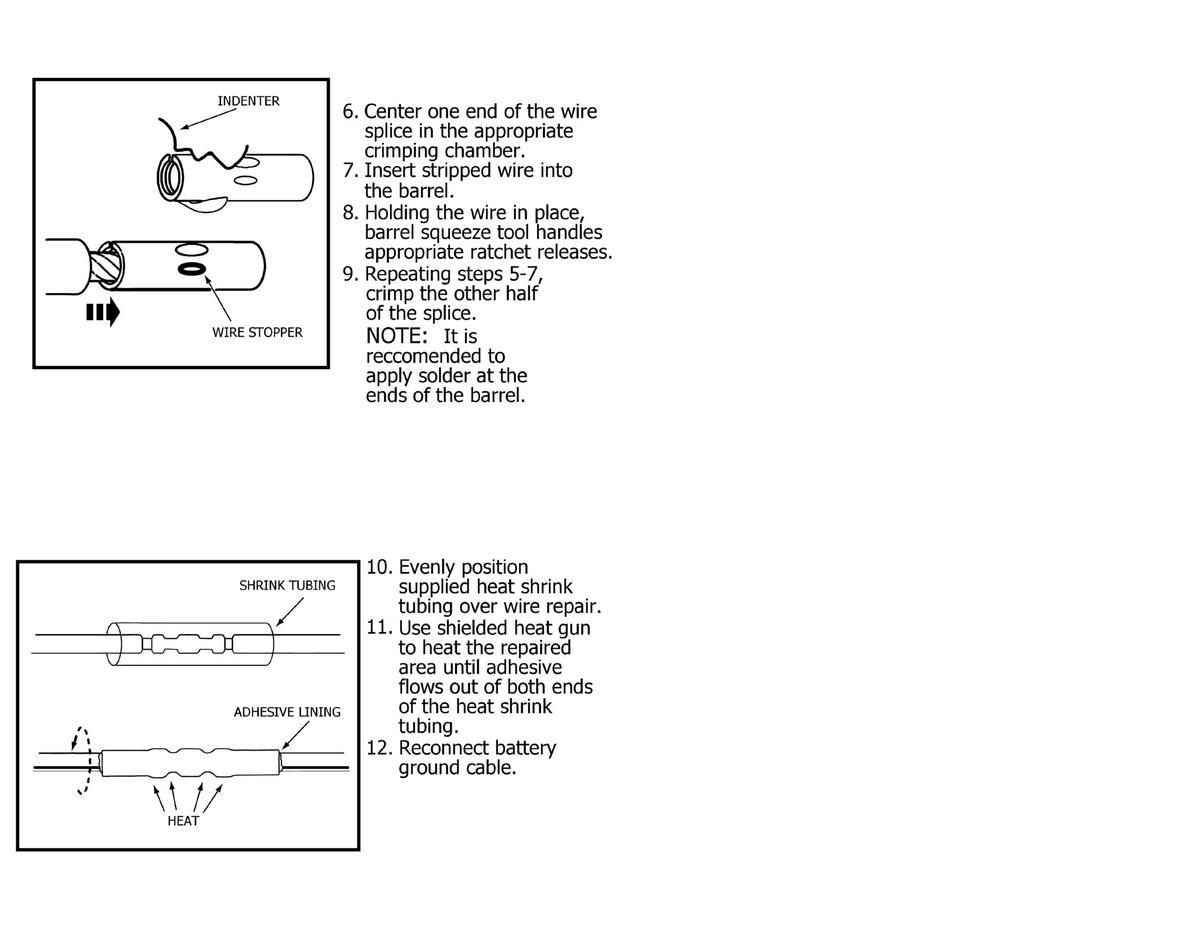

GFDWR181668Courtesy of FORD MOTOR COMPANY

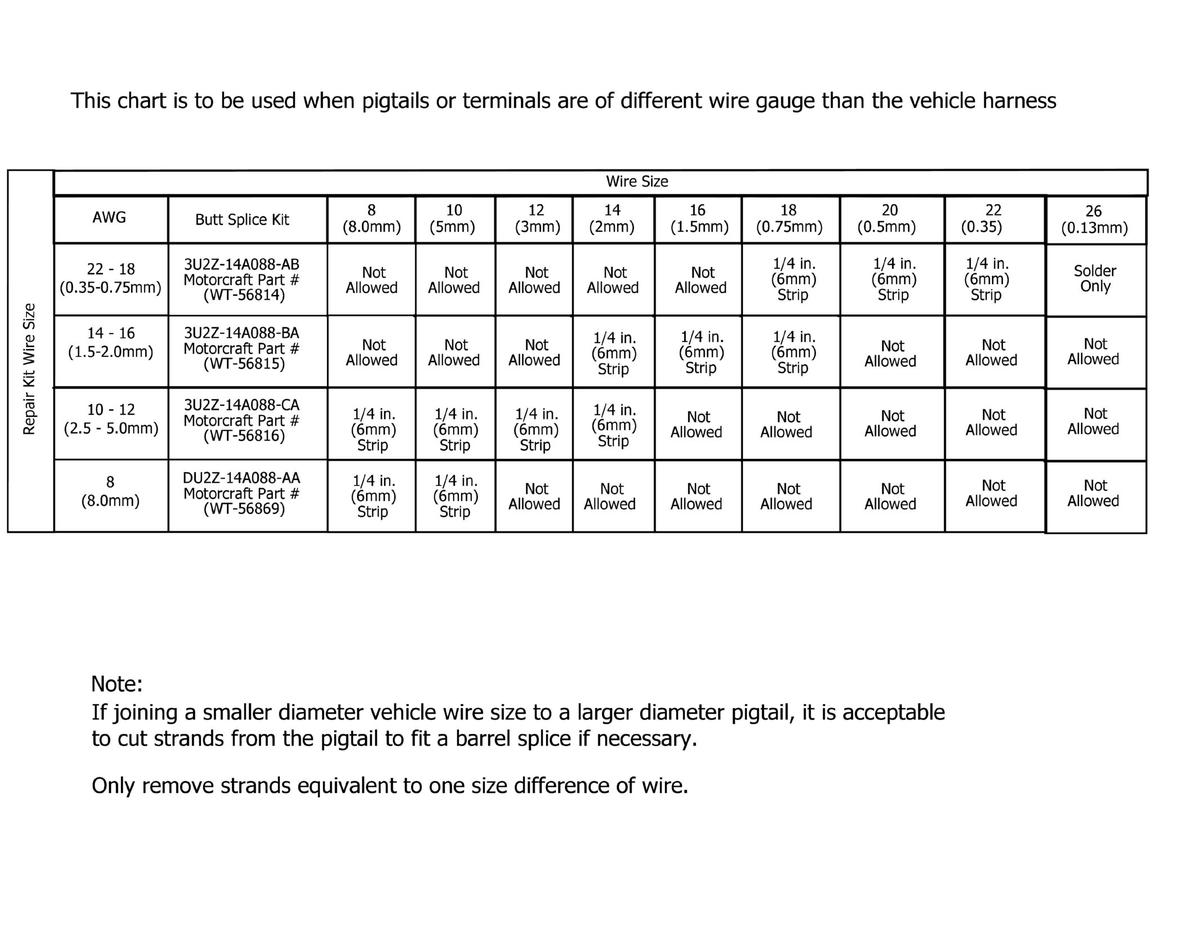

GFDWR181669Courtesy of FORD MOTOR COMPANY
