Transfer Case Draining and Filling: Filling

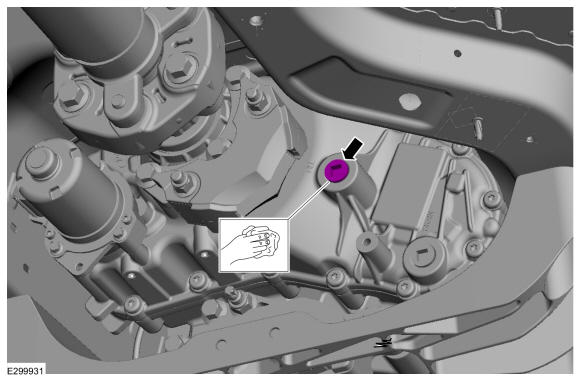

1. 1. Clean the fill plug and the area around fill plug. Remove the fill plug.
   2. Fill the transfer case fluid. Refer to: Specifications .
   3. Install the fill plug.

      Torque: 142 lb.in (16 Nm)
