Section 292 (OEM Connector Repair Procedures)
>>

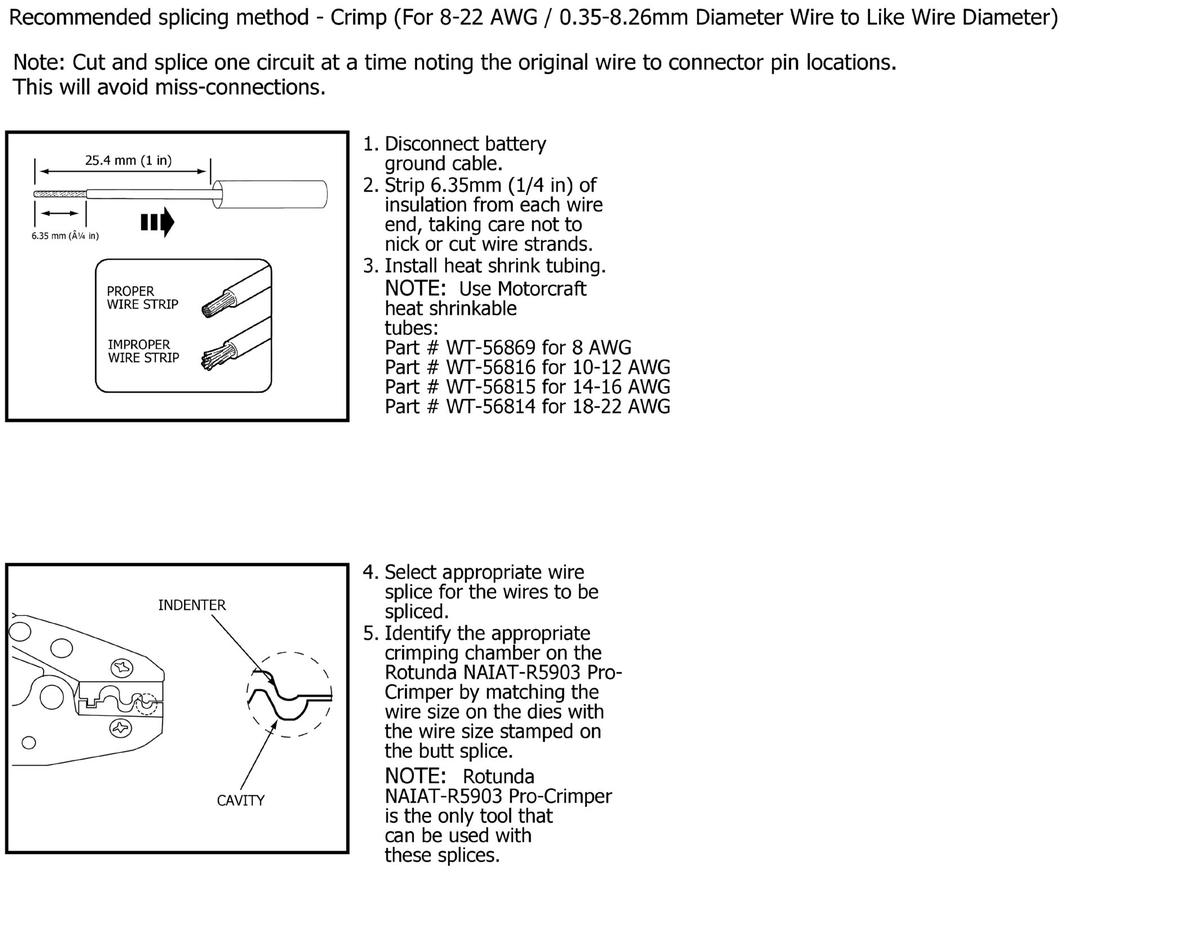

Connector Repair Procedures
Connector Repair Procedures
WARNING:
This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
