Connector Repair Procedures

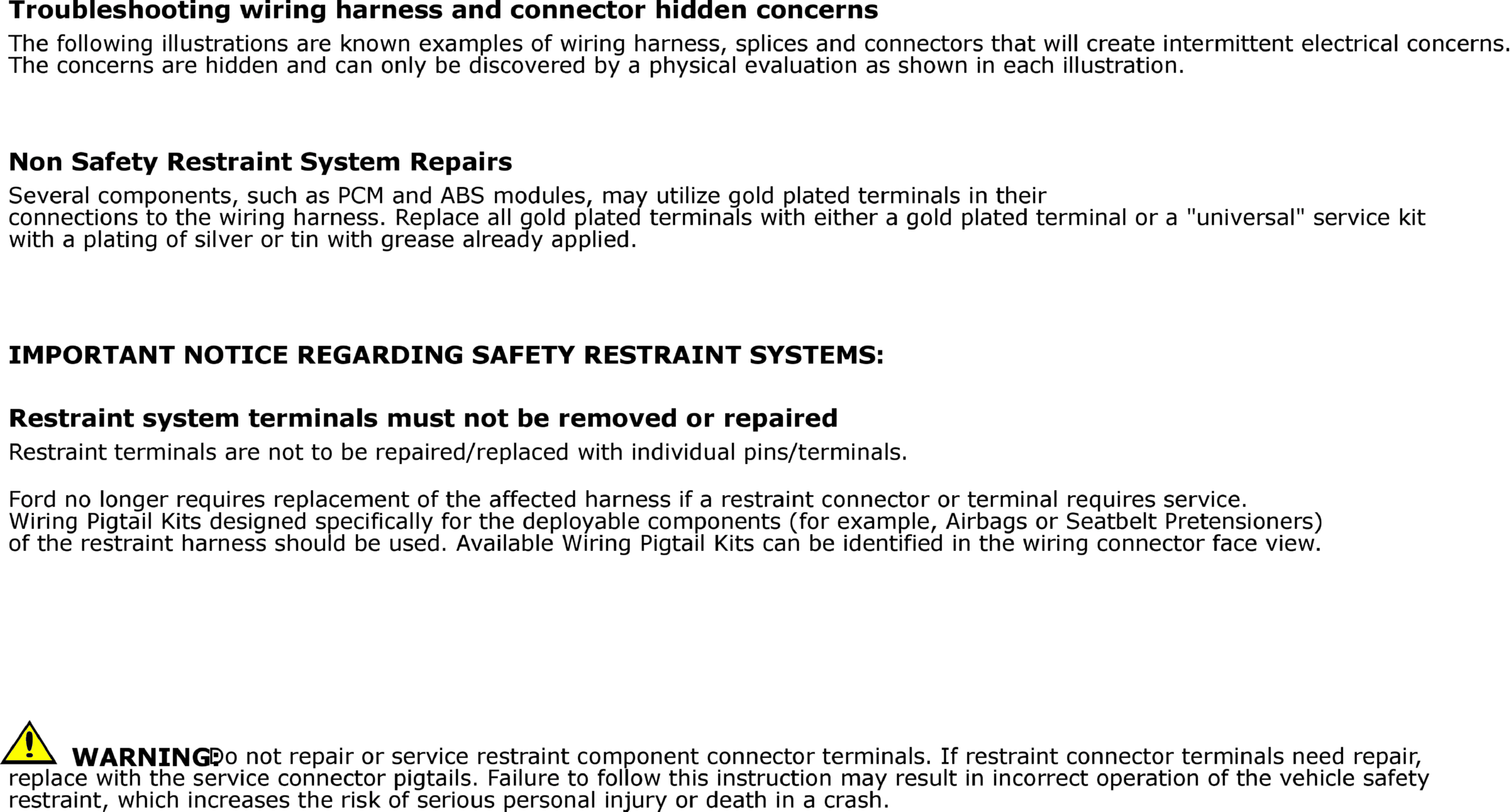

GFDW54857Courtesy of FORD MOTOR COMPANY

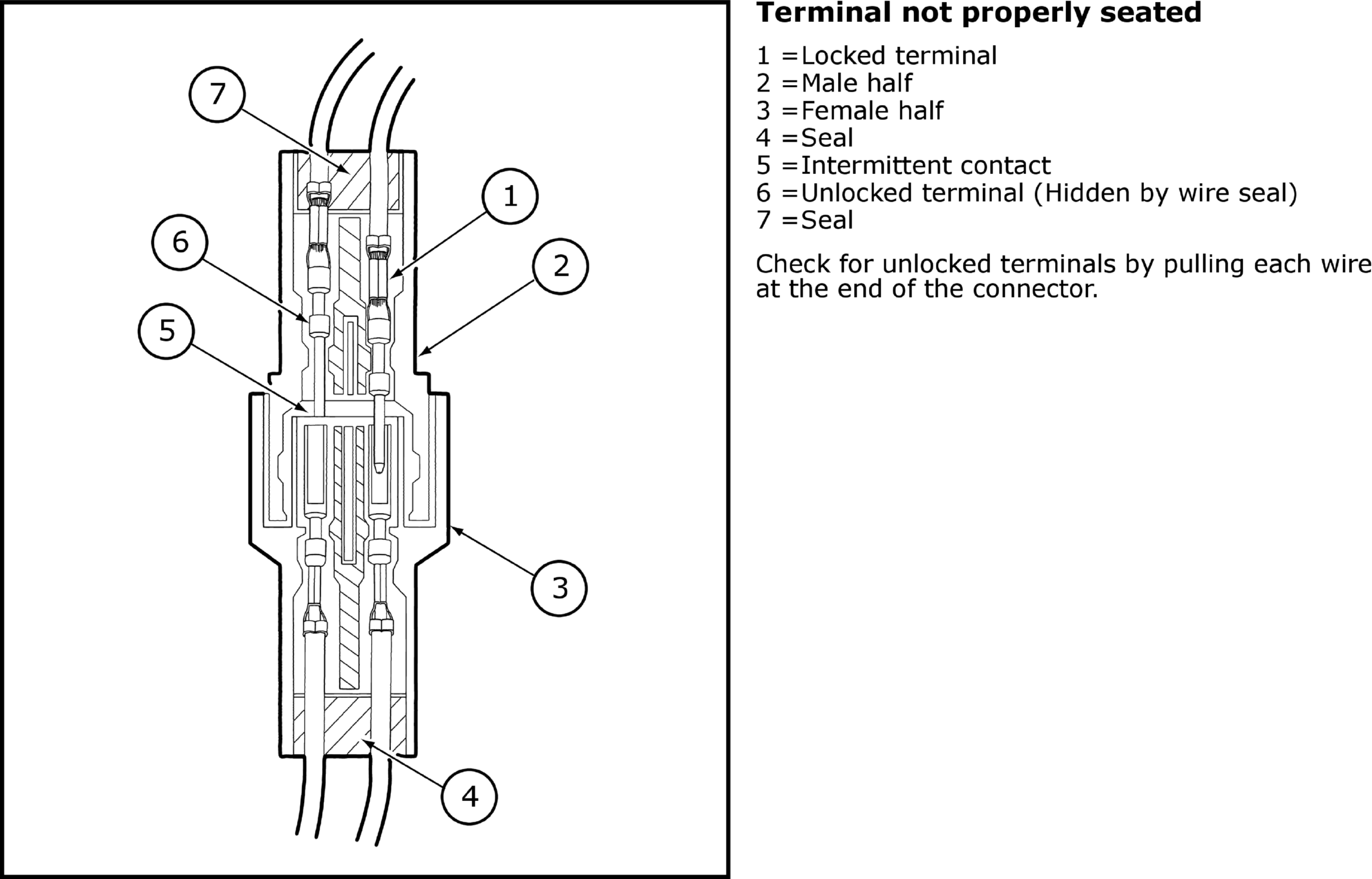

GFDW54858Courtesy of FORD MOTOR COMPANY

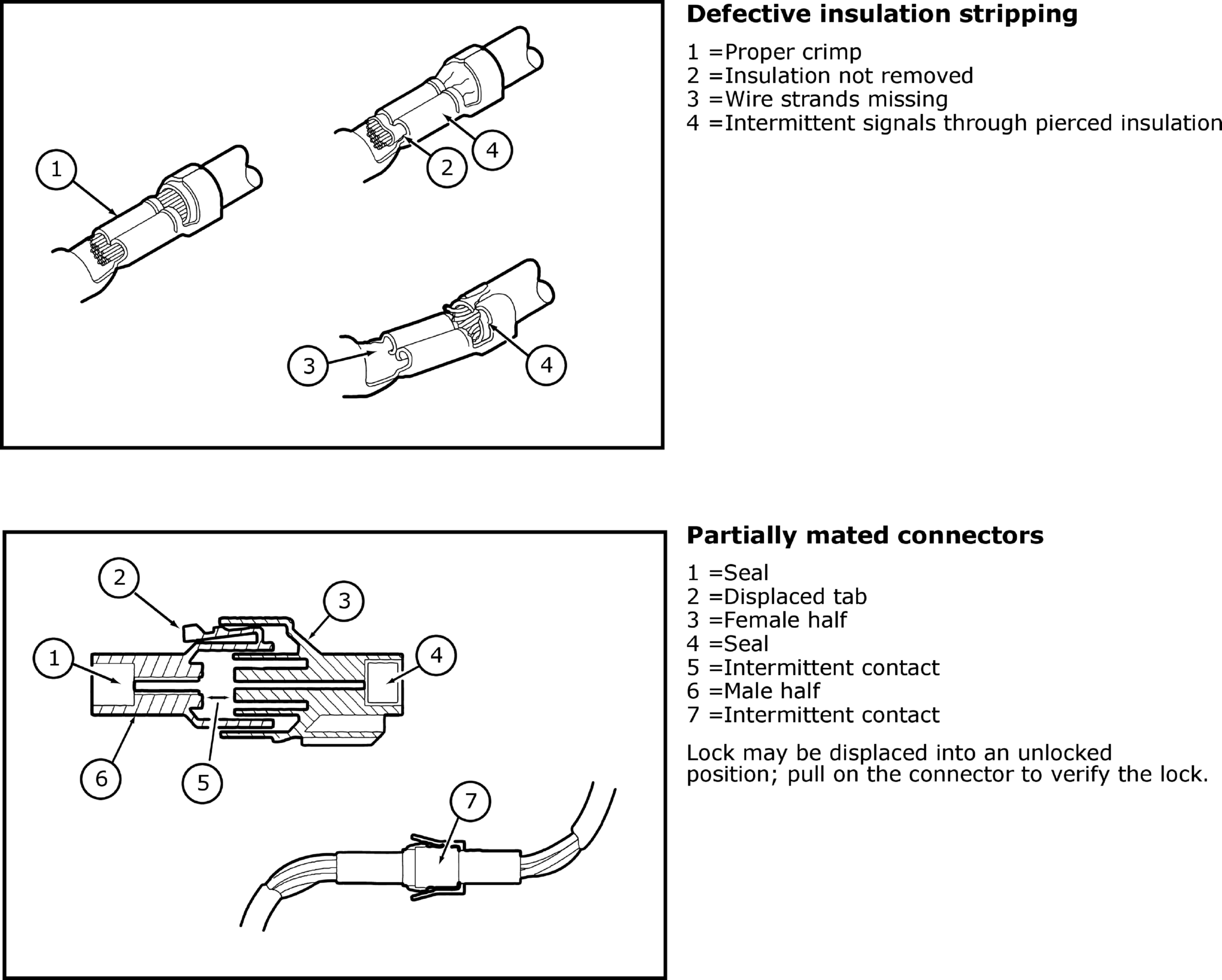

GFDW54859Courtesy of FORD MOTOR COMPANY

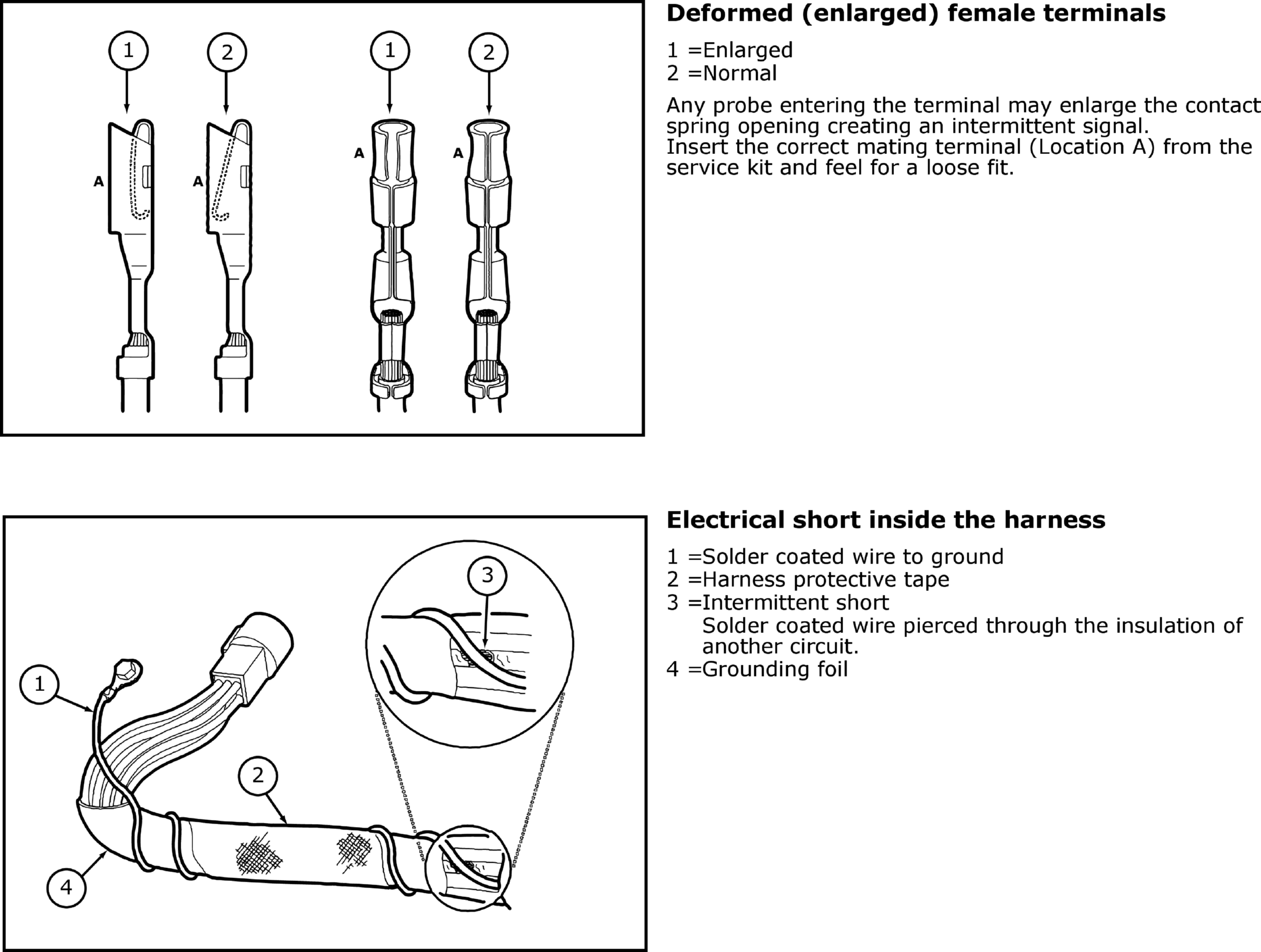

GFDW54860Courtesy of FORD MOTOR COMPANY

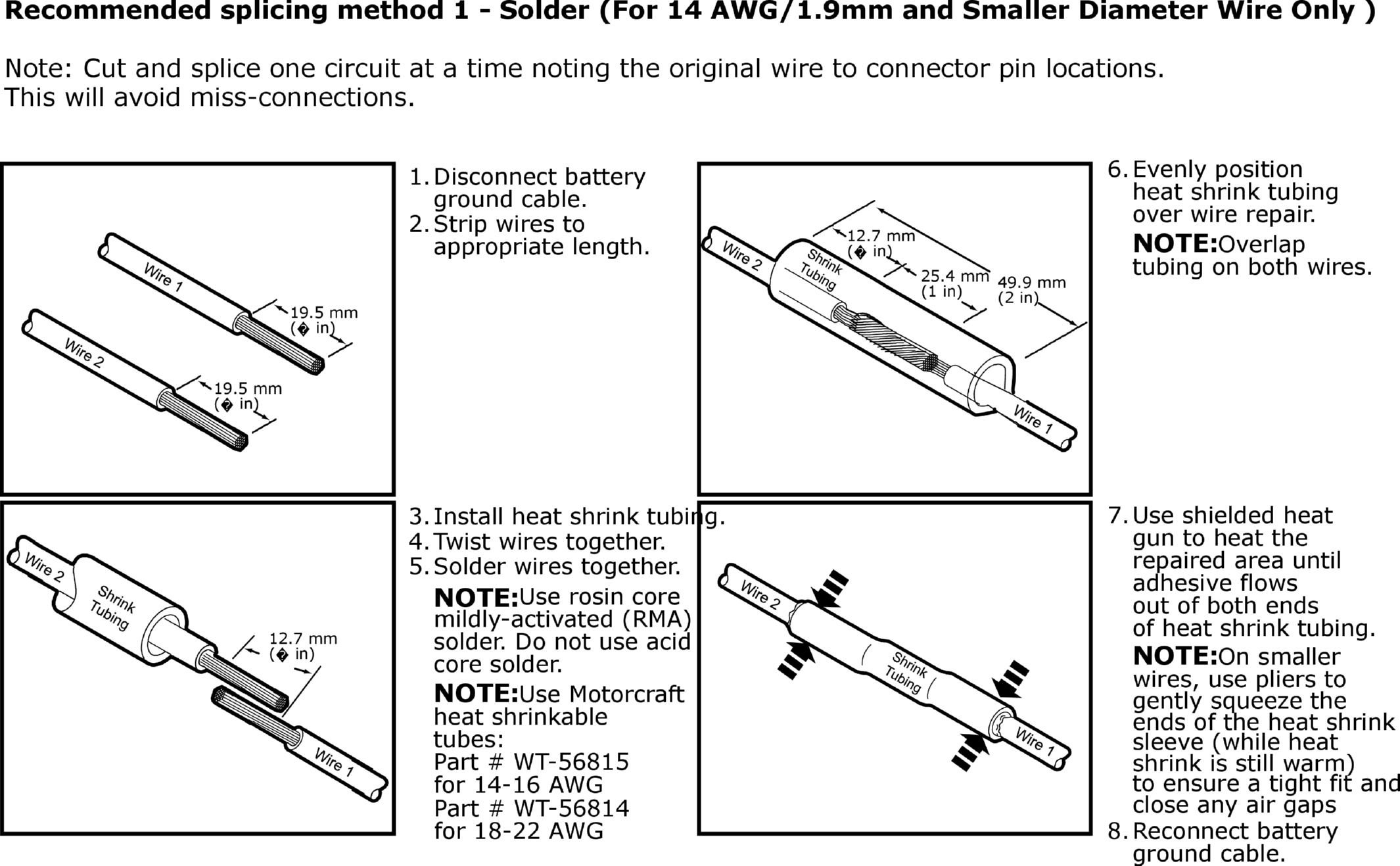

GFDW54861Courtesy of FORD MOTOR COMPANY

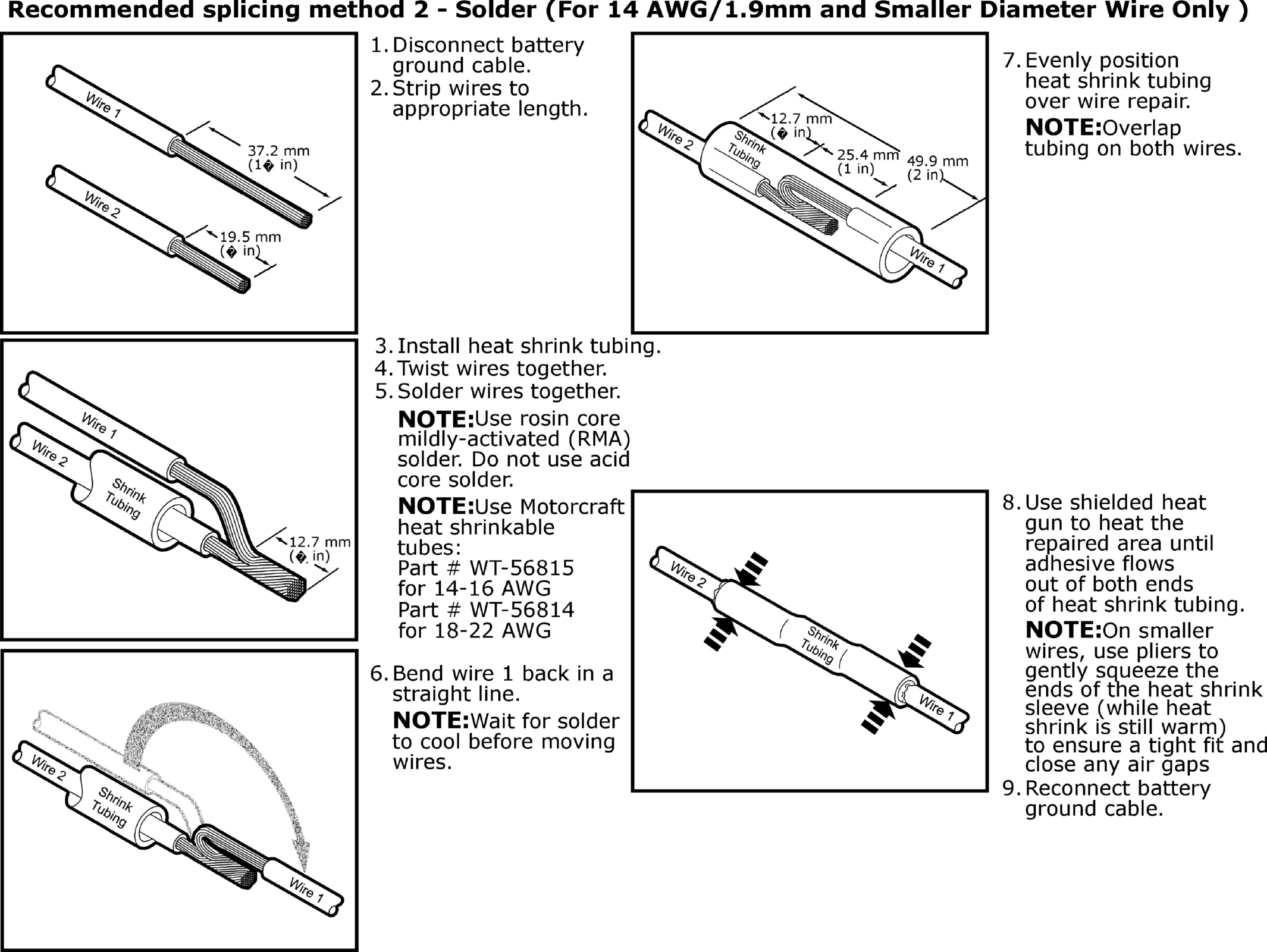

GFDW54862Courtesy of FORD MOTOR COMPANY

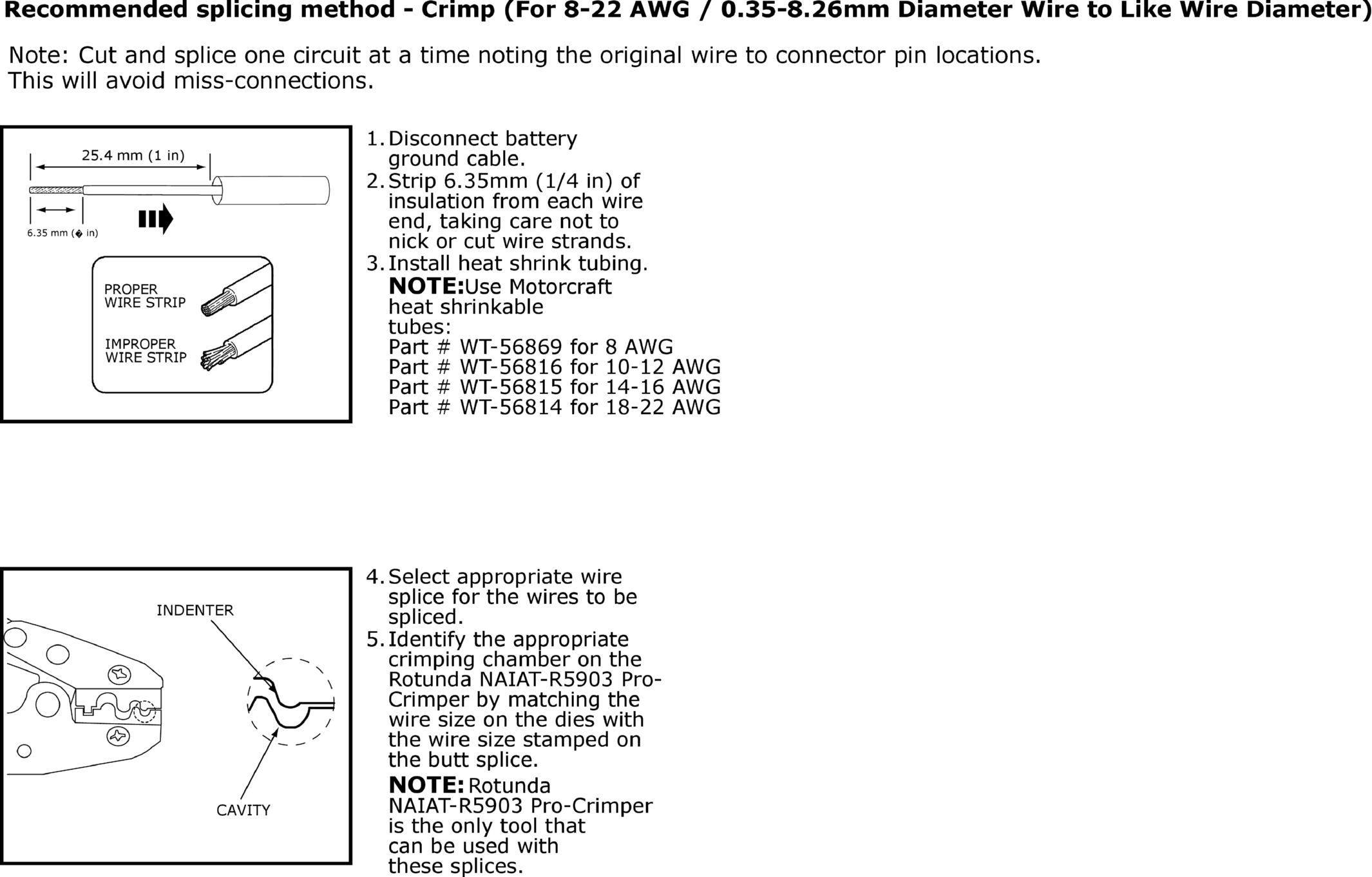

GFDW54863Courtesy of FORD MOTOR COMPANY

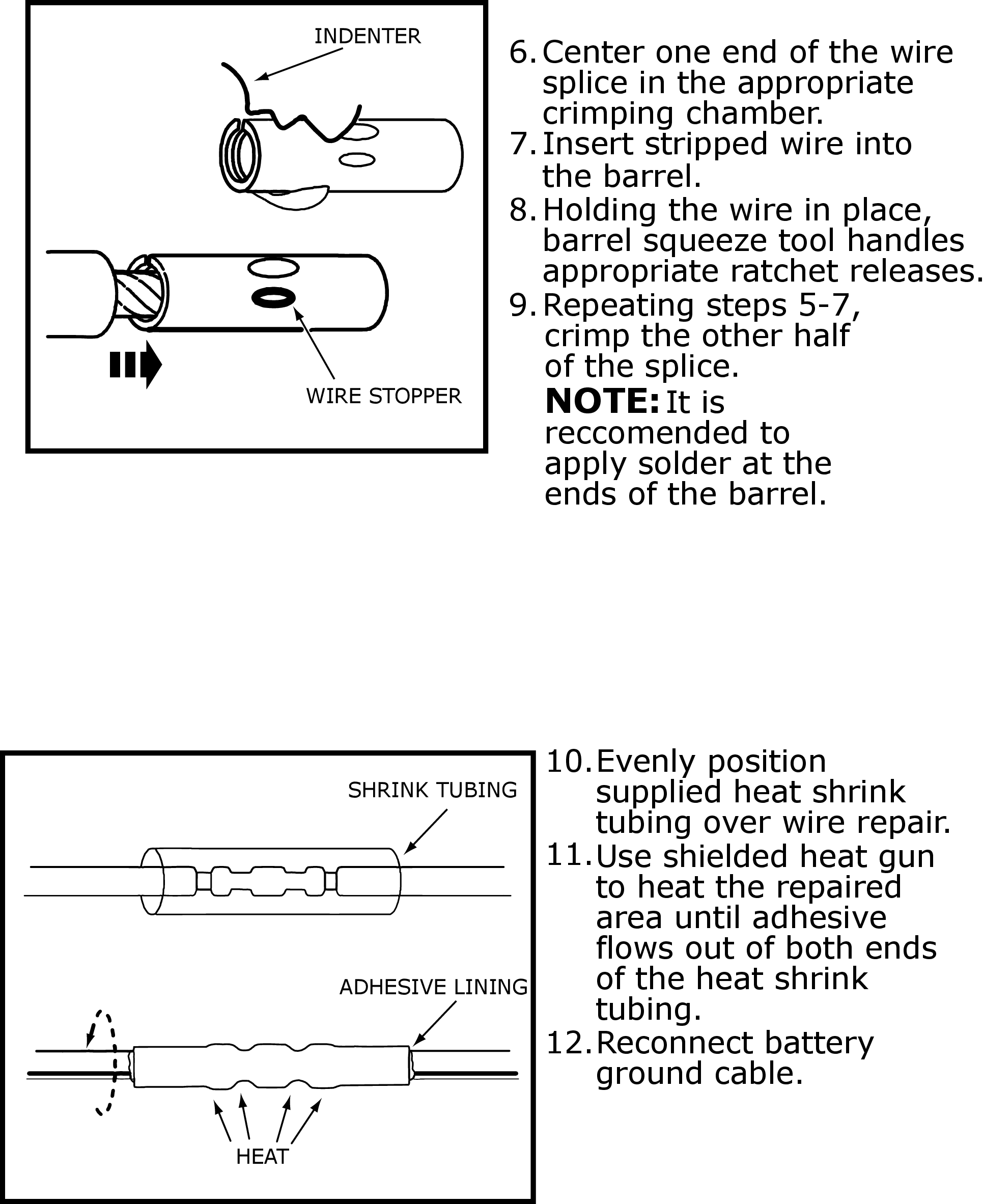

GFDW54864Courtesy of FORD MOTOR COMPANY

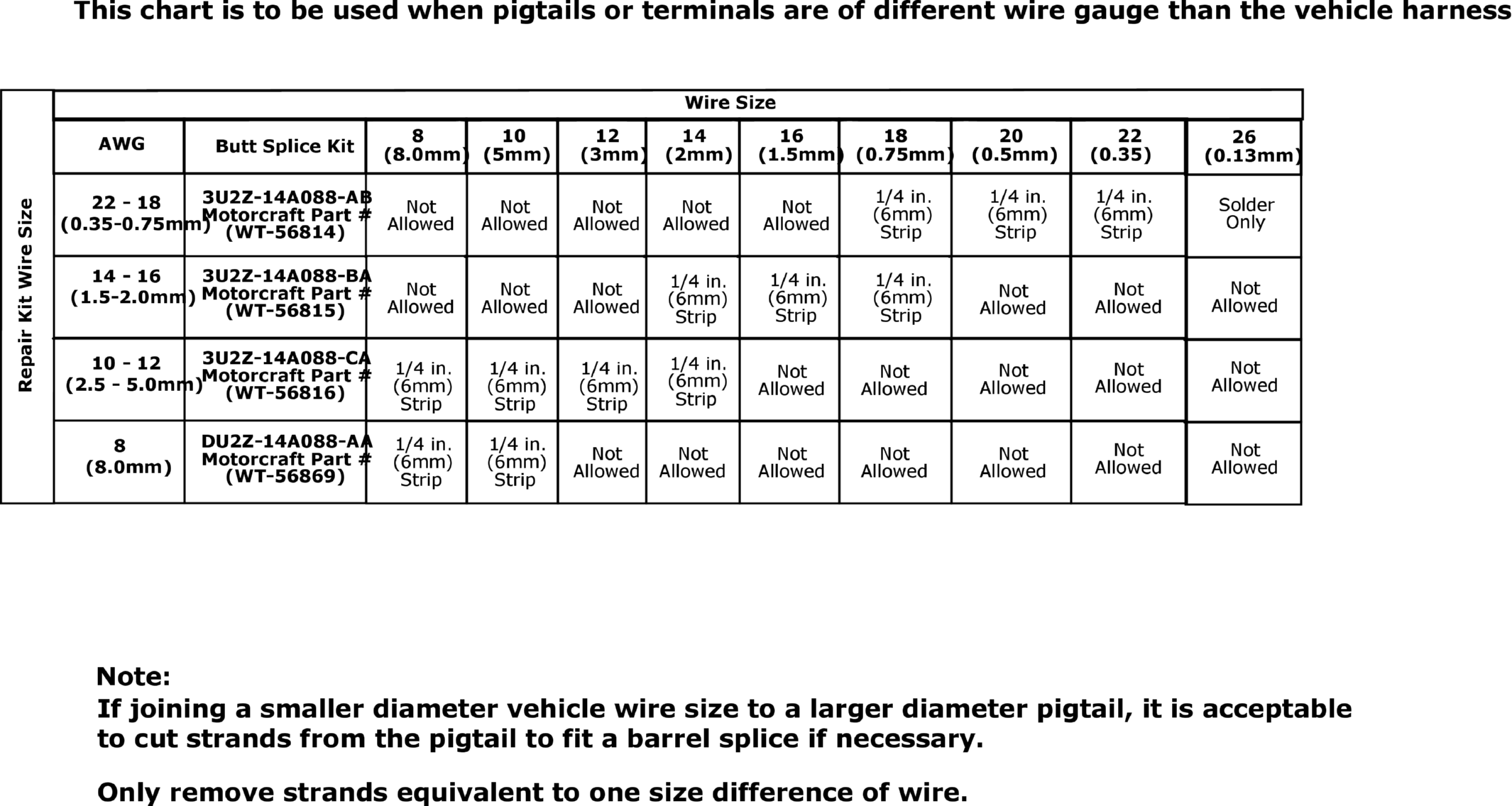

GFDW54865Courtesy of FORD MOTOR COMPANY
